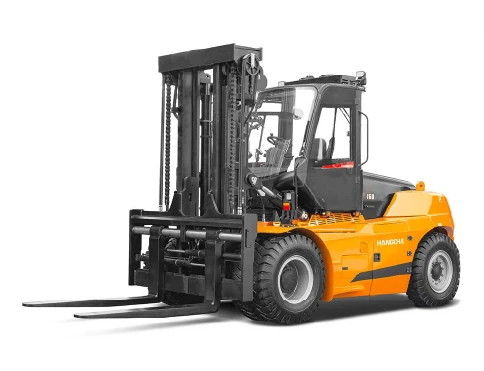

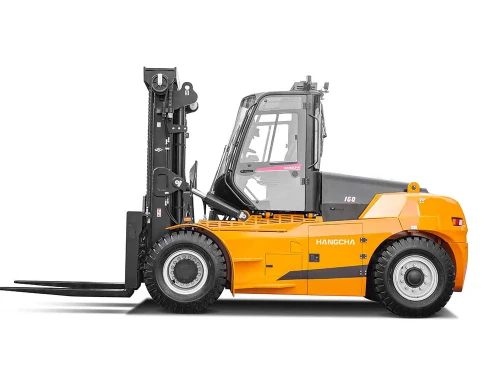

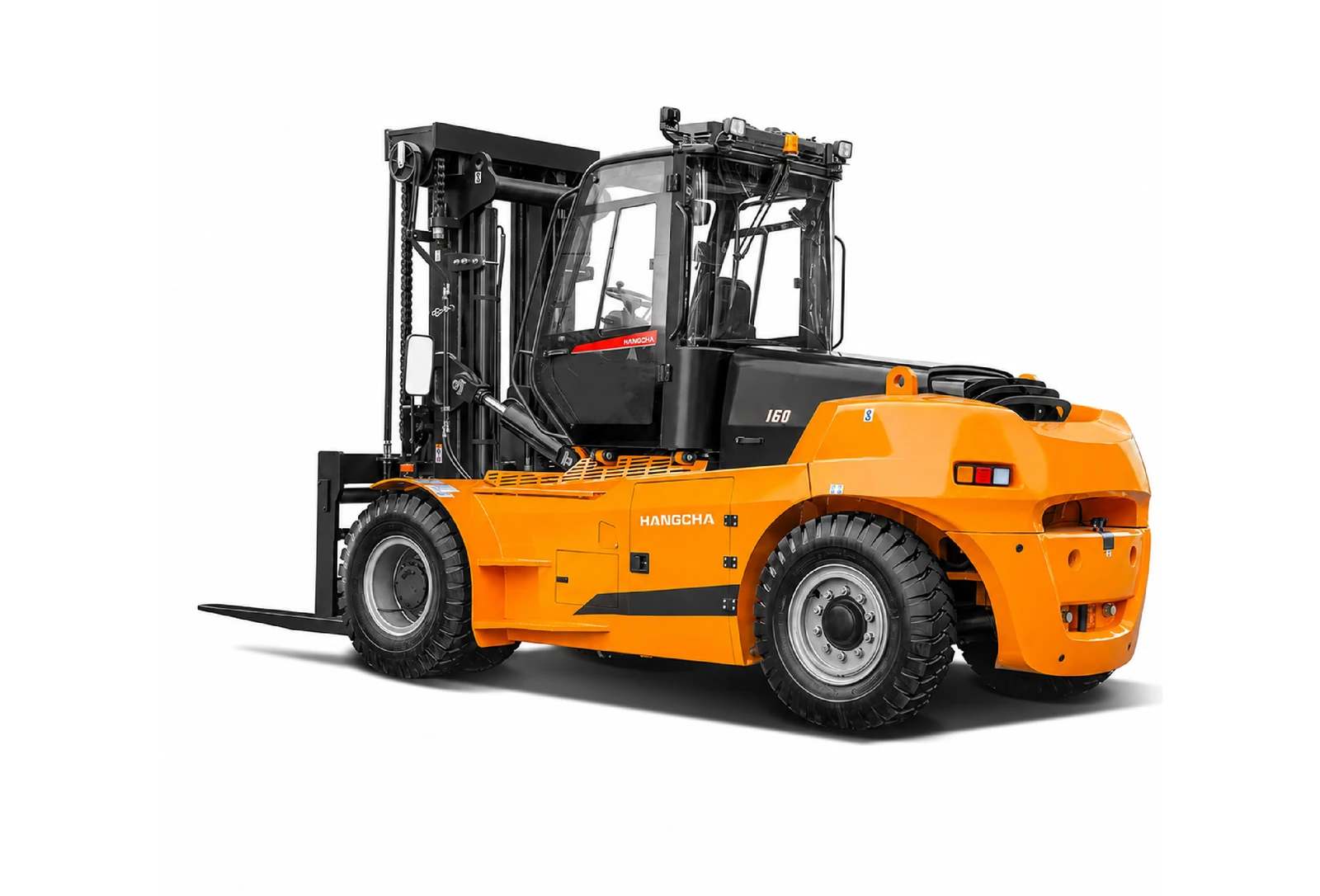

XH Series 4-Wheel Electric Forklift 12-18 t

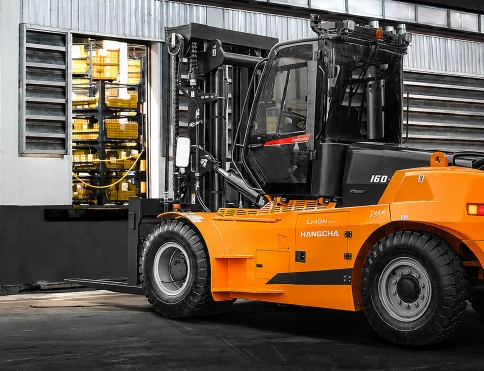

A 12-18 tonne 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 6.5 m and Li-ion battery power for day-to-day material handling.
12-18 t
Capacity
Li-ion
Power
Up to 6.5 m
Lift Height
Warranty & Support
24 Months / 4,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XH Series 12-18 t Model
The XH Series 12-18 t is a heavy-duty high-voltage lithium forklift built on an electric vehicle voltage platform to replace diesel trucks in long, high-intensity work. On this electric forklift the motor, controller and battery are all water-cooled, and the battery fast-charges from 20% to 100% in 1.3 hours.
- CPD120, CPD140 and CPD160 (XHXL2G): 12-16 t at a 600 mm load centre on a 541V/228Ah (123 kWh) battery, with a 3,100 mm wheelbase, 2,460 mm overall width and a 4,350-4,450 mm turning radius.
- CPD140 and CPD160 (XHL2G): the same capacities rated at a longer 900 mm load centre, on a 608V/302Ah (184 kWh) battery with 1,800 mm forks and a 3,750 mm wheelbase.
- CPD180 (XHXL2G): 18 t at 600 mm on the 608V battery, with 150 kN drawbar pull.

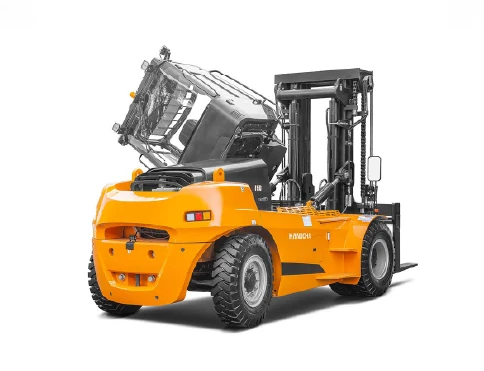

Every model keeps full capacity up to a 5 m lift, with masts to 6.5 m, where the 18 tonne model still carries 13,500 kg. A fully suspended enclosed cab with air conditioning, wet disc brakes and automatic fire suppression for the battery pack are standard, and high-voltage components are sealed to IP67. Loads of 20-25 t need the XH Series 4-wheel electric forklift 20-25 t.
Practical Features for Daily Operation
Electric Power
High-voltage, water-cooled battery system for heavy work indoors and outdoors.
IP67 Motors and Electronics
IP67-rated motors and electronics with an IPX4 body for operation in harsh, wet conditions.
Controller Diagnostics
A bus-architecture controller gives diagnostics, fault alerts and optional remote monitoring.
Full Specifications
| Capacity | 12-18 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 6.5 m |
| Battery Voltage | 541/608V |
| Turning Radius | 4,350-4,950mm |
| Gradeability | Up to 30% |
| Warranty | 24 Months / 4,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD120
- CPD140
- CPD160
- CPD180
| Model | Capacity (load centre) | Battery | Turning radius | Laden travel | Capacity at 6.5 m | Service weight |
|---|---|---|---|---|---|---|
| CPD120-XHXL2G | 12,000 kg (600 mm) | 541V / 228Ah | 4,350 mm | 23 km/h | 7,500 kg | 17,000 kg |
| CPD140-XHXL2G | 14,000 kg (600 mm) | 541V / 228Ah | 4,350 mm | 23 km/h | 9,500 kg | 19,400 kg |
| CPD160-XHXL2G | 16,000 kg (600 mm) | 541V / 228Ah | 4,450 mm | 26 km/h | 11,500 kg | 20,500 kg |
| CPD140-XHL2G | 14,000 kg (900 mm) | 608V / 302Ah | 4,950 mm | 27 km/h | 9,500 kg | 22,800 kg |
| CPD160-XHL2G | 16,000 kg (900 mm) | 608V / 302Ah | 4,950 mm | 27 km/h | 11,500 kg | 23,800 kg |
| CPD180-XHXL2G | 18,000 kg (600 mm) | 608V / 302Ah | 4,950 mm | 27 km/h | 13,500 kg | 23,400 kg |
Optional batteries: 608V/302Ah on the 12-16 t XHXL2G models and 541V/456Ah on the 14-18 t models. Figures from the Hangcha XH Series high-voltage lithium battery forklift brochure (12-18 t, 2023).
