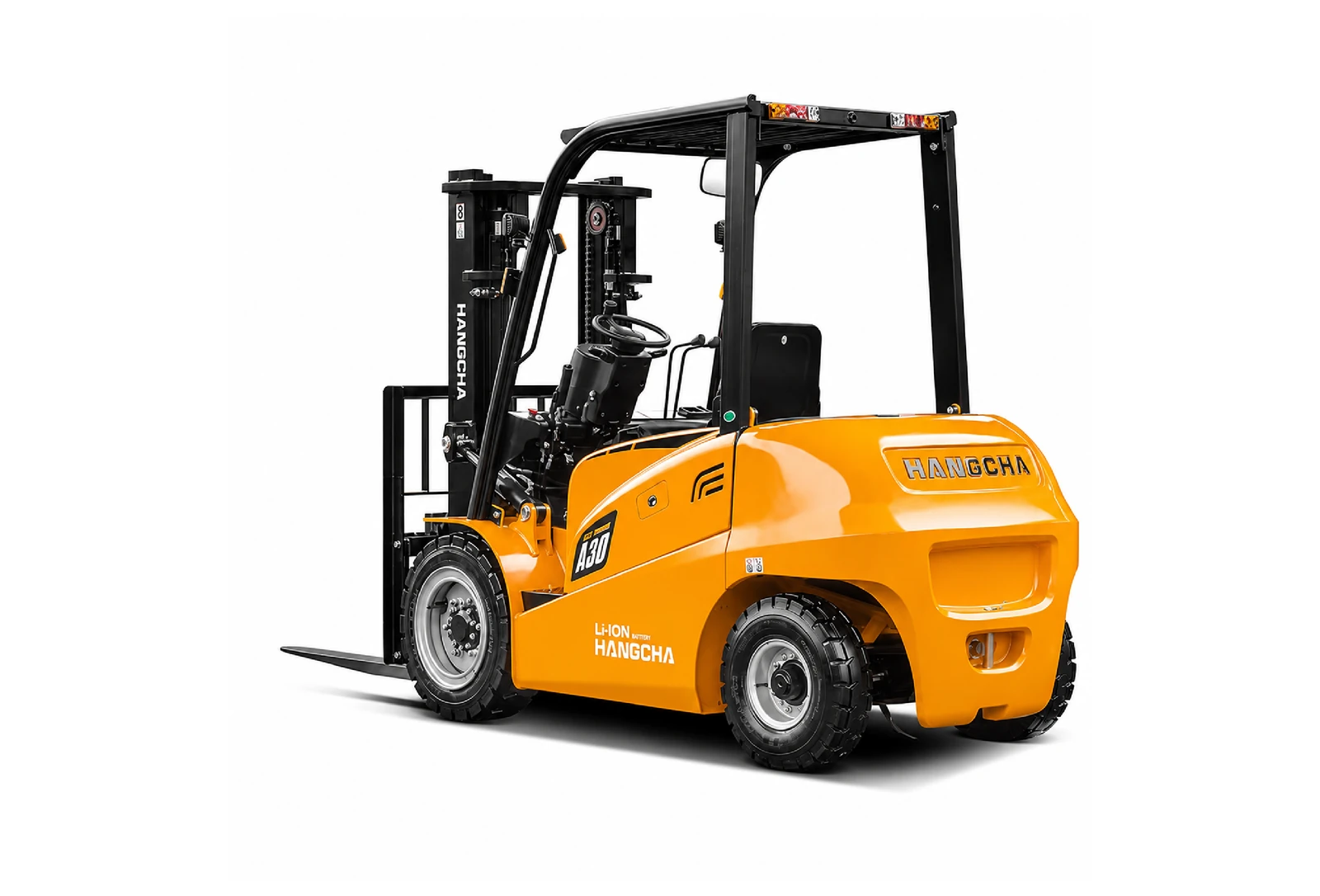

XA Series 4-Wheel Electric Forklift 2-3.8 t
A 2-3.8 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
2-3.8 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the Right XA Series Electric Forklift Model
Choose an XA Series model by load weight first, then by how far it needs to travel and climb between charges. All five models are seated 80V lithium-ion trucks on pneumatic tyres, so they work on warehouse floors and in outdoor yards.
- CPD20 and CPD25 (2-2.5 t): the tightest turning radius in the range at 2,230 mm, an 80V/150Ah battery and the lightest service weight at 3,280-3,650 kg, which matters on floors with lower load ratings.
- CPD30 (3 t): moves up to an 80V/230Ah battery for longer runtime between charges, with a 2,375 mm turning radius.
- CPD35 and CPD38 (3.5-3.8 t): the heaviest loads in the range on the same 230Ah battery. Laden gradeability is 16% and 15%, compared with 18% on the smaller models, so check ramp gradients first.
Capacities are rated at a 500 mm load centre. Longer loads reduce capacity: the CPD38 carries about 2.3 t at an 1,100 mm load centre. The standard mast lifts 3,000 mm, with taller masts available up to 7 m.
Practical Features for Daily Operation
Electric Power
Li-ion electric drive for warehouse, indoor and outdoor work, with high ground clearance.
Wide-View Mast
A wide-view mast and enlarged fork carriage opening give a clearer forward view.
Graphical Dashboard
A large graphical display with an English interface, customisable settings and fault alerts.
Full Specifications
| Capacity | 2-3.8 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 2,230-2,375mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD20
- CPD25
- CPD30
- CPD35
- CPD38
| Model | Capacity | Turning radius | Aisle (1000 x 1200 crossways) | Battery | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPD20-XAJ4-I | 2,000 kg | 2,230 mm | 3,982.5 mm | 80V / 150Ah | 18% | 3,280 kg |
| CPD25-XAJ4-I | 2,500 kg | 2,230 mm | 3,982.5 mm | 80V / 150Ah | 18% | 3,650 kg |
| CPD30-XAJ4-I | 3,000 kg | 2,375 mm | 4,053 mm | 80V / 230Ah | 18% | 4,260 kg |
| CPD35-XAJ4-I | 3,500 kg | 2,375 mm | 4,083 mm | 80V / 230Ah | 16% | 4,620 kg |
| CPD38-XAJ4-I | 3,800 kg | 2,375 mm | 4,083 mm | 80V / 230Ah | 15% | 4,860 kg |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha XA Series brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
