XA Series Pallet Truck 2-3 t
A 2-3 t pallet truck range for indoor warehouse operations, with lift heights of 125 mm and stand-on operator formats for day-to-day pallet movement where travel routes, floor conditions and operator format influence model selection.
2-3 t
Capacity
Li-ion / Lead-acid
Power
125 mm
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XA Series Pallet Truck: 2 t or 3 t, Lithium or Lead-Acid

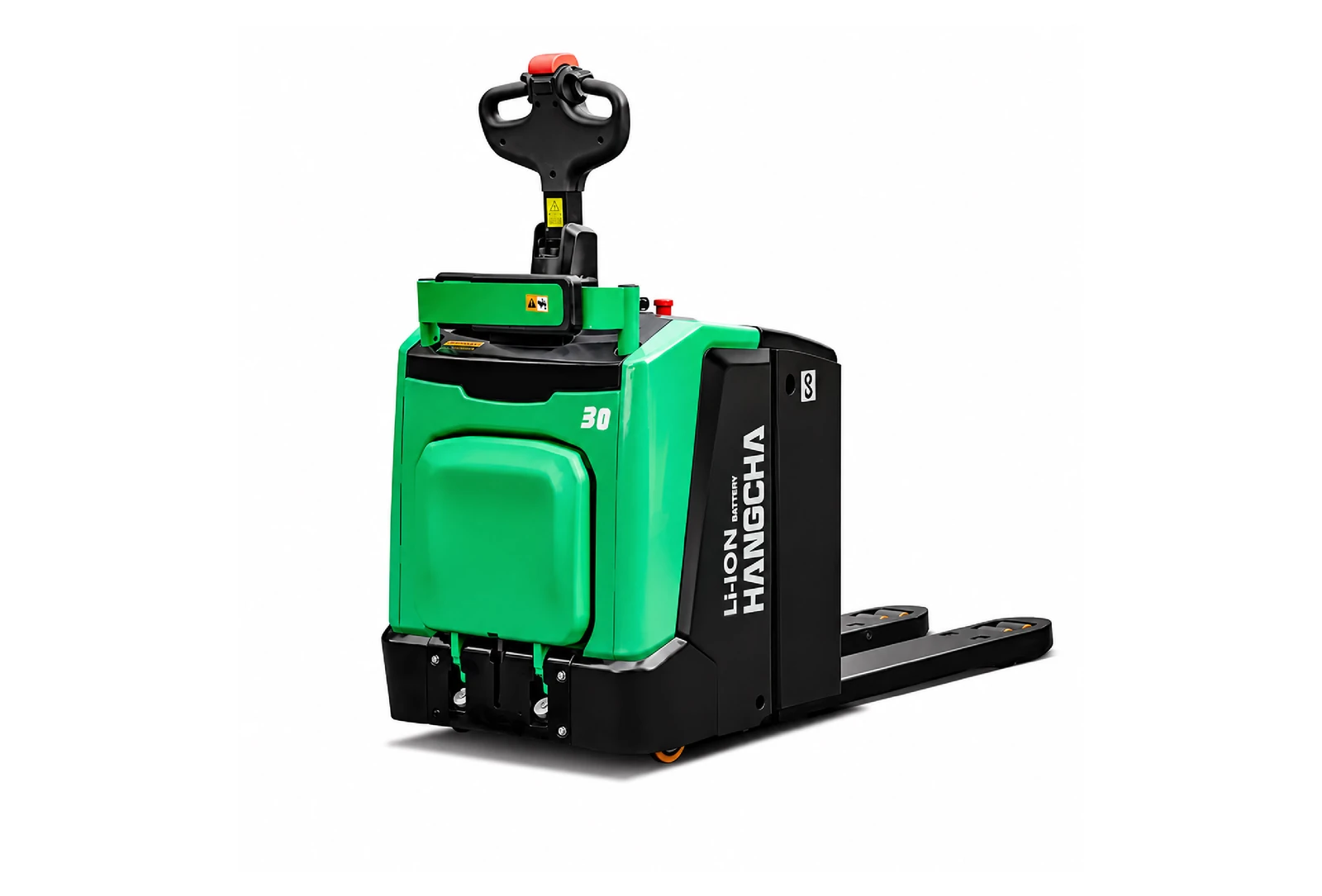

The XA Series pallet truck is a 24V stand-on pallet truck with AC drive, electric power steering and a floating suspension platform that reduces operator fatigue on long shifts. It comes in 2 t and 3 t capacities with lithium (I) or lead-acid batteries.
- CBD20 (2,000 kg): 8% laden gradeability, with a 24V/150Ah lithium or 24V/210Ah lead-acid battery as standard.
- CBD30 (3,000 kg): 6% laden gradeability, with a 24V/150Ah lithium or 24V/240Ah lead-acid battery as standard.
- Lithium or lead-acid: the lithium models weigh 560 kg against 685-715 kg for lead-acid, use a LiFePO4 battery with a 6-year or 12,000-hour warranty and offer a 230Ah option, while lead-acid batteries go up to 340Ah.
Both capacities travel at 6 km/h laden, lift 125 mm, use 1,150 mm forks and turn in 1,654-1,721 mm, needing a 2,091 mm aisle for 1000 x 1200 mm pallets. F2 models suit cold stores down to -30°C. For long-distance runs with a fold-down side seat, see the XA Series stand-on / side-seated pallet truck.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Stand-On Operator Platform
A stand-on platform lets the operator ride with the truck on longer warehouse runs.
1,150 mm Forks
Forks of 1,150 mm length raise pallets 125 mm for moving loads of 2-3 t.
Full Specifications
| Capacity | 2-3 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | 125 mm |
| Battery Type | Li-ion / Lead-acid |
| Fork Length | 1,150mm |
| Turning Radius | 1,654-1,721mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD20
- CBD30
| Model | Capacity | Battery (std) | Battery weight | Service weight | Laden travel | Laden gradeability |
|---|---|---|---|---|---|---|
| CBD20-XA...S-I | 2,000 kg | 24V / 150Ah lithium | 70 kg | 560 kg | 6 km/h | 8% |
| CBD20-XA...S | 2,000 kg | 24V / 210Ah lead-acid | 195 kg | 685 kg | 6 km/h | 8% |
| CBD30-XA...S-I | 3,000 kg | 24V / 150Ah lithium | 70 kg | 560 kg | 6 km/h | 6% |
| CBD30-XA...S | 3,000 kg | 24V / 240Ah lead-acid | 225 kg | 715 kg | 6 km/h | 6% |
Rated at a 600 mm load centre. Model codes cover the XAJ1S, XAQ1S, XAC1S and XAT17S versions. Figures from the Hangcha XA Series pallet truck brochure.
