XA Series Stand-On / Side-Seated Pallet Truck 2 t
A 2 t stand-on / side-seated pallet truck range for indoor warehouse operations, with lift heights of 125 mm and stand-on operator formats for day-to-day pallet movement where travel routes, floor conditions and operator format influence model selection.
2 t
Capacity
Li-ion / Lead-acid
Power
125 mm
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the XA Series Stand-On / Side-Seated Pallet Truck: Lead-Acid or Lithium

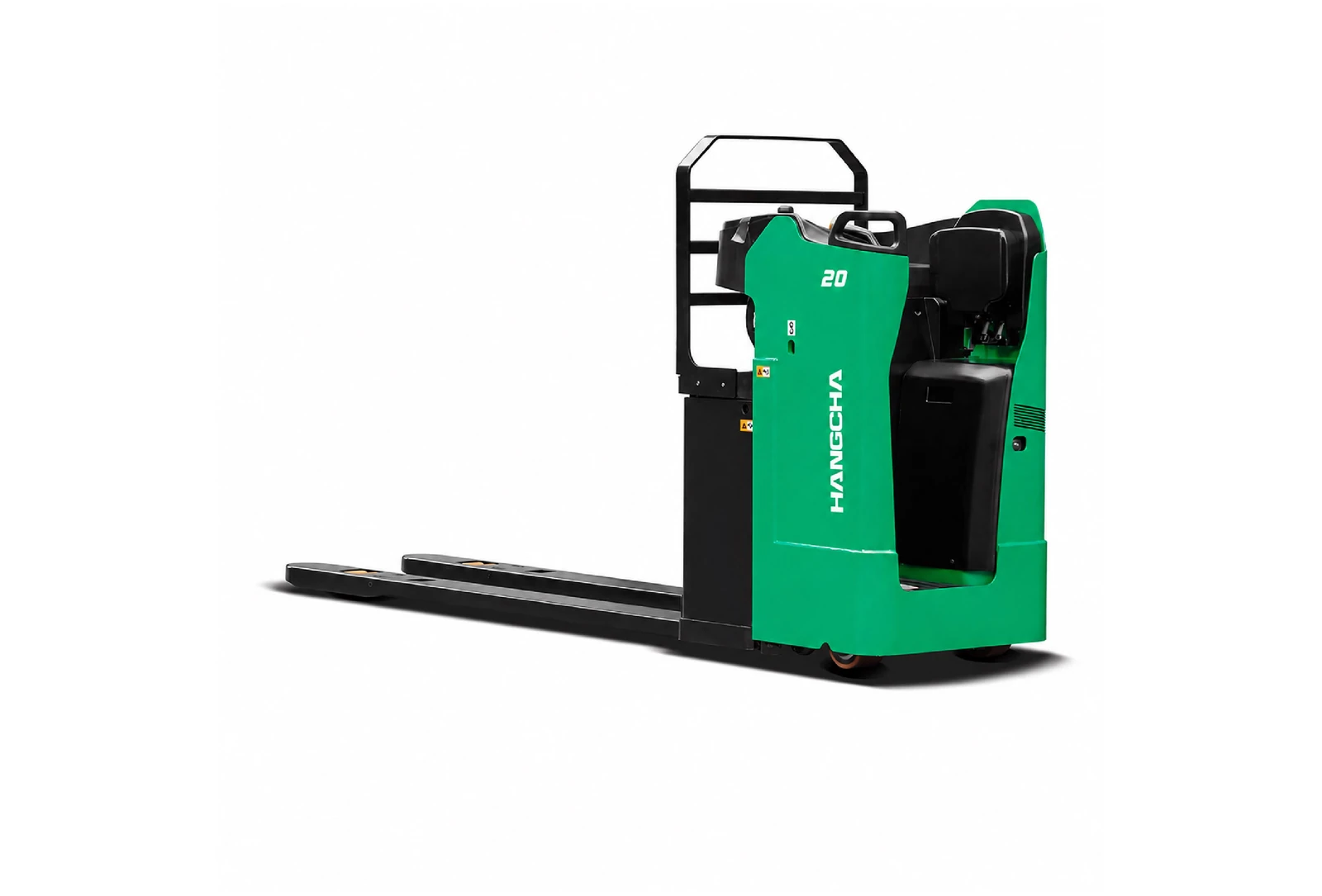

The XA Series stand-on / side-seated pallet truck is built for high-throughput, long-distance runs: the operator can stand or fold down the side seat, with knee pads, a cushioned footplate and torque-feedback steering for comfort over a full shift.
- Lead-acid version: a 24V/375Ah battery weighing 297 kg, for a 950 kg service weight.
- Lithium version (I): a 24V/230Ah battery weighing 80 kg, cutting the service weight to 835 kg.
Both run at 10 km/h laden and 12.5 km/h unladen with 6% laden gradeability, AC drive and regenerative braking, and are rated at 2,000 kg on 1,150 mm forks at a 600 mm load centre. The truck is 760 mm wide with a 1,792-1,860 mm turning radius. The battery rolls out sideways as standard, and 2,400 mm forks are available for moving two pallets end to end. For shorter runs, compare the XA Series pallet truck 2-3 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Ride-On Operation
Stand-on and side-seated formats let the operator ride on longer pallet runs.
1,150 mm Forks
Forks of 1,150 mm with a 125 mm lift height for moving pallet loads of up to 2 t.
Full Specifications
| Capacity | 2 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | 125 mm |
| Battery Type | Li-ion / Lead-acid, 24V |
| Fork Length | 1,150mm |
| Turning Radius | 1,792-1,860mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD20
| Version | Battery | Battery weight | Service weight | Laden / unladen travel | Laden gradeability | Turning radius |
|---|---|---|---|---|---|---|
| CBD20-XAC1RS / XAQ1RS | 24V / 375Ah lead-acid | 297 kg | 950 kg | 10 / 12.5 km/h | 6% | 1,792 / 1,860 mm |
| CBD20-XAC1RS-I / XAQ1RS-I | 24V / 230Ah lithium | 80 kg | 835 kg | 10 / 12.5 km/h | 6% | 1,792 / 1,860 mm |
Rated at 2,000 kg at a 600 mm load centre. Figures from the Hangcha XA Series stand-on and side-seated pallet truck brochure.
