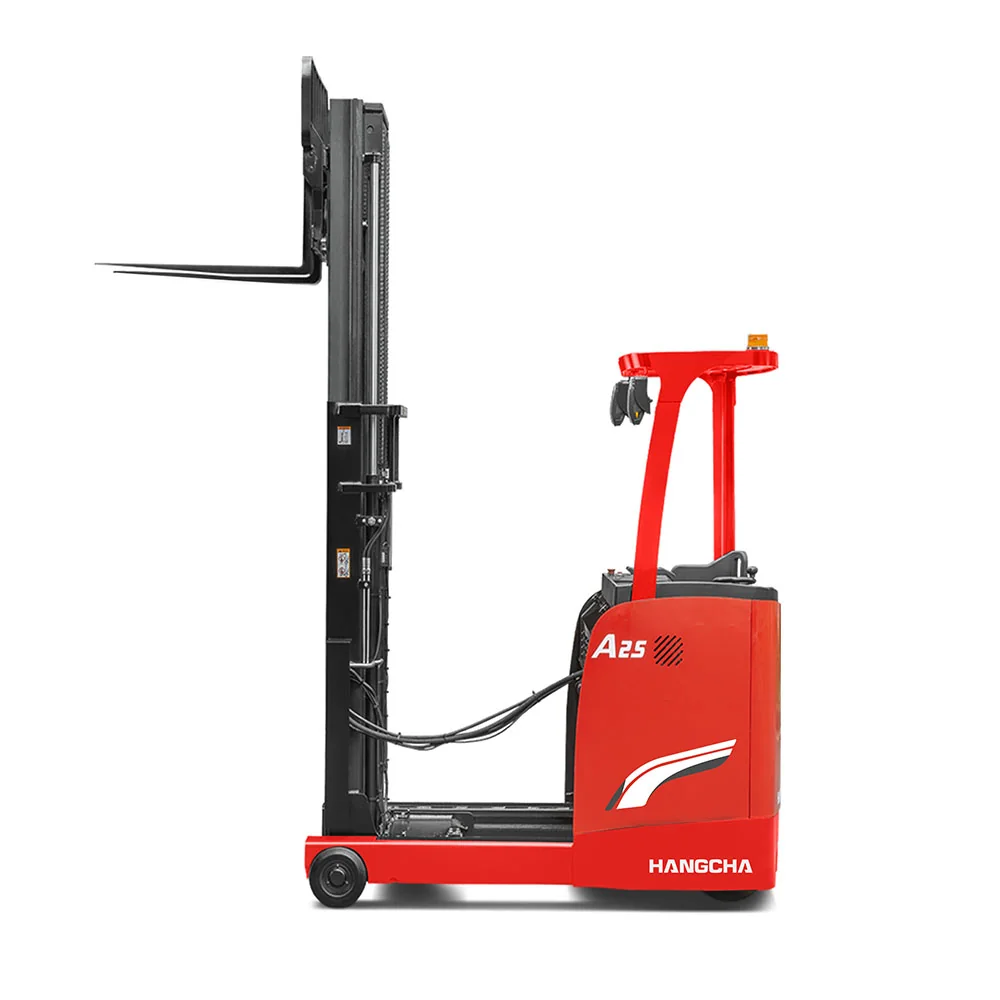

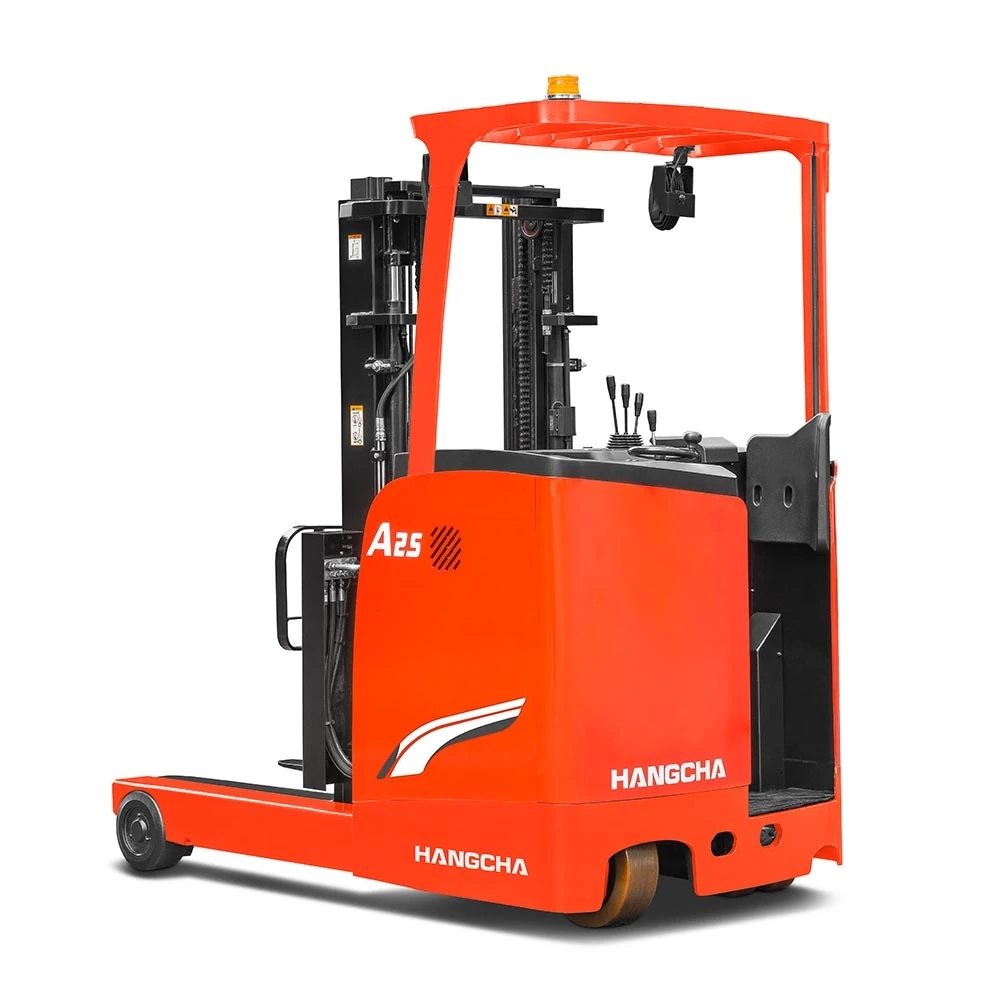

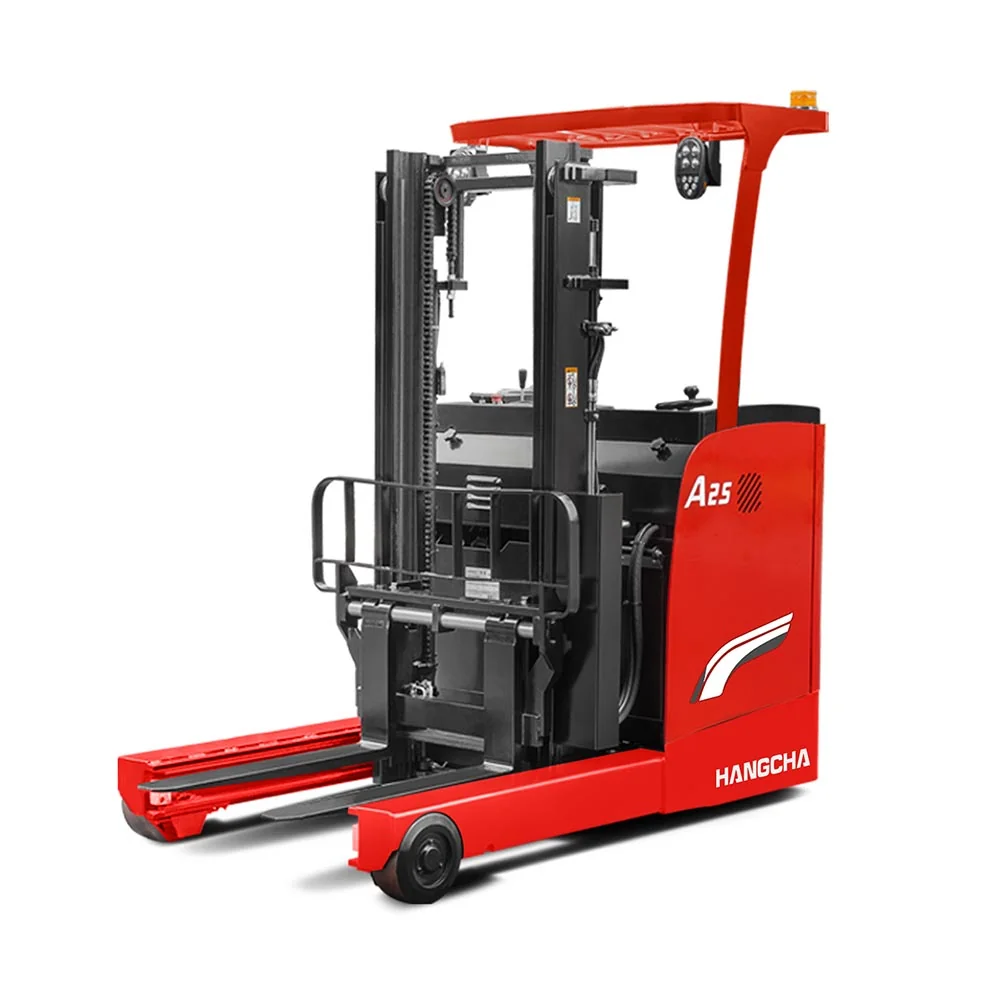

A Series Reach Truck 2-2.5 t
A 2-2.5 t reach truck range for indoor warehouse and narrow-aisle operations, with lift heights of up to 7 m for load handling where storage height, reach and aisle space need to be considered together.
2-2.5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the CQD20 and CQD25 Stand-On Reach Trucks
The A Series 2-2.5 t uses the same stand-on layout as the 1.5-1.8 t range on a wider 1,194 mm chassis, with a larger 48V/325Ah lead-acid battery as standard or a lithium iron phosphate battery on the -I models. Both models lift to 7 m.
- CQD20 (2,000 kg): a 1,755 mm turning radius, 665 mm reach and a 2,745 mm aisle for 1000 x 1200 mm pallets crossways. It holds 2,000 kg up to 4.3 m and 1,100 kg at 7 m.
- CQD25 (2,500 kg): a 1,950 mm turning radius, 790 mm reach and a 2,865 mm aisle. It holds 2,500 kg up to 4 m, 1,950 kg at 6 m and 1,300 kg at 7 m.
Both are rated at a 500 mm load centre, travel at 10.5 km/h and have 10% laden gradeability. F2 models suit cold storage down to -30ยฐC, and a sideshifter reduces capacity by 200 kg. For racking above 7 m, the XC Series reach truck 1.4-2.5 t lifts to 13 m.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Heights to 7 m
Lift heights of up to 7 m for storage on upper racking levels in indoor warehouses.
Reach of 665-790 mm
A reach distance of 665-790 mm places pallets into racking from aisles of 2,745 mm.
Full Specifications
| Capacity | 2-2.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Minimum Aisle Width | From 2,745mm |
| Turning Radius | 1,755-1,950mm |
| Battery Type / Voltage | Lead-acid / Li-ion, 48V |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CQD20
- CQD25
| Model | Rated capacity | Max lift | Capacity at max lift | Reach | Aisle (1000 x 1200 crossways) | Turning radius |
|---|---|---|---|---|---|---|
| CQD20-AC5S | 2,000 kg | 7,000 mm | 1,100 kg | 665 mm | 2,745 mm | 1,755 mm |
| CQD25-AC5S | 2,500 kg | 7,000 mm | 1,300 kg | 790 mm | 2,865 mm | 1,950 mm |
Capacities at a 500 mm load centre without a sideshifter. -I models are lithium, -F2 models are for cold storage. Figures from the Hangcha A Series stand-on reach truck 2-2.5 t brochure.
