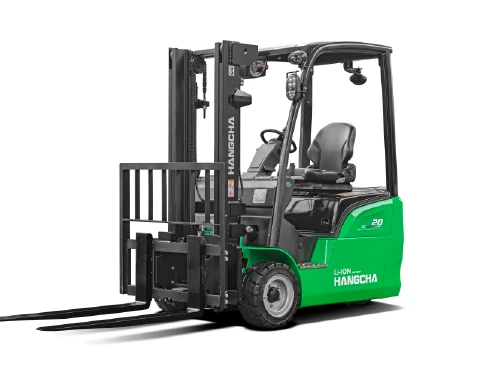

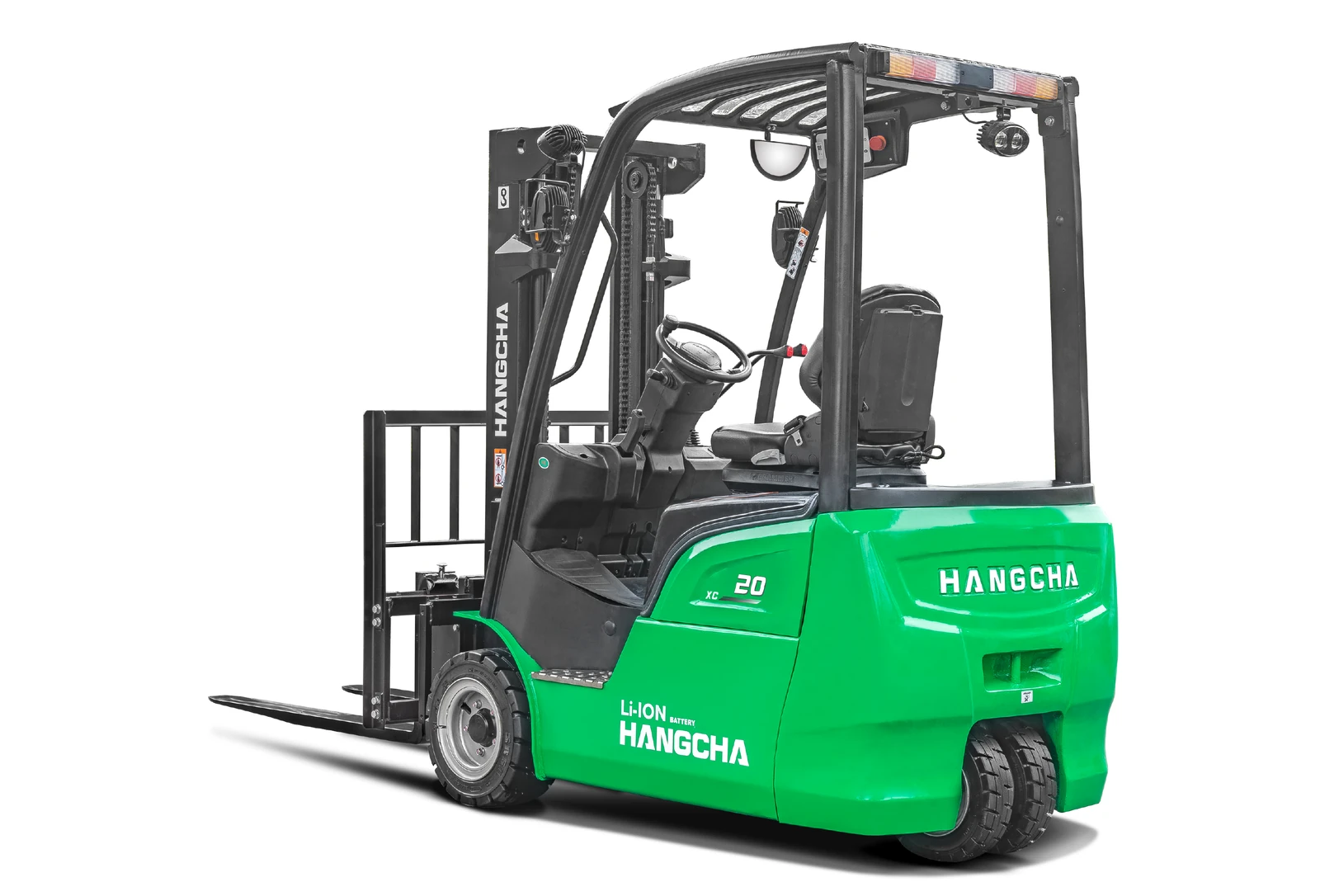

XC Series 3-Wheel Electric Forklift 1.3-2 t
A 1.3-2 t 3-wheel electric forklift range for indoor warehouse operations, combining electric operation with lift heights of up to 6.5 m and Li-ion battery options for day-to-day material handling.
1.3-2 t
Capacity
Li-ion
Power
Up to 6.5 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series 3-Wheel Electric Forklift Model
The XC Series 3-wheel electric forklift is an 80V lithium truck from 1.3 t to 2 t, with dual AC drive motors and battery cells developed jointly by Hangcha and CATL. Choose by load first, because the 2 t model has a longer, wider body.
- CPDS13 to CPDS18 (1.3-1.8 t): the same compact 1,080 mm wide body with a 1,470 mm turning radius and a 3,158 mm aisle for 1000 x 1200 mm pallets crossways, travelling at 16 km/h.
- CPDS20 (2 t): 1,149 mm wide with a 1,600 mm turning radius, a 3,290 mm aisle and 1,070 mm forks.
- Drive version: XCD8G and XCC2G models use a 15 kW lift motor. The XCY2G version uses a permanent magnet synchronous drive with an 11 kW lift motor.
Standard batteries are 80V/230Ah, or 280Ah on the 2 t, with options up to 460Ah. Ratings are at a 500 mm load centre with a 3,000 mm standard lift and triplex masts up to 6.5 m. The forks slow automatically just above the ground, regenerative braking holds the truck on ramps, and the hood and side plates are sealed against dust and water. For loads up to 1 t, see the X Series 3-wheel electric forklift 0.6-1 t.
Practical Features for Daily Operation
Electric Power

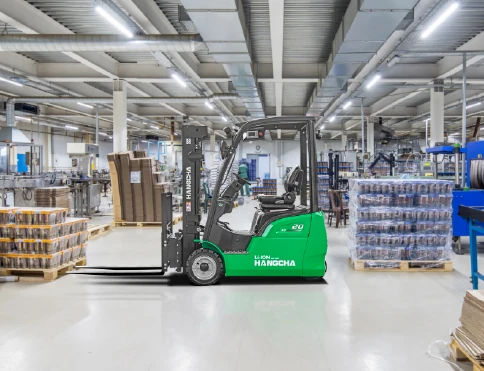

Electric operation suited to indoor and warehouse environments.
Fork Slow-Down Sensing
Forks automatically slow as they near the ground to help protect goods and flooring.
Sealed Hood and Panels
A fully sealed hood and side panels keep dust and water away from key components.
Full Specifications
| Capacity | 1.3-2 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 6.5 m |
| Battery Voltage | 80V |
| Turning Radius | 1,470-1,600mm |
| Tyre Type | Solid / Superelastic |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPDS13
- CPDS15
- CPDS16
- CPDS18
- CPDS20
| Model | Capacity | Overall width | Turning radius | Aisle (1000 x 1200 crossways) | Capacity at 6.5 m | Laden gradeability |
|---|---|---|---|---|---|---|
| CPDS13 | 1,300 kg | 1,080 mm | 1,470 mm | 3,158 mm | 530 kg | 16% |
| CPDS15 | 1,500 kg | 1,080 mm | 1,470 mm | 3,158 mm | 730 kg | 16% |
| CPDS16 | 1,600 kg | 1,080 mm | 1,470 mm | 3,158 mm | 800 kg | 16% |
| CPDS18 | 1,800 kg | 1,080 mm | 1,470 mm | 3,158 mm | 950 kg | 15% |
| CPDS20 | 2,000 kg | 1,149 mm | 1,600 mm | 3,290 mm | 1,100 kg | 13% |
Each model comes as XCD8G, XCC2G or XCY2G. Rated at a 500 mm load centre. Figures from the Hangcha XC Series 3-wheel electric forklift brochure.
