A Series High-Level Order Picker - Narrow Aisle 1.3 t
A 1.3 tonne high-level order picker range for indoor warehouse and narrow-aisle operations, with picking heights (stand height) of up to 6.35 m for order-picking tasks where working height and aisle conditions need to match the application.
1.3 t
Capacity
Li-ion
Power
Fork lift up to 6.1 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing a Mast for the A Series Narrow Aisle Order Picker

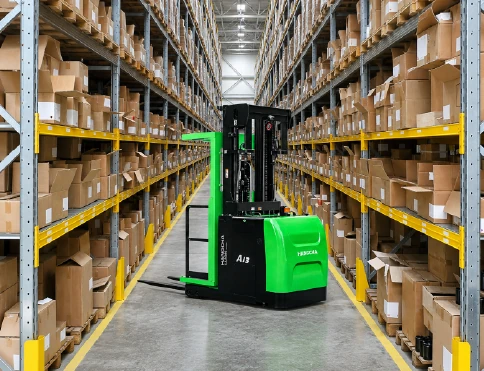

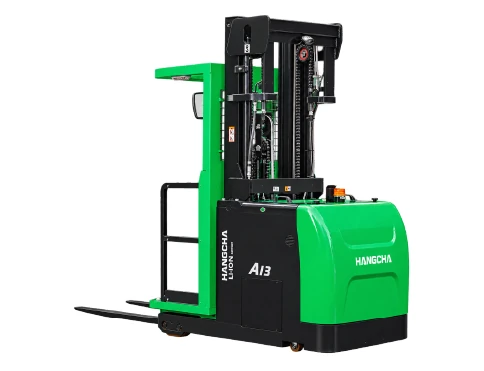

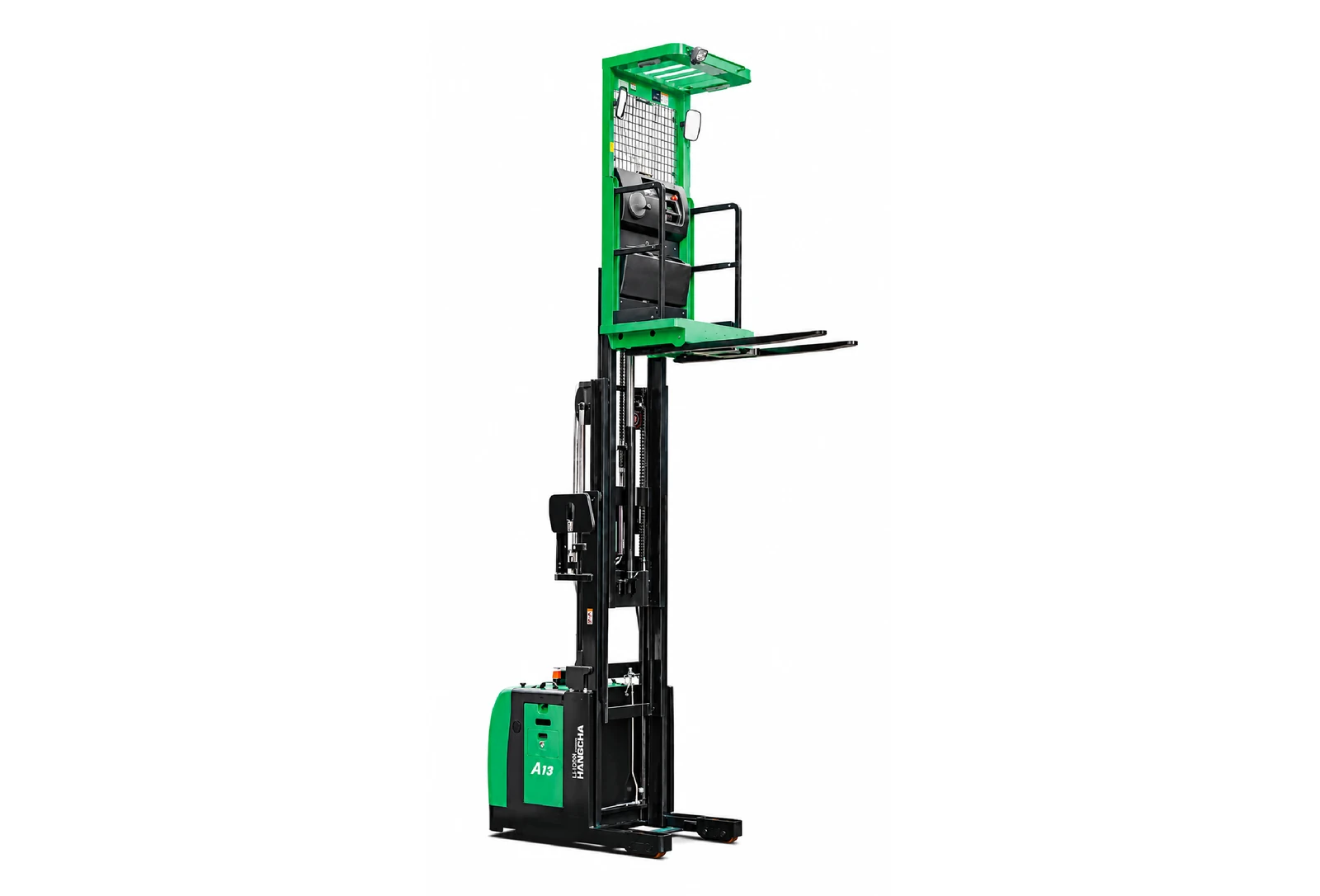

The A Series narrow aisle order picker is a man-up truck: the operator compartment rises with the forks, so the operator picks straight from the racking. At 1,015 mm wide, this high-level order picker suits narrow aisles and comes from Hangcha's North American range, rated at 1,360 kg (3,000 lb) at a 600 mm (24 in) load centre.
- N5000 mast: 5,000 mm fork height and a 5,250 mm platform height, with the lowest collapsed height at 2,355 mm.
- N5350 mast: 5,350 mm fork height and a 5,600 mm platform height, 2,470 mm collapsed.
- N6100 mast: the tallest, with 6,100 mm fork height and a 6,350 mm platform height, 2,720 mm collapsed.
A 36V/684Ah lithium iron phosphate battery powers a 6.4 kW drive motor and a 12.8 kW lift motor. Travel speed is 12 km/h up to 500 mm of lift and falls to 1 km/h above 4.9 m. Guardrails with detection switches, a safety pedal, a tilt switch and a pallet clamp on the forks are standard, while wire guidance, a side roller and a full-body harness are options. Higher racking up to 9.5 m needs the A Series high-level order picker 1.2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Stand Height to 6.35 m

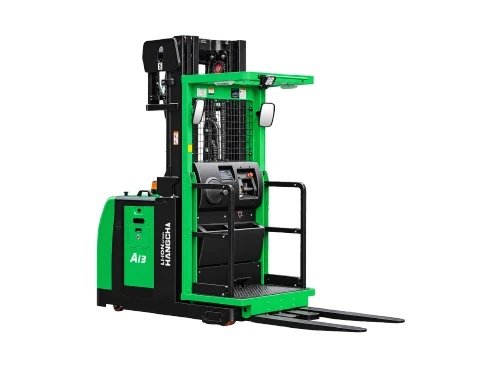

Operators pick from a platform with stand heights of up to 6.35 m in high-bay racking.
Fork Lift to 6.1 m
Forks lift up to 6.1 m with a 1.3 t capacity for handling pallets alongside picking.
Full Specifications
| Capacity | 1.3 t |
|---|---|
| Power | Li-ion |
| Lift Height | Fork lift up to 6.1 m |
| Operator Type | Order Picker |
| Overall Width | 1,015 mm |
| Battery Type | Li-ion, 36V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CJD13
| Mast | Fork height | Platform height | Collapsed height | Service weight (without battery) |
|---|---|---|---|---|
| N5000 | 5,000 mm | 5,250 mm | 2,355 mm | 3,255 kg |
| N5350 | 5,350 mm | 5,600 mm | 2,470 mm | 3,280 kg |
| N6100 | 6,100 mm | 6,350 mm | 2,720 mm | 3,335 kg |
Model CJD13-AC4-HNAZTI (OPHTS13Li): 1,360 kg (3,000 lb) at a 600 mm (24 in) load centre, 1,720 mm turning radius.
