A Series Order Picker 2.5 t
A 2.5 t order picker range for indoor warehouse and narrow-aisle operations, with low-level picking for order-picking tasks where working height and aisle conditions need to match the application.
2.5 t
Capacity
Lead-acid / Li-ion
Power
125 mm
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.

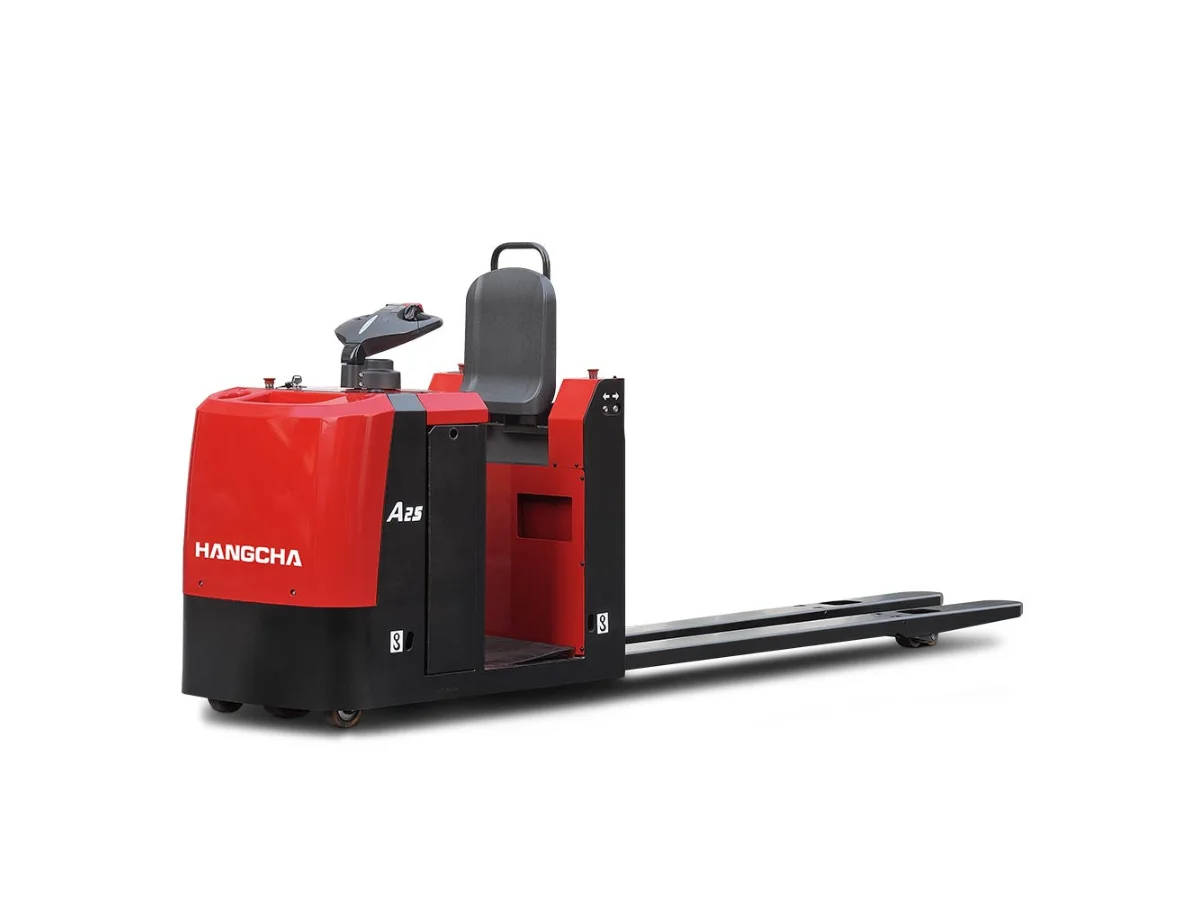

Choosing the A Series Low-Level Order Picker 2.5 t
The A Series low-level order picker carries up to 2,500 kg on 2,400 mm forks, while the operator stands on a low platform built for frequent stepping on and off. Hangcha designed it mainly for long runs between production lines, in automotive plants, logistics operations and warehouses.
- Travel: 7 km/h laden and 10 km/h unladen, with automatic slowdown as the steering angle increases.
- Space: 800 mm wide, with a 3,130 mm turning radius and a 3,930 mm aisle for 800 x 1200 mm pallets lengthways.
- Battery: 24V/360Ah as standard and about 420Ah as an option, changed from the side.
The forks lift 125 mm for travel, and 1,150, 1,220 and 2,150 mm fork lengths are optional. Electric power steering, a CAN-bus tiller, regenerative and parking brakes and three emergency switches are standard. For a newer 48V lithium version with faster travel and a lifting platform option, see the X Series low-level order picker 2.5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Low-Level Picking
Low-level order picking with a 125 mm fork lift height for moving picked pallets.
Slows Down in Turns
Electronic steering reduces travel speed automatically as the turning angle increases.
Full Specifications
| Capacity | 2.5 t |
|---|---|
| Power | Lead-acid / Li-ion |
| Lift Height | 125 mm |
| Operator Type | Order Picker |
| Minimum Aisle Width | 3,930mm |
| Battery Type | Lead-acid / Li-ion, 24V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CJD25
| Model | Capacity | Fork length | Turning radius | Aisle (800 x 1200 lengthways) | Laden / unladen travel | Service weight |
|---|---|---|---|---|---|---|
| CJD25-AC2-L | 2,500 kg | 2,400 mm | 3,130 mm | 3,930 mm | 7 / 10 km/h | 1,130 kg |
Rated at a 1,200 mm load centre. Figures from the Hangcha A Series low-level order picker brochure (2022).
