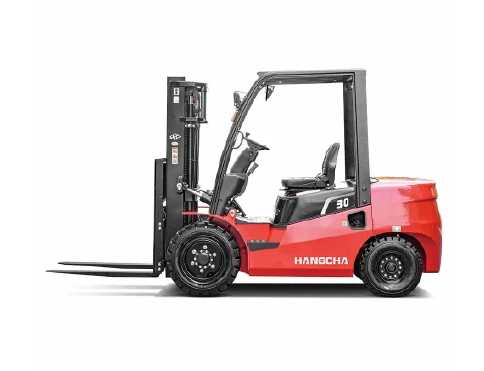

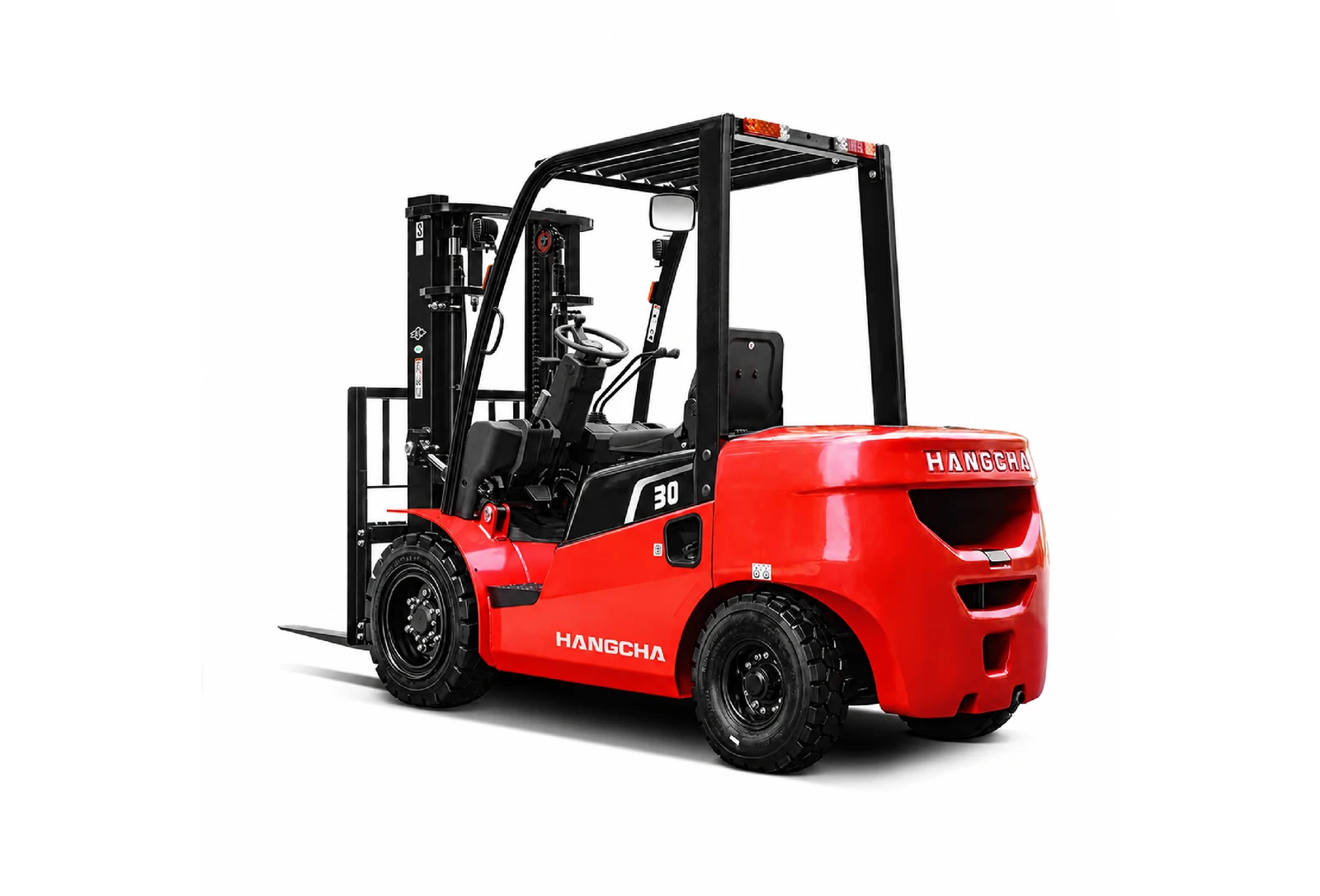

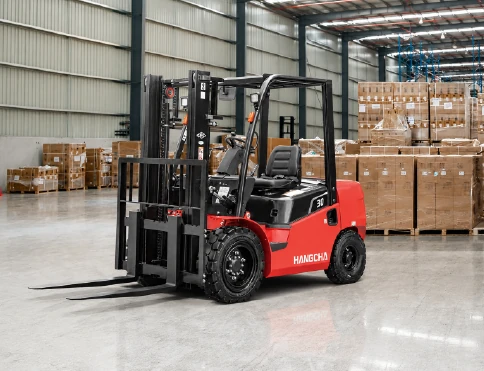

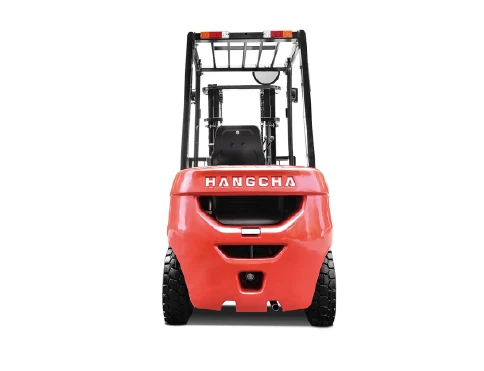

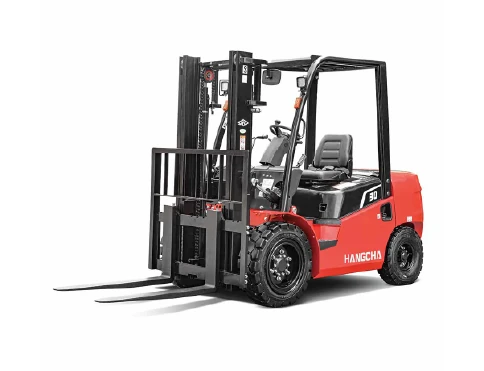

A Series Diesel Forklift 1.5-3.8 t
A 1.5-3.8 t diesel forklift range for outdoor operations, with lift heights of up to 7 m and Diesel power options for material handling where load, lift height and site conditions guide model selection.
1.5-3.8 t
Capacity
Diesel
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series Diesel Forklift: Capacity and Engine
The Hangcha A2 Series diesel forklift covers seven capacities from 1,500 to 3,800 kg at a 500 mm load centre, with a powershift transmission and a choice of engines. Every version in the brochure is diesel, so the decision comes down to capacity, engine and how high you need to lift.
- Engines: a Xinchai C490 is offered across the whole range, an Isuzu at 35.4 kW on 1.5-3 t, and a Mitsubishi S4S (35.3 kW), Xinchai A498 (36.8 kW) or a 44.8 kW three-cylinder engine on 2-3.8 t.
- Gradeability: most versions climb 25% laden. The 44.8 kW engine lifts that to 35% on the 2 t model and 33% on the 2.5 t, while the Isuzu 3 t version manages 15%.
- Lift: 3,000 mm as standard and masts to 7,000 mm, with 6.5 m and 7 m masts needing dual front wheels. On 3-3.8 t, 7.5 m and 8 m masts are available with dual front wheels.
Width runs from 1,080 mm on the 1.5-1.75 t models to 1,225 mm on 3-3.8 t, and turning radius from 1,995 to 2,450 mm. A large LED instrument, LED lights, an electronic accelerator, a neutral safety switch and a reverse buzzer are standard, with a cab, heater, solid tyres and free-lift masts as options. For loads from 4 t, see the A Series diesel forklift 4-5.5 t.
Practical Features for Daily Operation
Diesel Engine
Isuzu, Xinchai or Mitsubishi engine options, running on diesel.
Pneumatic Tyres
Pneumatic tyres suit outdoor yards, loading docks and general site work.
Climbs Grades to 35%
Gradeability of up to 35% for loading ramps and sloping outdoor yards.
Full Specifications
| Capacity | 1.5-3.8 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 7 m |
| Engine | ISUZU / XINCHAI / MITSUBISHI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 35% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD15
- CPCD18
- CPCD20
- CPCD25
- CPCD30
- CPCD35
- CPCD38
| Model | Capacity | Width (single / dual wheels) | Turning radius | Best laden gradeability | Service weight |
|---|---|---|---|---|---|
| CPCD15 | 1,500 kg | 1,080 mm | 1,995 mm | 25% | 2,550 kg |
| CPCD18 | 1,750 kg | 1,080 mm | 2,025 mm | 25% | 2,750 kg |
| CPCD20 | 2,000 kg | 1,155 / 1,595 mm | 2,170 mm | 35% | 3,440 kg |
| CPCD25 | 2,500 kg | 1,155 / 1,595 mm | 2,240 mm | 33% | 3,765 kg |
| CPCD30 | 3,000 kg | 1,225 / 1,725 mm | 2,400 mm | 28% | 4,250 kg |
| CPCD35 | 3,500 kg | 1,225 / 1,725 mm | 2,420 mm | 26% | 4,555 kg |
| CPCD38 | 3,800 kg | 1,225 / 1,725 mm | 2,450 mm | 25% | 4,755 kg |
Rated at a 500 mm load centre. Best gradeability depends on engine; the highest figures are for the 44.8 kW engine. Figures from the Hangcha A2 Series diesel forklift brochure (2026).
