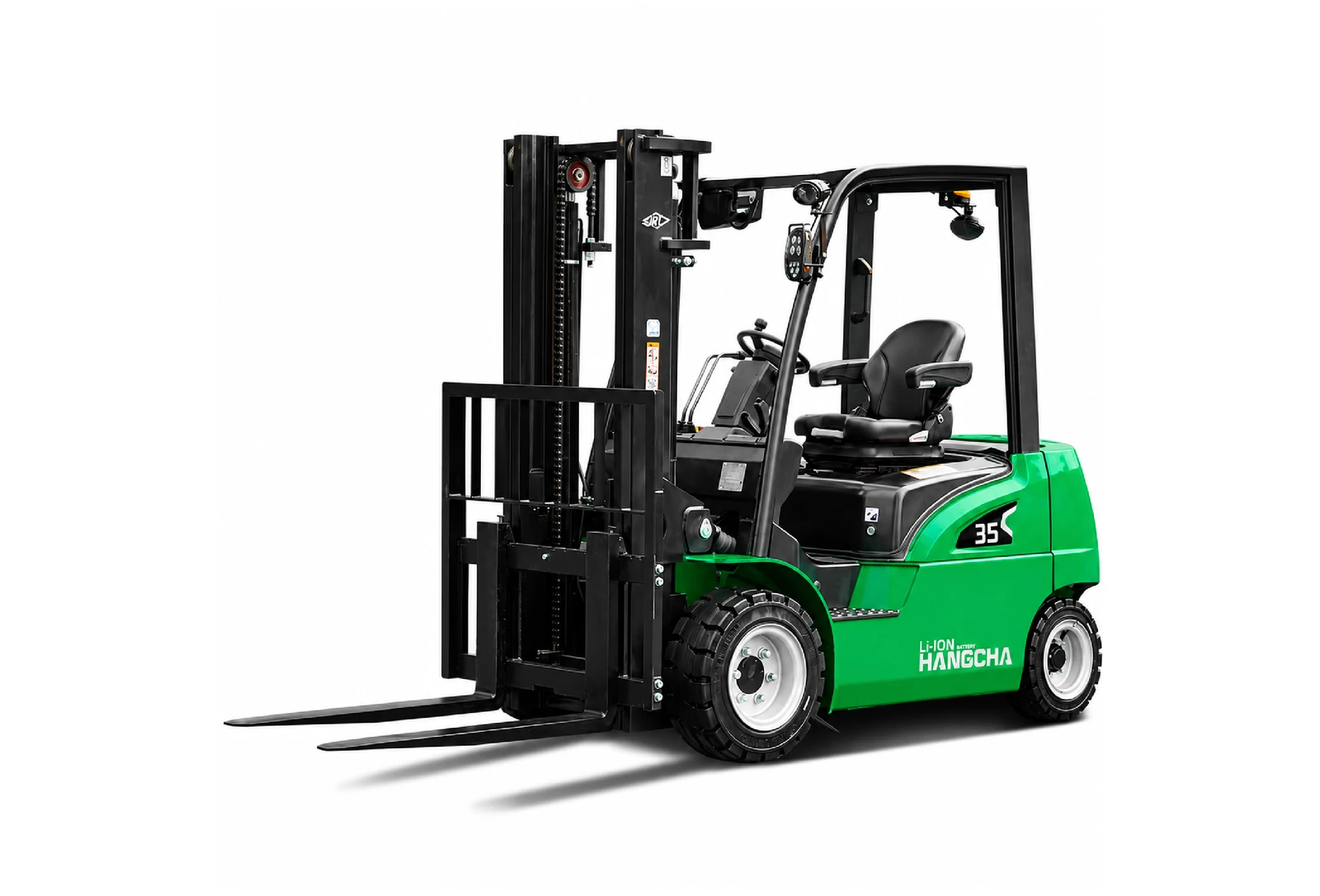

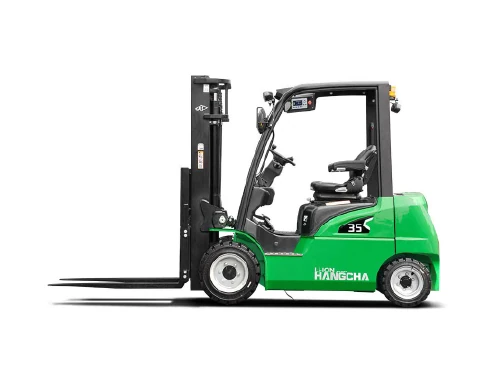

XC Series 4-Wheel Electric Forklift - AC 1.5-3.5 t
A 1.5-3.5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
1.5-3.5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series AC 1.5-3.5 t Model
The XC Series AC 1.5-3.5 t uses AC drive and lift motors with an 80V CATL lithium iron phosphate battery. Choose by load weight and shift length, since the battery size steps up with capacity.
- CPD15 and CPD18 (1.5-1.8 t): a 1,950 mm turning radius, 9 kW drive motor and an 80V/202Ah battery as standard, with 271Ah as an option.
- CPD20 and CPD25 (2-2.5 t): a 16.6 kW drive motor, 2,090 mm turning radius and an 80V/271Ah battery, with 404Ah as an option.
- CPD30 and CPD35 (3-3.5 t): a 2,270 mm turning radius and an 80V/404Ah battery, with 542Ah as an option. The CPD35 runs on super elastic tyres.

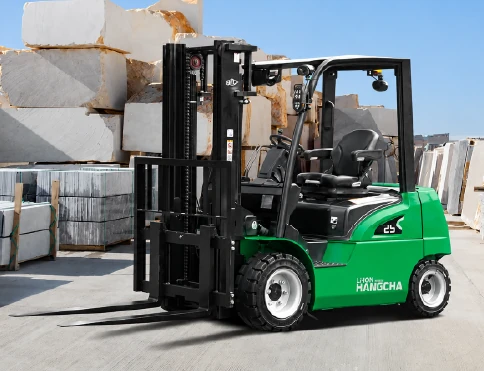

Every model has 20% laden gradeability and IPX4 water resistance for outdoor work, rated at a 500 mm load centre with a 3,000 mm standard lift. Masts reach 6 m on the 1.5-1.8 t models and 7 m on the 2-3.5 t models. For lighter duty with a smaller drive motor, compare the XC Series Light Duty 2-3.5 t.
Practical Features for Daily Operation
Electric Power
Li-ion electric drive with sealed motors and electronics, for indoor and outdoor work.
AC Pump With Sensors
A high-power AC pump with built-in speed and temperature sensors for the hydraulics.
Optional Seat Interlock
Optional OPS disables fork lowering when the operator leaves the seat.
Full Specifications
| Capacity | 1.5-3.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 1,950-2,270mm |
| Gradeability | Up to 20% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD15
- CPD18
- CPD20
- CPD25
- CPD30
- CPD35
| Model | Capacity | Battery (std / option) | Turning radius | Aisle (1000 x 1200 crossways) | Capacity at max lift | Laden travel |
|---|---|---|---|---|---|---|
| CPD15-XD4-SI16 | 1,500 kg | 80V 202Ah / 271Ah | 1,950 mm | 3,555 mm | 1,100 kg at 6 m | 16 km/h |
| CPD18-XD4-SI16 | 1,800 kg | 80V 202Ah / 271Ah | 1,950 mm | 3,560 mm | 1,300 kg at 6 m | 16 km/h |
| CPD20-XD4-SI26 | 2,000 kg | 80V 271Ah / 404Ah | 2,090 mm | 3,734 mm | 1,150 kg at 7 m | 18 km/h |
| CPD25-XD4-SI26 | 2,500 kg | 80V 271Ah / 404Ah | 2,090 mm | 3,734 mm | 1,450 kg at 7 m | 18 km/h |
| CPD30-XD4-SI26 | 3,000 kg | 80V 404Ah / 542Ah | 2,270 mm | 3,955 mm | 1,850 kg at 7 m | 18 km/h |
| CPD35-XD4-SI26 | 3,500 kg | 80V 404Ah / 542Ah | 2,270 mm | 3,955 mm | 2,050 kg at 7 m | 18 km/h |
Rated at a 500 mm load centre. 1.5-1.8 t capacity at 6 m with single tyres; 2-3.5 t capacity at 7 m with dual front tyres, as single tyres are not offered at 7 m. Figures from the Hangcha XC Series 1.5-3.5 t brochure.
