A Series Order Picker 0.5 t
A 0.5 t order picker range for indoor warehouse and narrow-aisle operations, with platform lift heights up to 3.7 m for order-picking tasks where working height and aisle conditions guide model selection.
0.5 t
Capacity
Li-ion
Power
Up to 3.7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the A Series 0.5 t Order Picker: Load and Lift

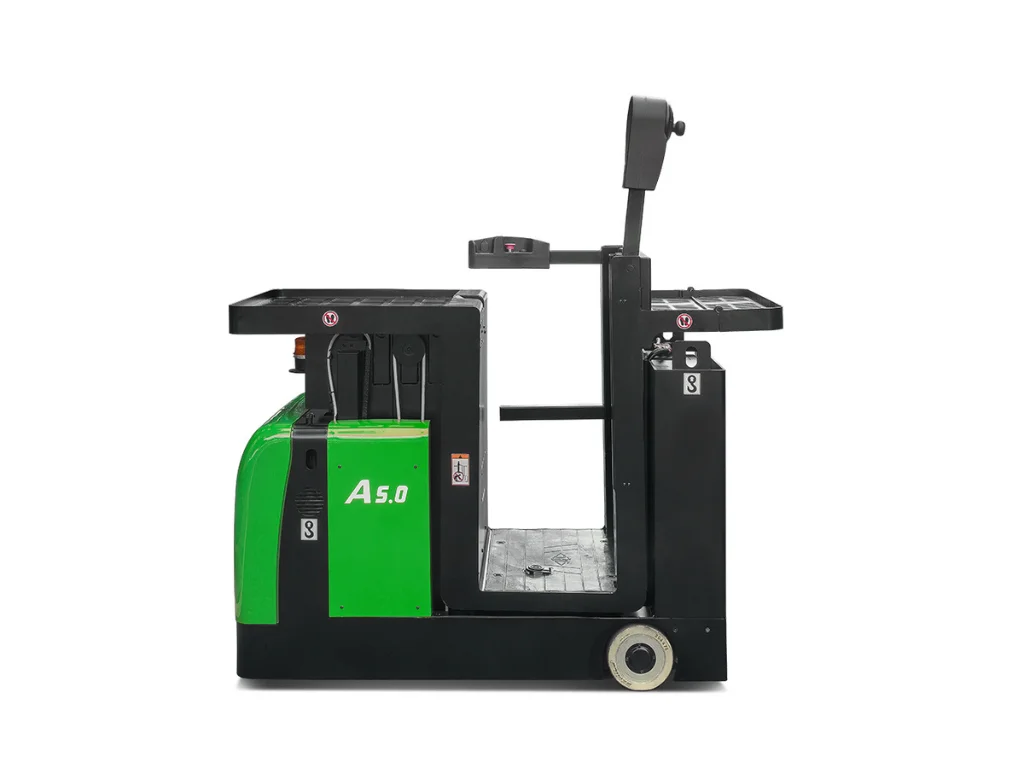

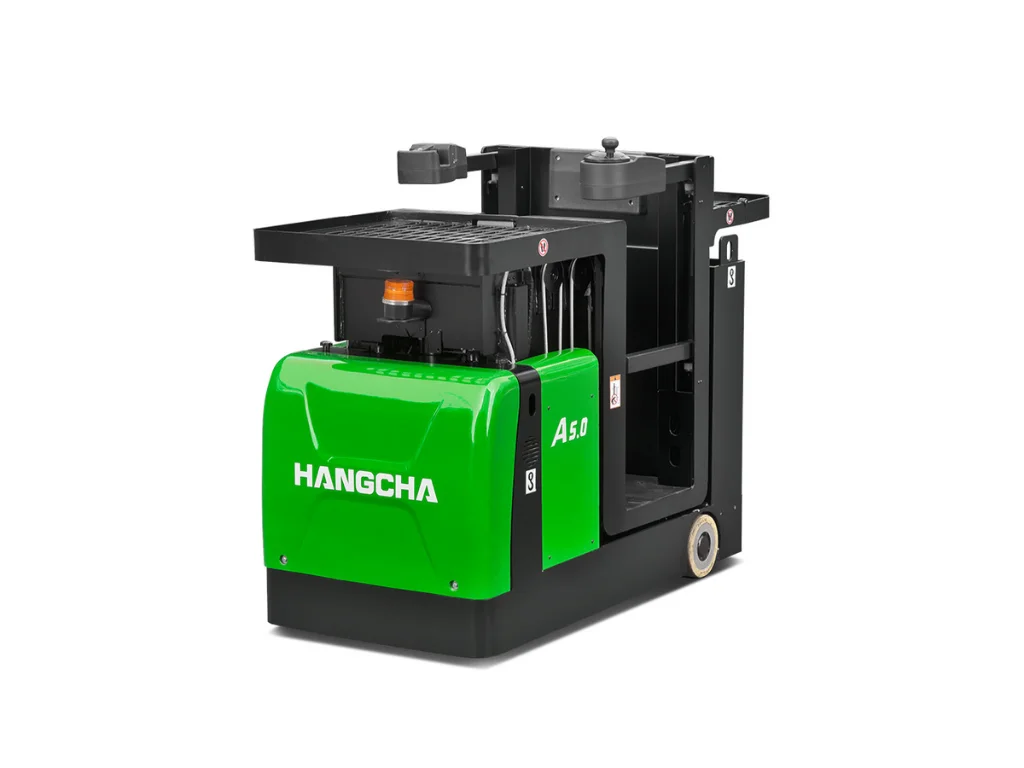

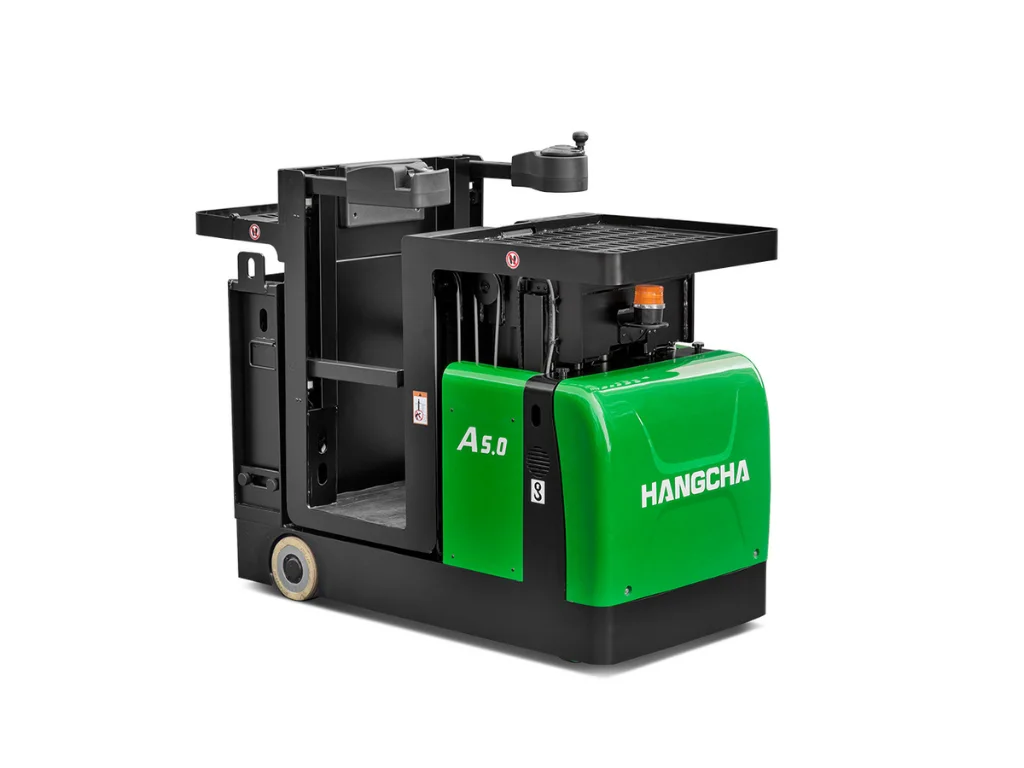

The A Series 0.5 t order picker is a compact lithium-ion stock picker for small loads in receiving, shipping and put-away, such as retail and manufacturing stores. The operator platform rises on a low mast with a load tray in front and a second tray behind, so items are picked by hand rather than on forks.
- Load split: up to 250 kg on the front tray, 150 kg on the standing platform and 100 kg on the rear tray, which folds away in confined spaces.

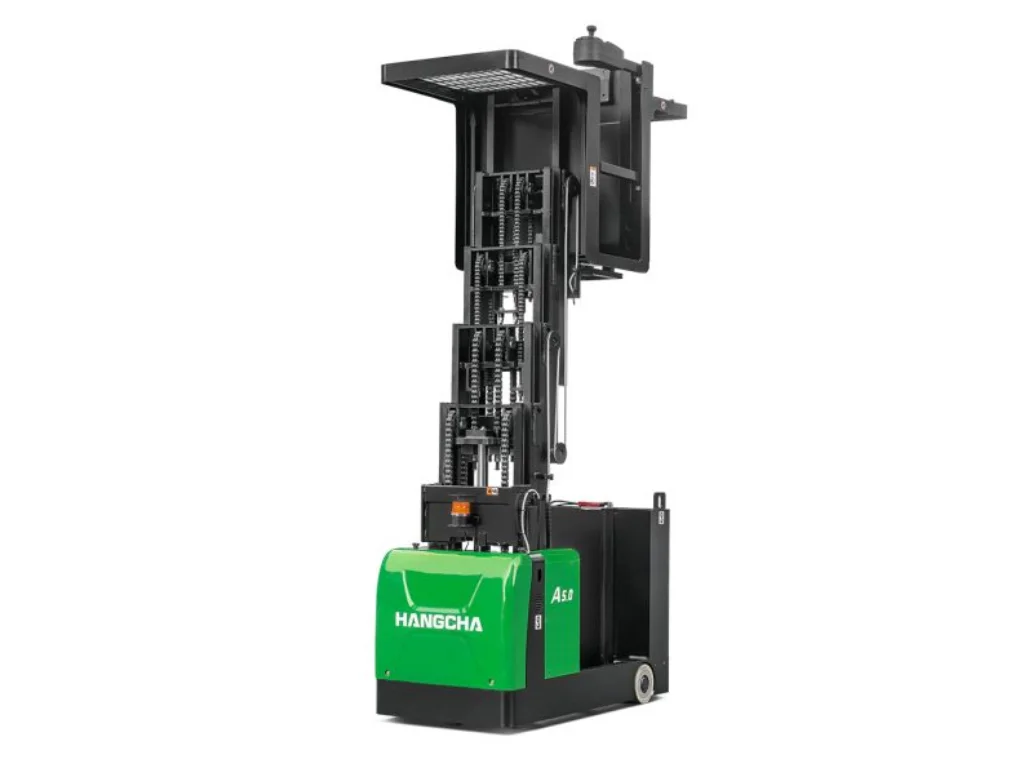

- Lift height: a 3,700 mm standard lift, or a 2,960 mm lift as an option.
- Space: 800 mm wide, with a 1,343 mm turning radius and a 2,040 mm channel width.

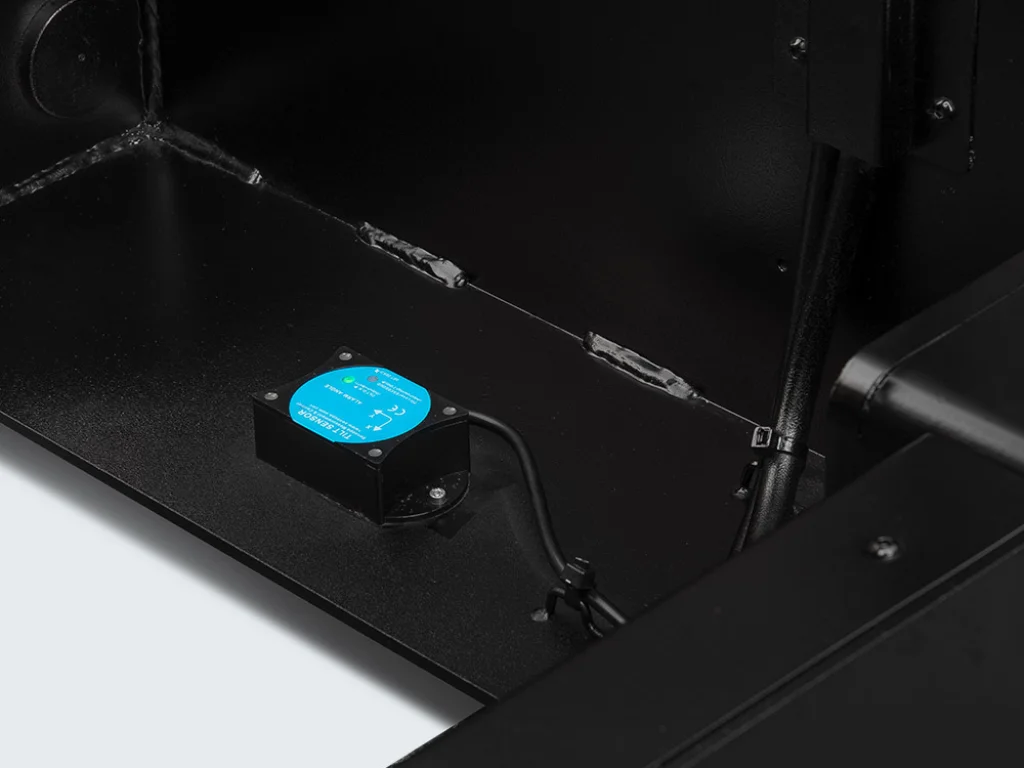

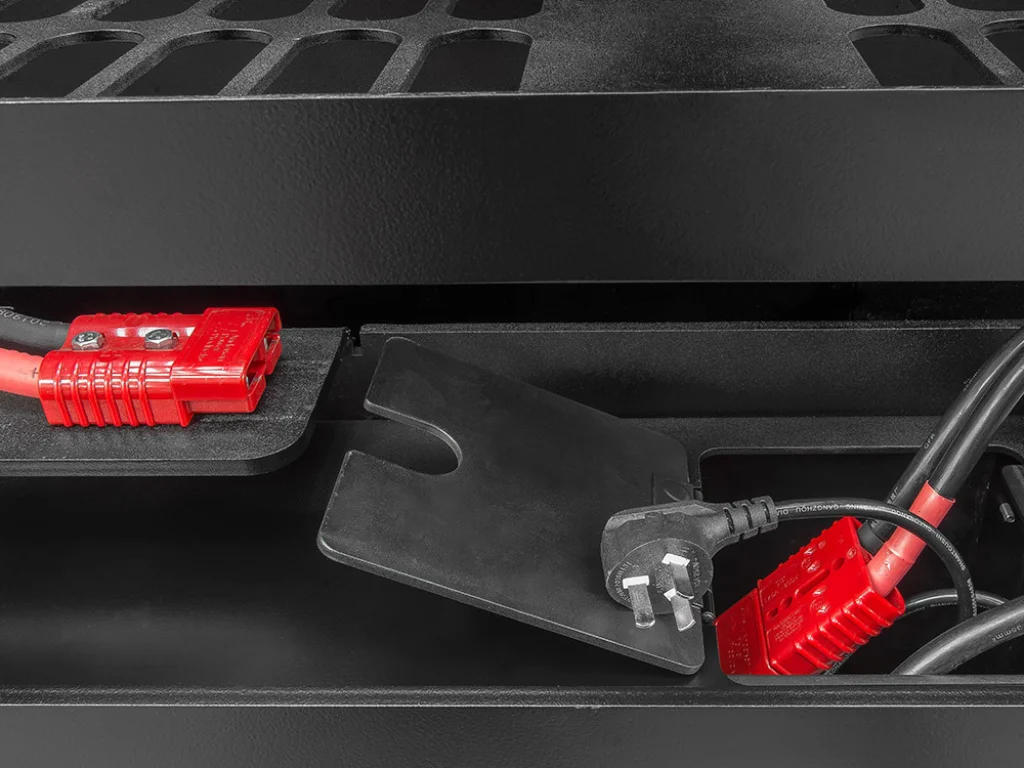

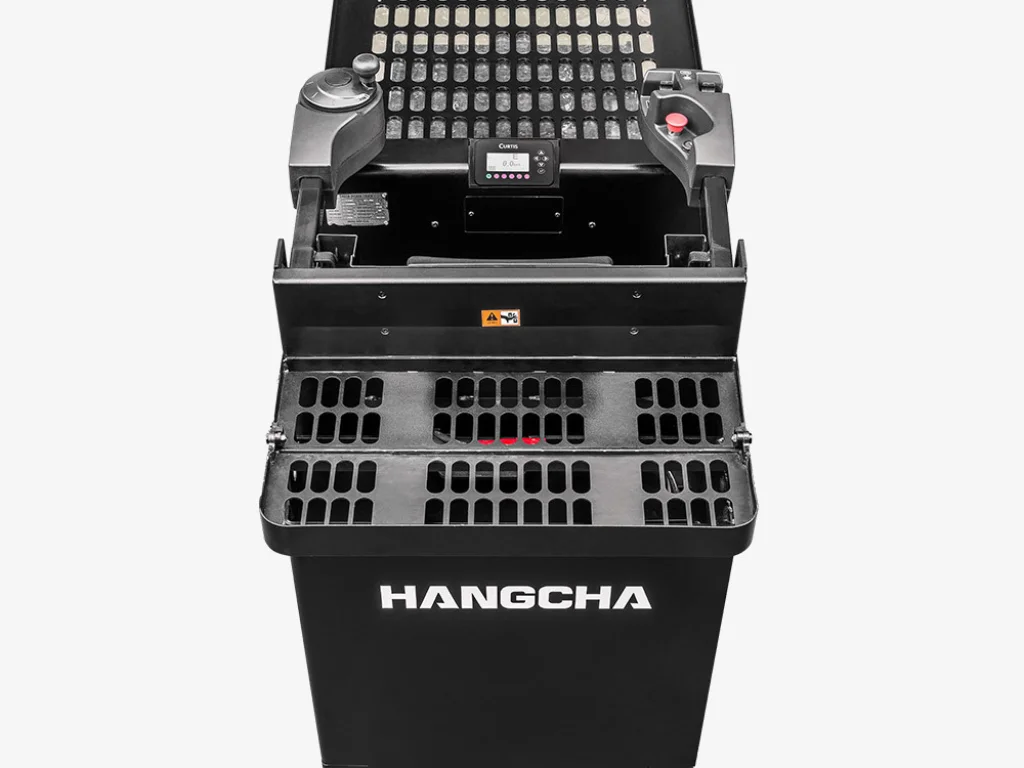

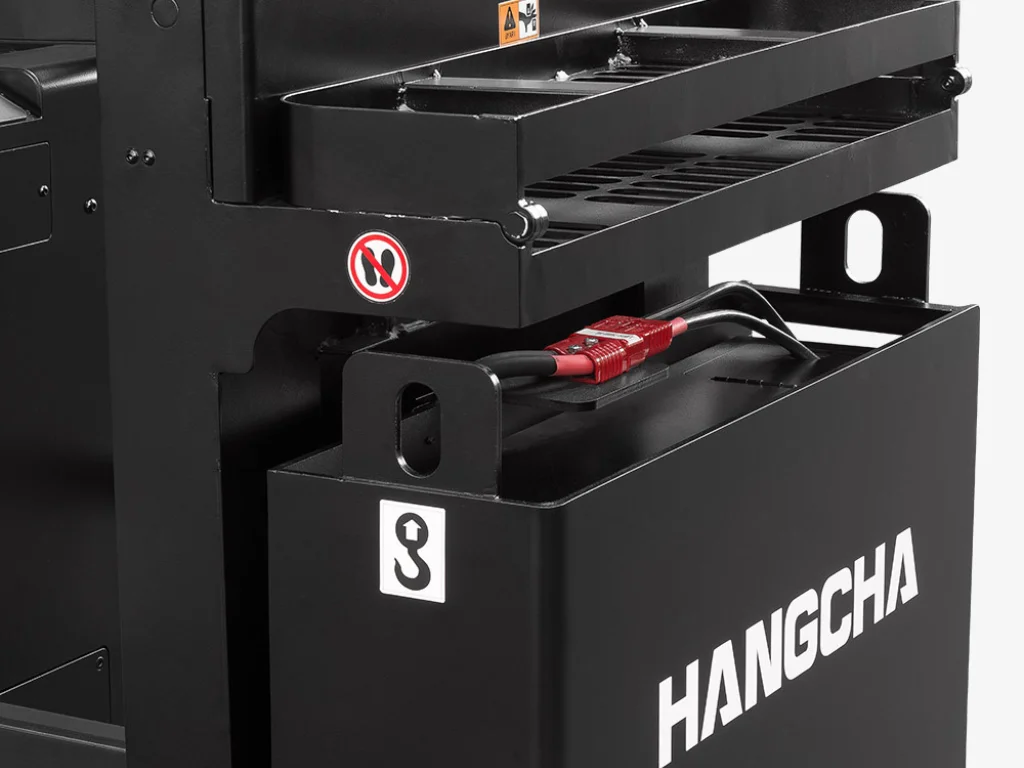

The truck can travel and lift at the same time at up to 5.5 km/h, slowing automatically as the platform rises and in corners. Guardrails with detection switches must be down before it moves, safety pedals stop travel and lifting when a foot is lifted, and a tilt sensor guards against excessive slopes. A 24V/125Ah lithium-ion battery with a built-in charger rolls out from the side. For heavier loads picked at height, see the A Series high-level order picker 1.2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Travel and Lift Together
Travel and lift run simultaneously, with speed adjusted to lift height and cornering.
Guardrail and Pedal Sensors
Guardrail switches and pedal sensors check the operator is properly positioned.
Full Specifications
| Capacity | 0.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 3.7 m |
| Operator Type | Standing platform / order picker |
| Minimum Aisle Width | 2,040mm |
| Battery Type | Li-ion, 24V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CJD02
| Model | Front tray | Standing platform | Rear tray | Max lift | Turning radius | Channel width |
|---|---|---|---|---|---|---|
| CJD05-AC1-MNAI | 250 kg | 150 kg | 100 kg | 3,700 mm | 1,343 mm | 2,040 mm |
A 2,960 mm lift is optional. One operator, no passengers. Figures from the Hangcha Forklift Canada A Series electric stock picker brochure.
