X Series Tow Tractor 2-3 t
- Indoor
- Outdoor
- Warehouse

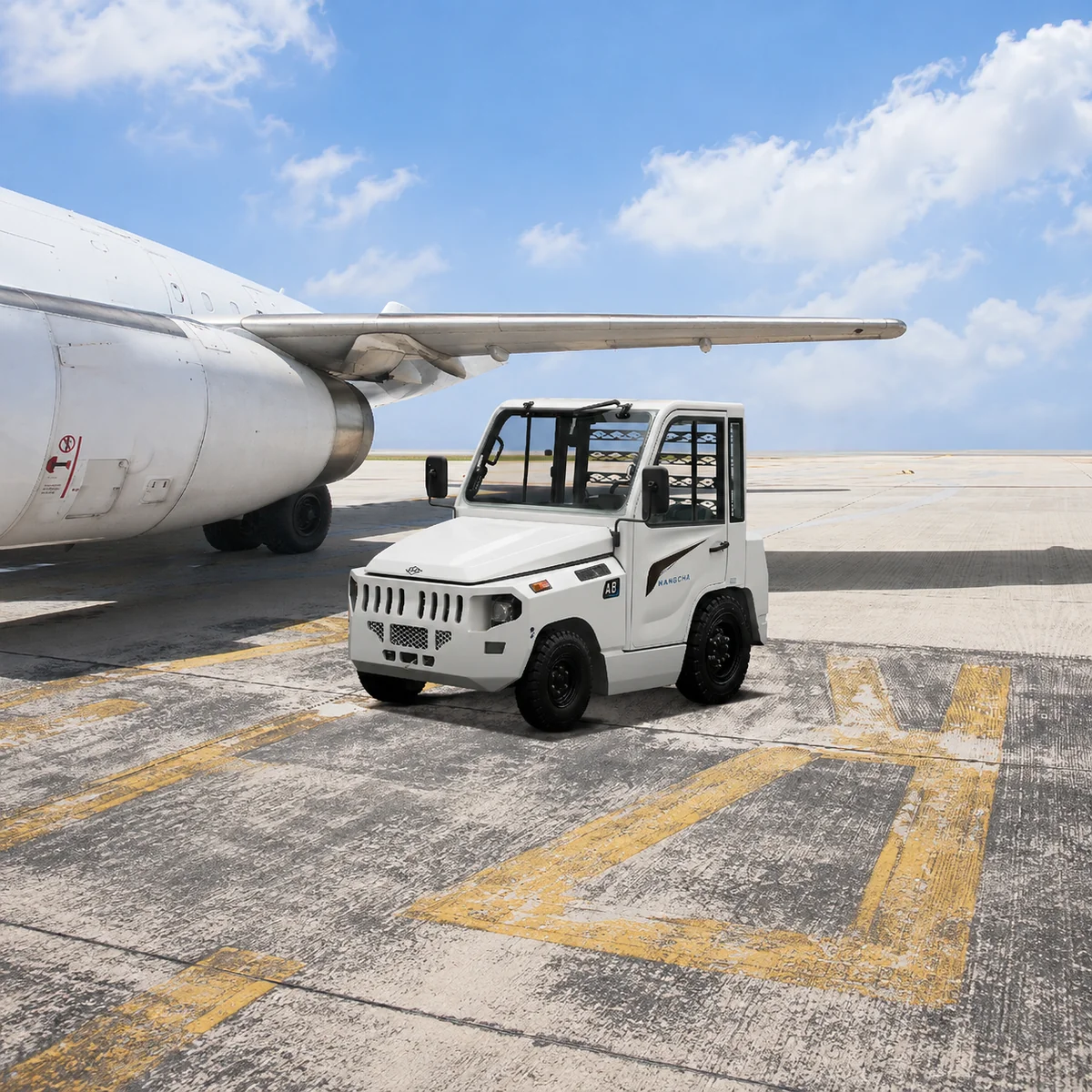

A seated diesel tow tractor with 20,000-30,000 N of maximum drawbar pull and up to 29 km/h unladen. It suits heavy trailer trains on long outdoor runs, such as airports and large industrial sites.
20-30 kN
Drawbar Pull
IC
Power
Up to 29km/h unladen
Speed
Warranty & Support
12 Months / 2,000 Hours Warranty · DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
X Series at a Glance
The Hangcha X Series 2-3 t tractor is a seated diesel tow tractor for pulling heavy trailers over long runs, such as airports and large industrial sites. Maximum drawbar pull is 20,000 N on the QCD20, 25,000 N on the QCD25 and 30,000 N on the QCD30. The 2-3 t in the name isn't the towing load: the rated towing weight is 26-36 tonnes with one trailer and 39-54 t with two, so this IC tow tractor handles much heavier trains than the name suggests.
- Engines: all versions are diesel, with a Cummins F2.8 (36 kW), Xinchai 4D29 (36.8 kW), Yanmar 4TNE98 (42.1 kW) or Xinchai 4E30 (55.8 kW), depending on model.
- Driving: 23-29 km/h unladen depending on version, up to 30% gradeability unladen and a 3,250 mm turning radius.
- Size: 3,080 mm long, 1,480 mm wide and 1,890 mm to the top of the overhead guard, with a 450 mm coupling height and a service weight of 3,280-4,080 kg.
- Transmission: hydraulic, with 2 forward gears and 1 reverse, a self-limiting gear shifter and an 80 L fuel tank. An automatic gear change is optional.
The front end and beams are made from 16 mm steel plate, so it can push as well as tow, and the coupling has a safety buckle and self-locking function so the pin can't jump out. A vacuum-boosted, dual-circuit system brakes all wheels and still assists braking if the engine stops, and the synchronous steering needs less than 10 N of force. Options include a fully enclosed cab, air conditioning, solid tyres, a rear work light, a speed limit alarm and a different pin height. Heavier trains need the X Series tow tractor 3.5-8 t.
Practical Features for Daily Operation
IC Engine Power
Low-speed, high-torque engine with an efficient gearbox for steady towing.
Wide-Open Hood
Engine, tanks, oil pump, steering gear and brake master cylinder are easy to reach for checks.
Digital Instrument Panel
LCD instruments, rocker switches and a speedometer give clear operating feedback.
Full Specifications
| Drawbar Pull | 20-30 kN |
|---|---|
| Power | IC |
| Speed | Up to 29km/h unladen |
| Towing Weight (1 Trailer) | 26-36 t |
| Turning Radius | 3,250mm |
| Gradeability | Up to 30% unladen |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- QCD20
- QCD25
- QCD30
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
