X Series Platform Truck 8-16 t
A platform truck range for warehouse, indoor and outdoor operations, with an 8-16 tonne payload, electric drive and Li-ion / Lead-acid, 80/96 V power options for day-to-day site haulage.
8-16 t
Capacity
Li-ion / Lead-acid
Power
Up to 18km/h
Speed
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 8-16 t Platform Truck

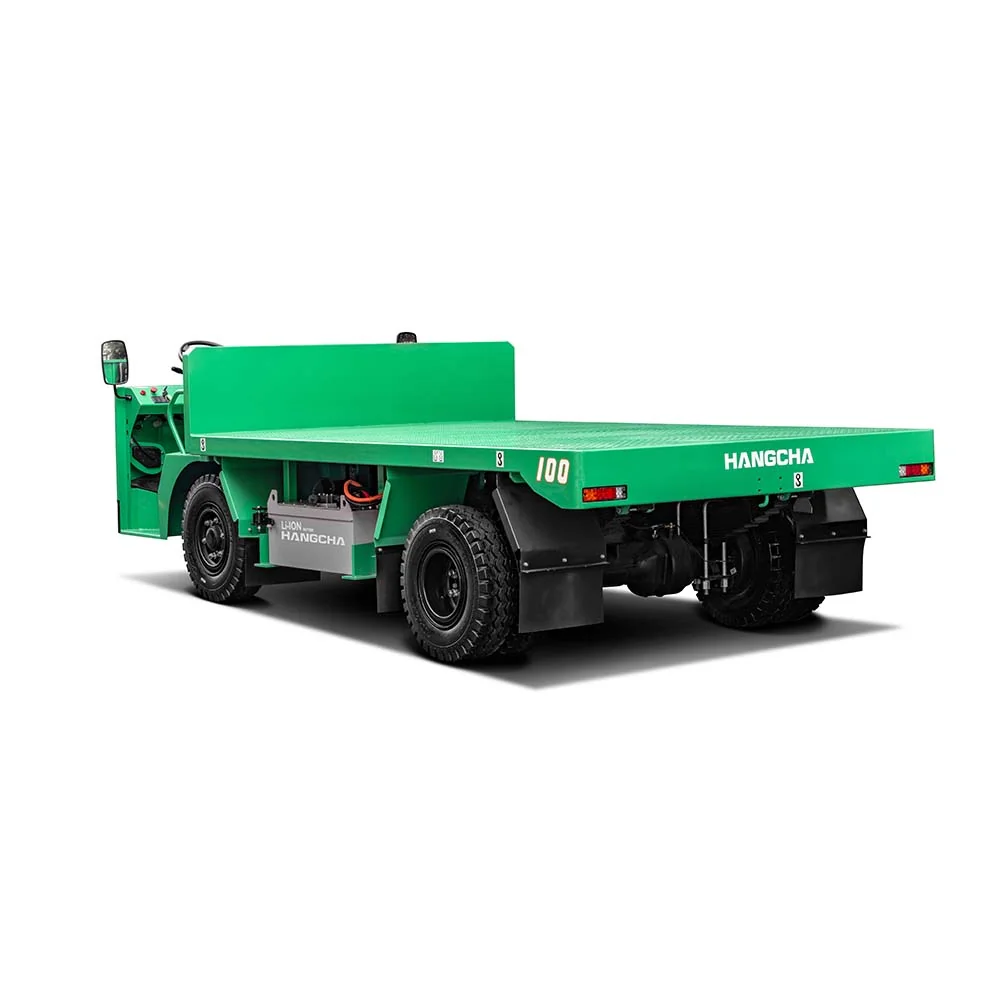

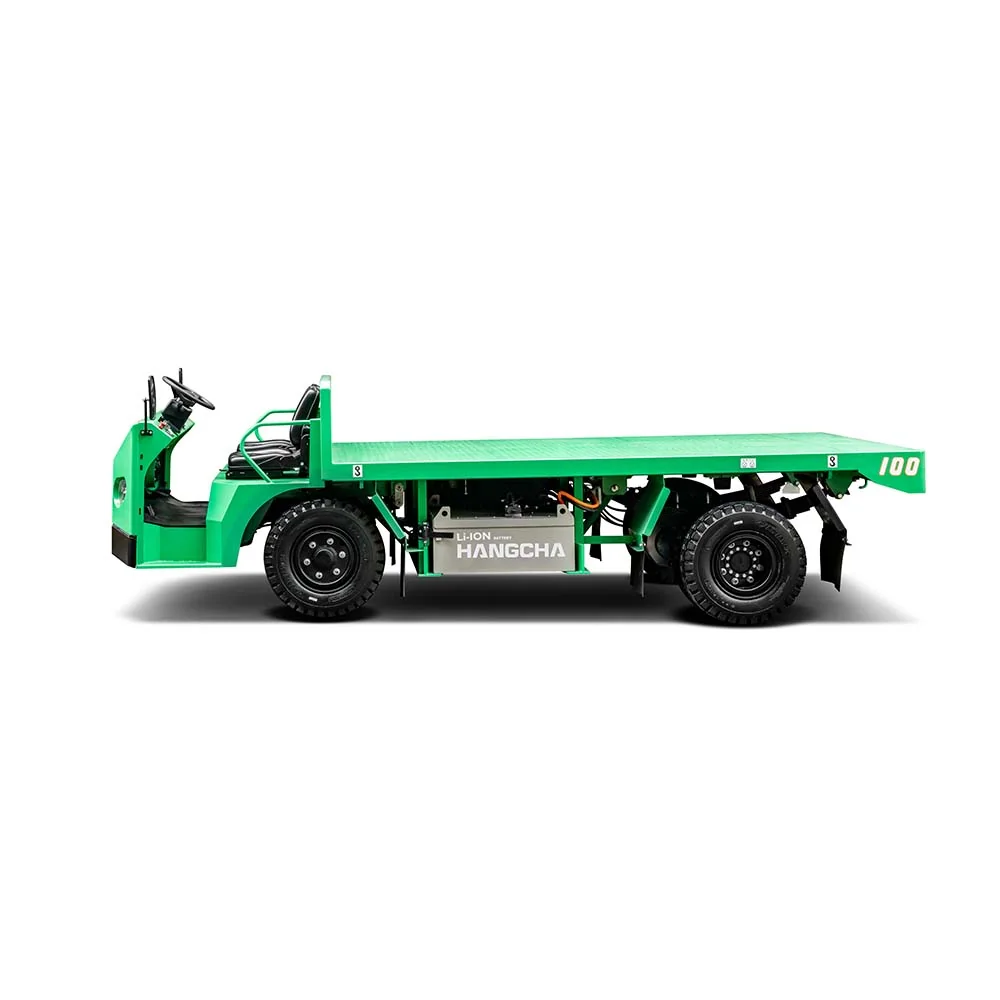

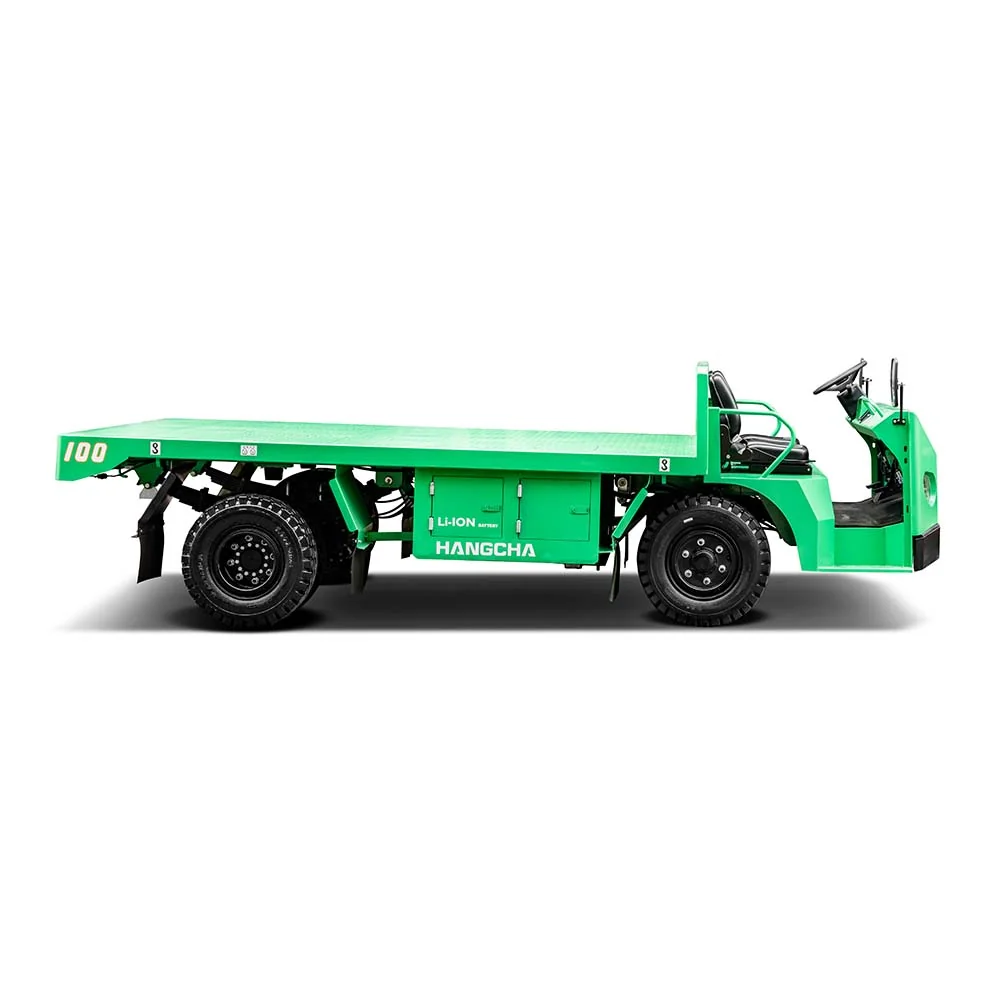

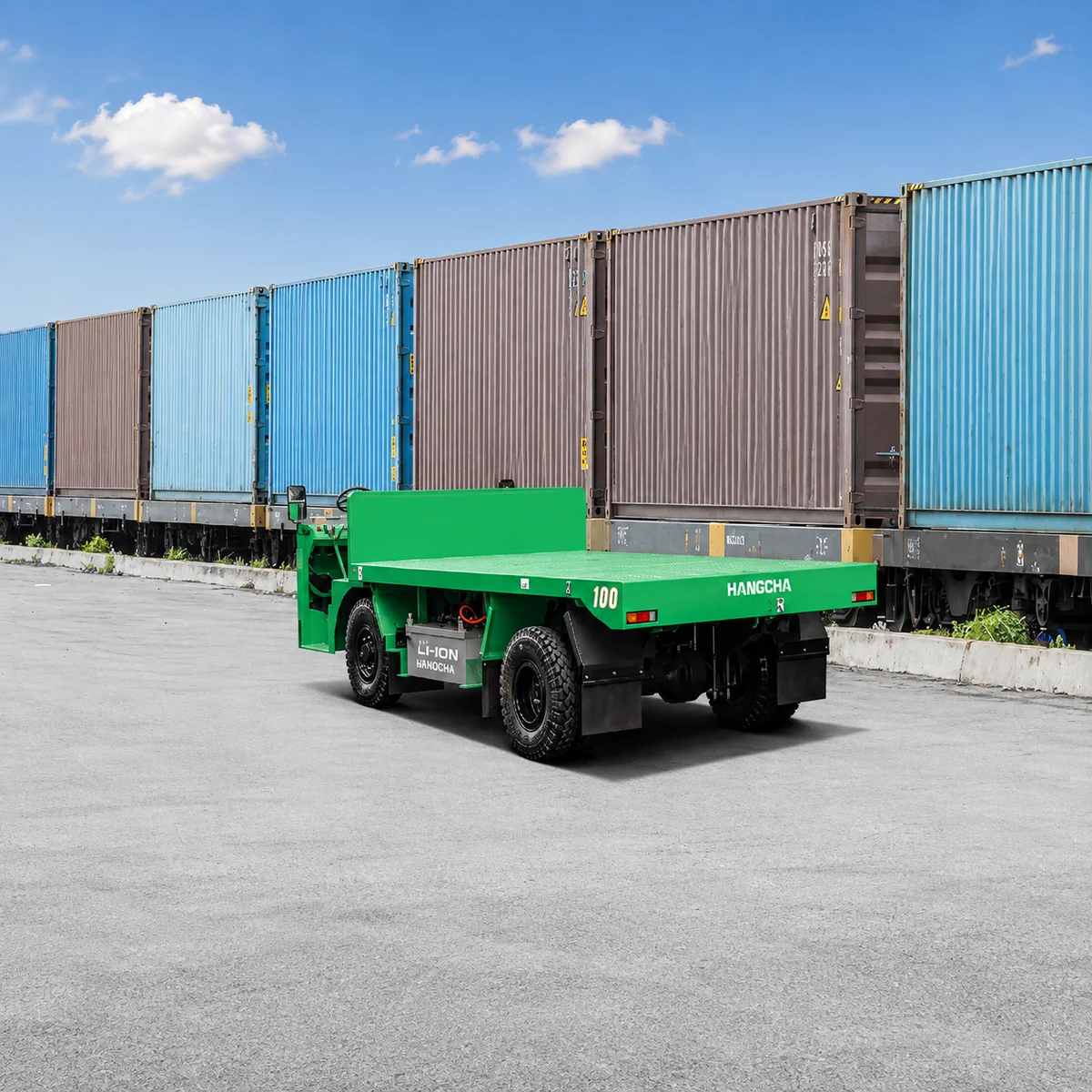

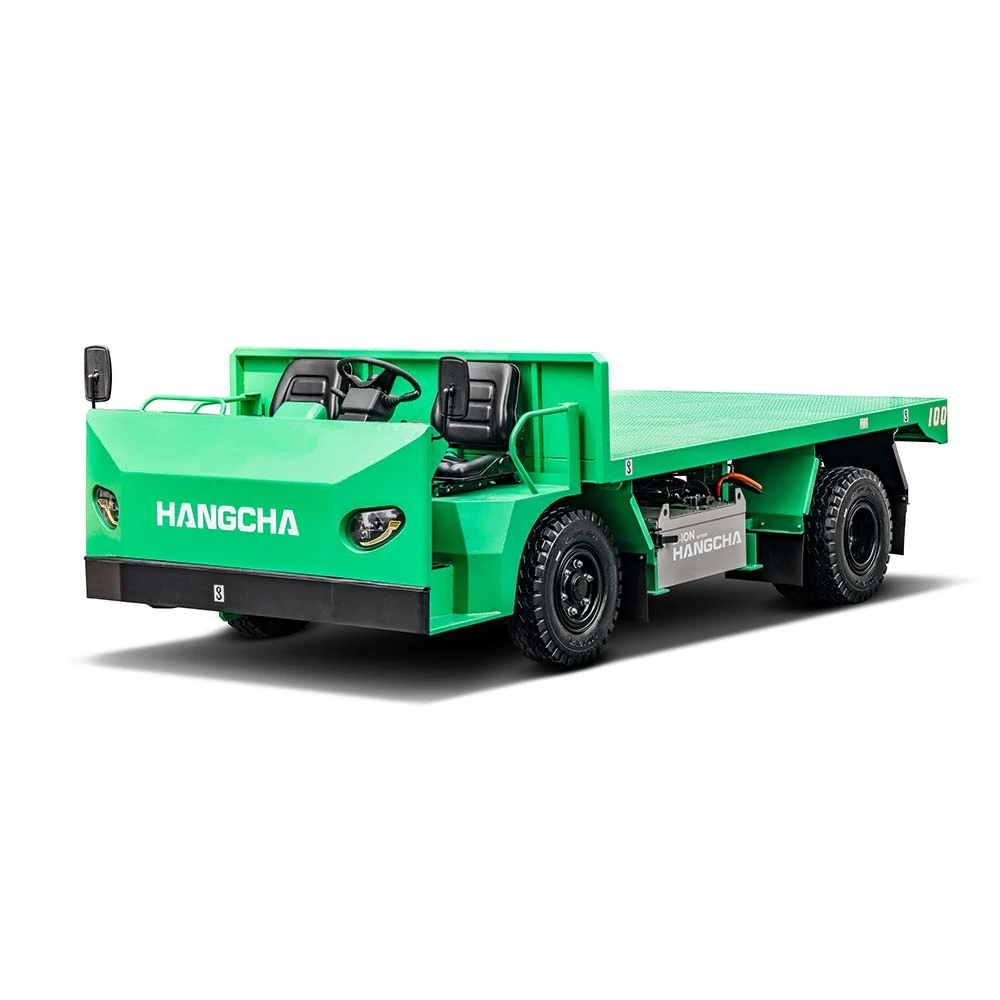

The X Series platform truck carries 8-16 t on its own deck, for short and medium-distance handling in railway and automotive plants. Unlike a tow tractor, it carries the load itself, so the frame, drive axle and steering axle are built with a large margin for heavy loads, and the battery sits low in the frame for stability.
- BD80 (8,000 kg): a 3,200 x 1,800 mm deck, an 80V lead-acid or lithium battery, 4 wheels and a 4,150 mm turning radius.
- BD100 (10,000 kg): a wider 3,200 x 2,050 mm deck on 6 wheels, with the same 12 kW motor and 4,150 mm turning radius.
- BD160 (16,000 kg): lithium only, at 96V/304Ah, with a 4,000 x 2,050 mm deck, an 18 kW motor and a 4,650 mm turning radius.
The 8 t and 10 t models travel at 10 km/h laden and 18 km/h unladen with 10% laden gradeability, and the 16 t reaches 9 and 15 km/h with 6%. The lithium battery weighs 180-220 kg against 670-760 kg for lead-acid, lifts out from the side and has a 6-year or 12,000-hour warranty. An enclosed cab, platform rails and longer decks up to 6 m are options. The X Series tow tractor 6-18 t tows trailers instead of carrying the load.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
8-16 t Platform Payload
Platform payloads from 8 t to 16 t for carrying heavy goods between work areas.
Travel Speeds to 18 km/h
Travel speeds of up to 18 km/h for covering longer distances across large sites.
Full Specifications
| Capacity | 8-16 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Speed | Up to 18km/h |
| Max Travel Speed | Up to 18km/h |
| Turning Radius | 4,150-4,650mm |
| Gradeability | Up to 10% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- BD80
- BD100
- BD160
| Model | Rated load | Deck (L x W) | Battery | Turning radius | Laden / unladen travel | Service weight |
|---|---|---|---|---|---|---|
| BD80-XC1 / BD80-XC1-I | 8,000 kg | 3,200 x 1,800 mm | 80V 250Ah lead-acid / 230Ah lithium | 4,150 mm | 10 / 18 km/h | 3,040 / 2,550 kg |
| BD100-XC1 / BD100-XC1-I | 10,000 kg | 3,200 x 2,050 mm | 80V 300Ah lead-acid / 230Ah lithium | 4,150 mm | 10 / 18 km/h | 3,449 / 2,800 kg |
| BD160-XC1-I | 16,000 kg | 4,000 x 2,050 mm | 96V 304Ah lithium | 4,650 mm | 9 / 15 km/h | 3,465 kg |
Where two weights are given, the first is the lead-acid version and the second the lithium version. Figures from the Hangcha X Series electric platform truck brochure (8-16 t, 2026).
