X Series Tow Tractor 6-18 t
A tow tractor range for warehouse, indoor and outdoor operations, with a 6-18 t towing capacity, electric drive and Li-ion / Lead-acid, 48/80 V power options for day-to-day site towing duties.
6-18 t
Capacity
Li-ion / Lead-acid
Power
Up to 23km/h
Speed
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 6-18 t Tow Tractor
The X Series 6-18 t is a seated electric tow tractor, upgraded from Hangcha's earlier 6-18 t range and pictured towing airport baggage. Each capacity comes with a lead-acid battery or, on the (I) models, a lithium iron phosphate battery with a 6-year or 12,000-hour warranty.
- QSD60, QSD80 and QSD100 (6-10 t, XD3): 996 mm wide with a 2,400 mm turning radius, a 4.5 kW motor and an 18 km/h top speed on a 48V battery.
- QSD120, QSD150 and QSD180 (12-18 t, XC1): a 16 kW motor and 80V battery with a 23 km/h top speed, a 2,600 mm turning radius and electric power steering as standard.
- MITS versions (12-18 t): a short 1,240 mm wheelbase and an 80V lithium battery cut the turning radius to 1,720 mm for tight sites.

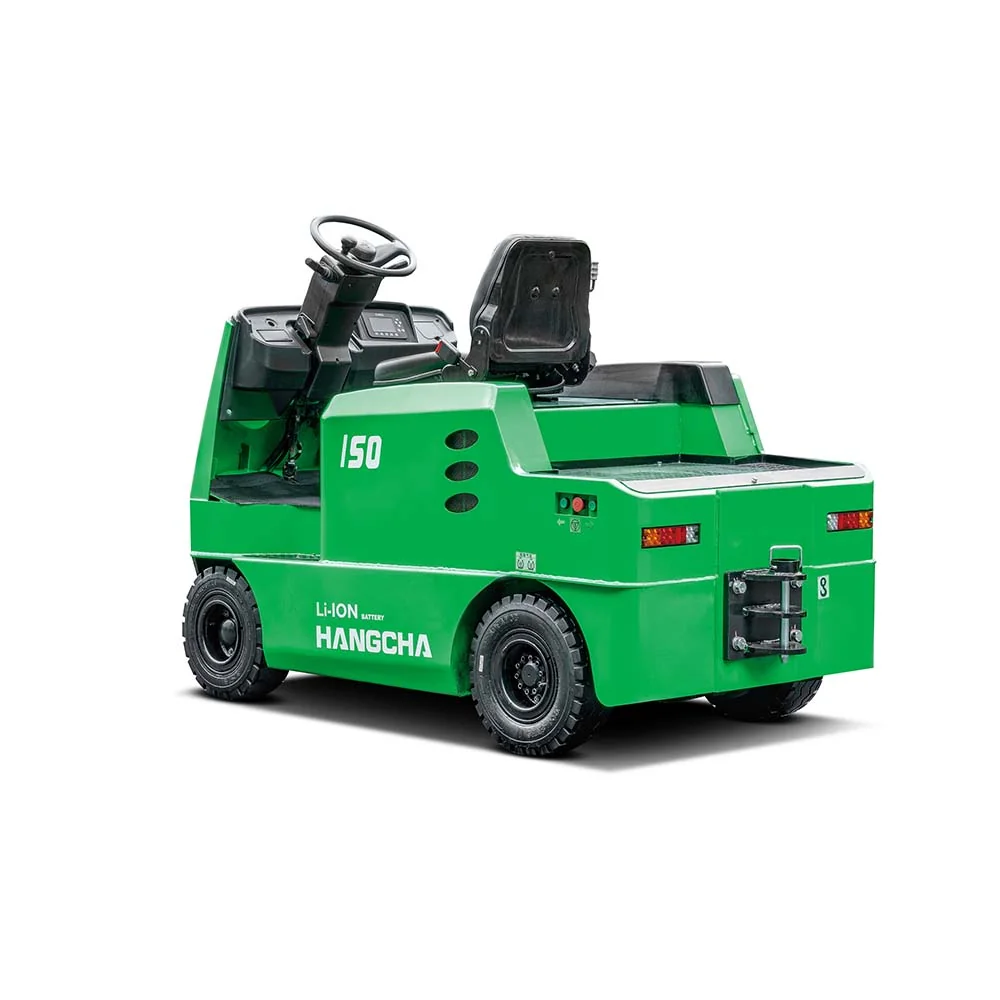

All models climb up to 25% unladen, brake on front and rear wheels and have an electronic parking brake. Switches at the front and rear plus an emergency shut-off at the back make hooking up safer, and a canopy or fully enclosed cab is optional. For tow loads up to 32 t, see the X Series tow tractor 10-32 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Tows 6-18 t
Towing capacities of 6-18 t for moving loaded trailers and carts around the site.
Travel Speeds to 23 km/h
Travel speeds of up to 23 km/h and gradeability of up to 25% for site towing runs.
Full Specifications
| Capacity | 6-18 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Speed | Up to 23km/h |
| Max Travel Speed | Up to 23km/h |
| Turning Radius | 1,720-2,600mm |
| Gradeability | Up to 25% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- QSD60
- QSD80
- QSD100
- QSD150
- QSD120
- QSD180
| Model | Rated capacity | Rated / max drawbar pull | Battery (lead-acid / lithium) | Turning radius | Top speed | Service weight |
|---|---|---|---|---|---|---|
| QSD60-XD3-M(I) | 6,000 kg | 1,500 / 4,500 N | 48V 300Ah / 268Ah | 2,400 mm | 18 km/h | 1,200 kg |
| QSD80-XD3-M(I) | 8,000 kg | 2,000 / 6,000 N | 48V 360Ah / 268Ah | 2,400 mm | 18 km/h | 1,300 kg |
| QSD100-XXD3-M(I) | 10,000 kg | 2,500 / 7,500 N | 48V 420Ah / 400Ah | 2,400 mm | 18 km/h | 1,550 kg |
| QSD120-XC1-M(I) | 12,000 kg | 3,800 / 12,000 N | 80V 375Ah / 302Ah | 2,600 mm | 23 km/h | 2,230 kg |
| QSD120-XC1-MITS | 12,000 kg | 3,800 / 12,000 N | 80V 302Ah lithium | 1,720 mm | 23 km/h | 1,900 kg |
| QSD150-XC1-M(I) | 15,000 kg | 4,500 / 15,000 N | 80V 450Ah / 302Ah | 2,600 mm | 23 km/h | 2,470 kg |
| QSD150-XC1-MITS | 15,000 kg | 4,500 / 15,000 N | 80V 302Ah lithium | 1,720 mm | 23 km/h | 1,950 kg |
| QSD180-XC1-M(I) | 18,000 kg | 4,800 / 16,000 N | 80V 450Ah / 456Ah | 2,600 mm | 23 km/h | 2,470 kg |
| QSD180-XC1-MITS | 18,000 kg | 4,800 / 16,000 N | 80V 456Ah lithium | 1,720 mm | 23 km/h | 2,220 kg |
Max drawbar pull is the 5-minute rating. Service weight for M(I) models is the lead-acid version. Figures from the Hangcha X Series electric tow tractor brochure (6-18 t, 2025).
