X Series Tow Tractor 10-32 t
A tow tractor range for warehouse, indoor and outdoor operations, with a 10-32 t towing capacity, electric drive and Li-ion / Lead-acid, 48/80/80.5 V power options for day-to-day site towing duties.
10-32 t
Capacity
Li-ion / Lead-acid
Power
Up to 25km/h
Speed
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 10-32 t Tow Tractor

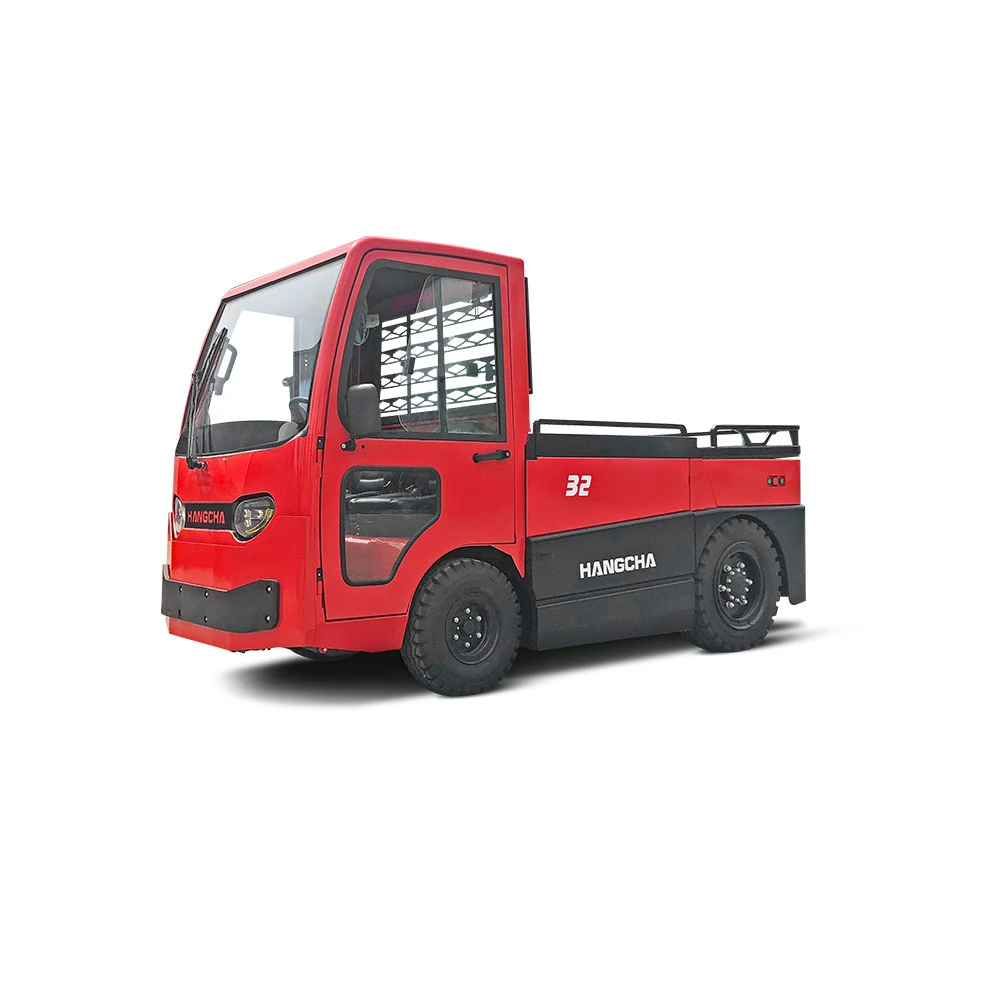

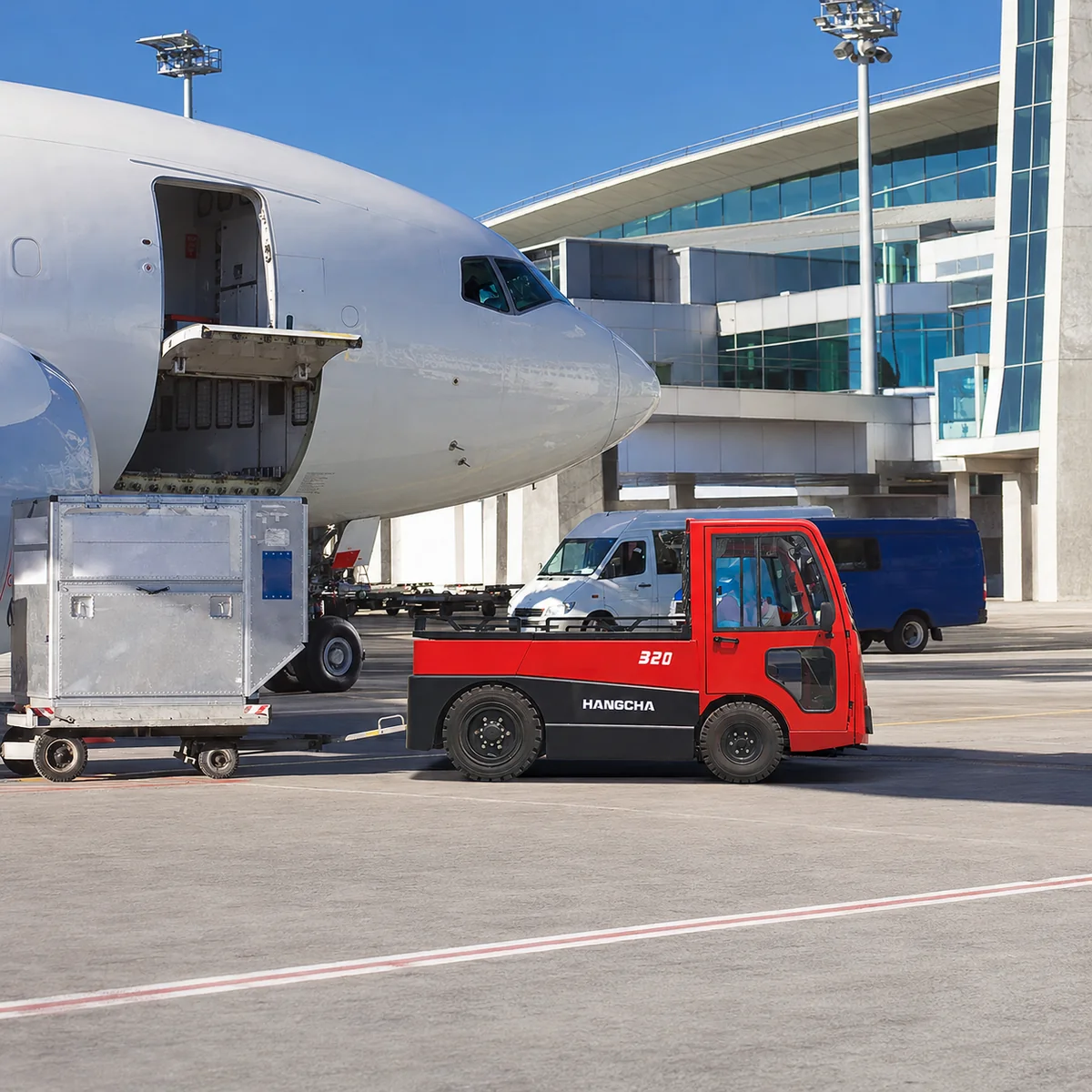

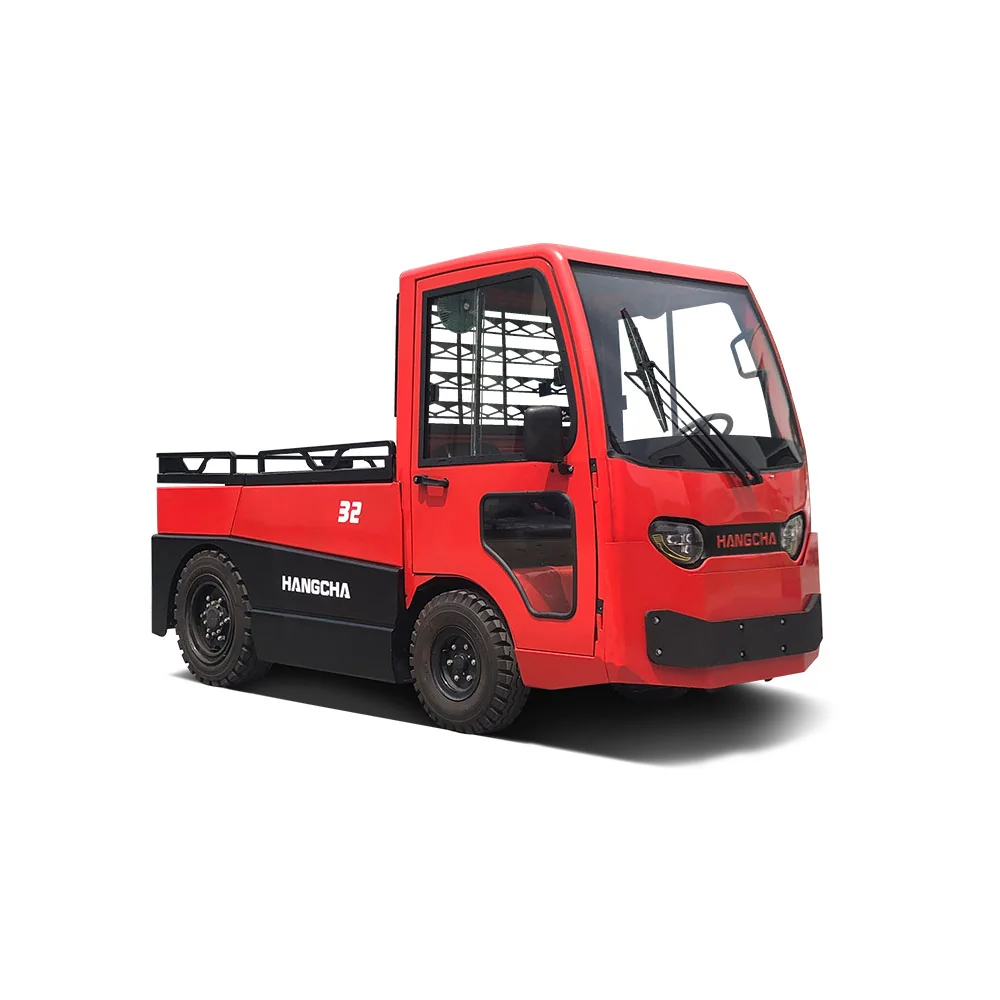

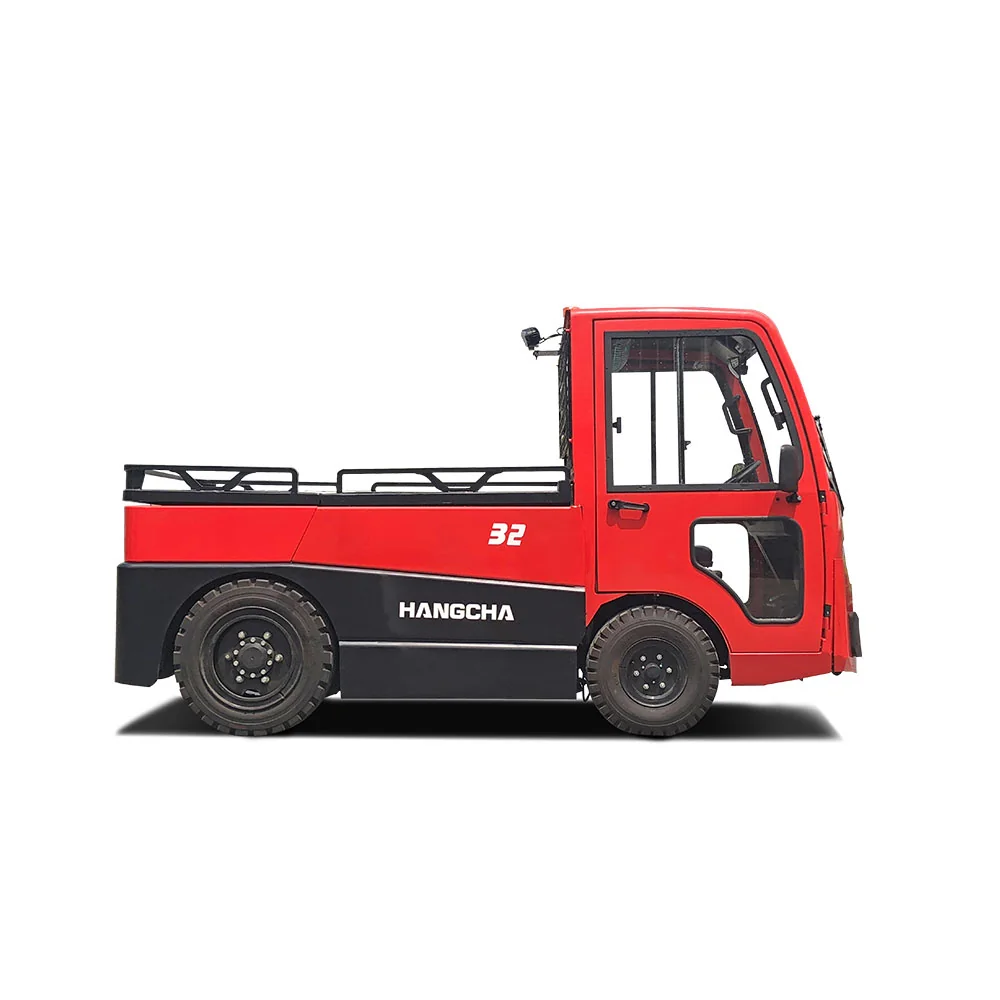

The X Series 10-32 t is a heavy electric tow tractor with a fully enclosed cab as standard, built for towing, pushing and handling, such as on airport aprons. Standard and lithium (I) versions are offered, and the battery sits low between the axles for stability.
- QSD100 and QSD150 (10-15 t, XC2): lithium batteries at 48V or 80V, 8-16 kW motors, a 20 km/h top speed and a 2,500-2,750 mm turning radius.
- QSD200, QSD250 and QSD320 (20-32 t, XD3): a 30 kW motor, a 25 km/h top speed, up to 33% unladen gradeability and an electronic parking brake as standard.
- Standard or long (L) chassis: on the 25 t and 32 t models, the long version has a 1,760 mm wheelbase and a 1,925 mm rear loading surface, against 1,475 mm and 1,640 mm, with a 3,350 mm turning radius against 2,825 mm.
Vacuum servo brakes work on all wheels in a dual X-circuit and still assist if power fails, and the AC controller adds regenerative braking and anti-slip on ramps. The rear floor doubles as a loading platform, and steering needs less than 10 N of force. For lighter trains up to 18 t, see the X Series tow tractor 6-18 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Tows 10-32 t
Towing capacities of 10-32 t for moving trailer trains of heavy goods around the site.
Travel Speeds to 25 km/h
Travel speeds of up to 25 km/h help cover long internal routes between work areas.
Full Specifications
| Capacity | 10-32 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Speed | Up to 25km/h |
| Max Travel Speed | Up to 25km/h |
| Turning Radius | 2,500-3,350mm |
| Gradeability | Up to 33% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- QSD100
- QSD150
- QSD200
- QSD250
- QSD320
| Model | Rated capacity | Rated / max drawbar pull | Battery | Wheelbase | Turning radius | Service weight |
|---|---|---|---|---|---|---|
| QSD100-XC2-ISY | 10,000 kg | 3,200 / 10,000 N | 48V / 456Ah lithium | 1,210 mm | 2,500 mm | 2,150 kg |
| QSD150-XC2-ISY | 15,000 kg | 4,000 / 14,000 N | 80V / 456Ah lithium | 1,410 mm | 2,750 mm | 2,550 kg |
| QSD200-XD3 | 20,000 kg | 6,300 / 20,000 N | 80V / 500Ah | 1,475 mm | 2,825 mm | 3,450 kg |
| QSD200-XD3-I | 20,000 kg | 6,300 / 20,000 N | 80.5V / 456Ah lithium | 1,475 mm | 2,825 mm | 3,250 kg |
| QSD250-XD3 | 25,000 kg | 6,300 / 20,000 N | 80V / 500Ah | 1,475 mm | 2,825 mm | 3,650 kg |
| QSD250-XD3-L | 25,000 kg | 6,300 / 20,000 N | 80V / 775Ah | 1,760 mm | 3,350 mm | 4,350 kg |
| QSD250-XD3-IL | 25,000 kg | 6,300 / 20,000 N | 80V / 456Ah lithium | 1,760 mm | 3,350 mm | 3,850 kg |
| QSD320-XD3 | 32,000 kg | 7,000 / 26,000 N | 80V / 620Ah | 1,475 mm | 2,825 mm | 4,000 kg |
| QSD320-XD3-L | 32,000 kg | 7,000 / 26,000 N | 80V / 775Ah | 1,760 mm | 3,350 mm | 4,550 kg |
| QSD320-XD3-IL | 32,000 kg | 7,000 / 26,000 N | 80V / 456Ah lithium | 1,760 mm | 3,350 mm | 4,050 kg |
Figures from the Hangcha X Series electric tow tractor brochure (10-32 t, 2024).
