A Series Tow Tractor 3-5 t
A tow tractor range for warehouse, indoor and outdoor operations, with a 3-5 t towing capacity, electric drive and lead-acid or Li-ion 24V power options for day-to-day site towing duties.
3-5 t
Capacity
Lead-acid / Li-ion
Power
Up to 10km/h
Speed
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series 3-5 t Tow Tractor: Capacity and Battery

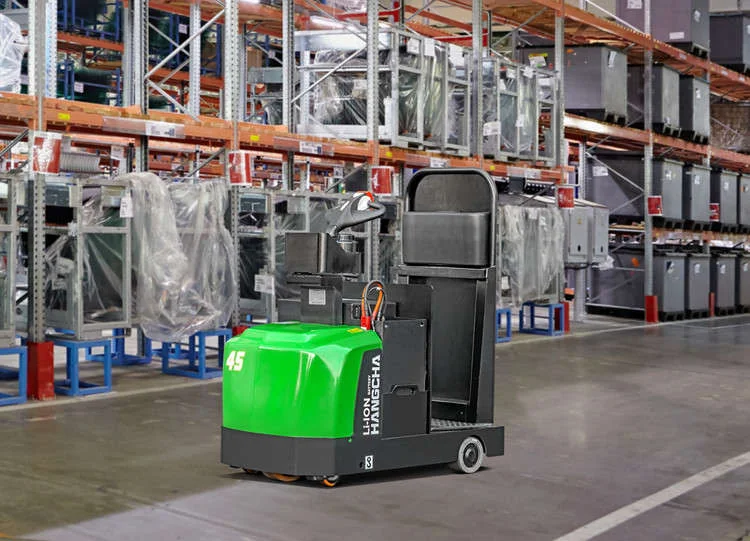

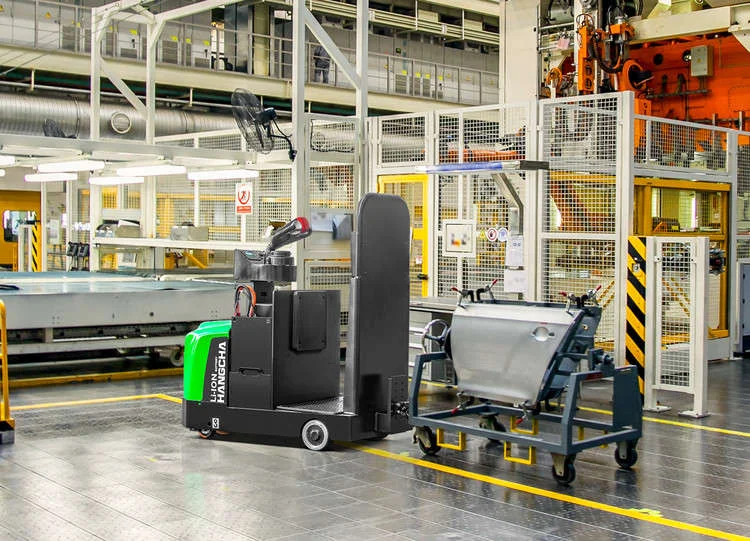

The Hangcha A Series electric tow tractor is a compact stand-on tractor for pulling trolleys and trailers around warehouses and factories. It comes in two towing capacities, 3,000 kg (QDD3) and 5,000 kg (QDD5), and each is offered with a standard 24V lead-acid battery or as an -I version with a 24V lithium iron phosphate battery.
- QDD3: tows 3,000 kg with a 2.2 kW AC drive motor, a rated drawbar pull of 600 N and up to 2,400 N for 5 minutes. Service weight is 900 kg.
- QDD5: tows 5,000 kg with a 3 kW motor, 1,000 N rated drawbar pull and up to 3,200 N for 5 minutes. Service weight is 1,000 kg.
- Battery: lead-acid 24V/270Ah (QDD3) or 24V/360Ah (QDD5), with larger packs optional. The lithium versions use 24V/125Ah or 228Ah, charge fully in 2 hours and carry a 6-year or 12,000-hour warranty.

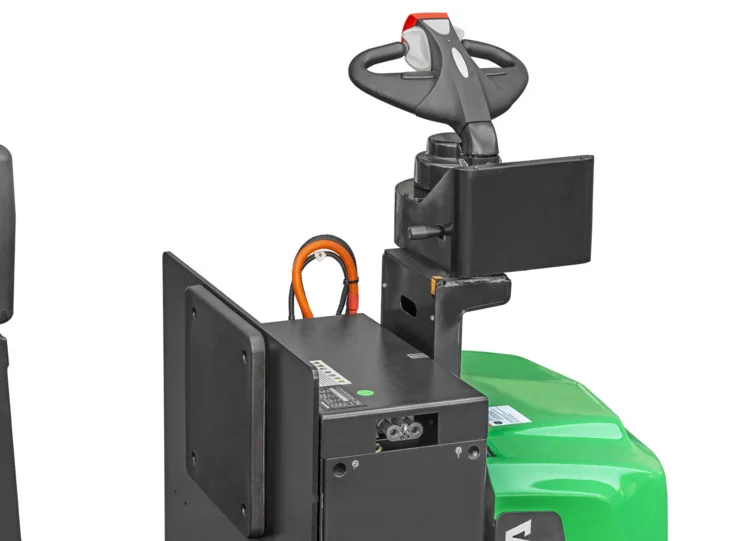

Every model is 830 mm wide and travels at 7 km/h laden and 10 km/h unladen, with a laden gradeability of 4%. The lithium versions are 38 mm longer, so the turning radius is 1,210 mm against 1,172 mm for lead-acid. The operator stands on a shock-absorbing pedal with an adjustable backrest, and electric steering, a multi-function handlebar and sideways battery change are standard. Warning and working lights, turn indicators and a different towing coupling height are optional. For a 48V lithium tractor in the same capacity range, compare the X Series tow tractor 3-5 t.
Practical Features for Daily Operation
Electric Power
Compact electric drive for towing in factories, warehouses and on flat outdoor paths.
Tight Turning Circle
A 1,172-1,210 mm turning radius for tight aisles and busy factory floors.
Triple Braking System
Triple braking, regenerative braking and automatic deceleration for controlled towing.
Full Specifications
| Capacity | 3-5 t |
|---|---|
| Power | Lead-acid / Li-ion |
| Speed | Up to 10km/h |
| Max Travel Speed | Up to 10km/h |
| Turning Radius | 1,172-1,210mm |
| Gradeability | Up to 4% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- QDD3-ASC2
- QDD3-ASC2-I
- QDD5-ASC2
- QDD5-ASC2-I
| Model | Towing capacity | Battery (standard) | Drive motor | Max drawbar pull (5 min) | Turning radius | Service weight |
|---|---|---|---|---|---|---|
| QDD3-ASC2 | 3,000 kg | 24V / 270Ah lead-acid | 2.2 kW | 2,400 N | 1,172 mm | 900 kg |
| QDD3-ASC2-I | 3,000 kg | 24V / 125Ah lithium | 2.2 kW | 2,400 N | 1,210 mm | 900 kg |
| QDD5-ASC2 | 5,000 kg | 24V / 360Ah lead-acid | 3 kW | 3,200 N | 1,172 mm | 1,000 kg |
| QDD5-ASC2-I | 5,000 kg | 24V / 228Ah lithium | 3 kW | 3,200 N | 1,210 mm | 1,000 kg |
Travel 7 km/h laden, 10 km/h unladen; laden gradeability 4% on all models. Figures from the Hangcha A Series electric tow tractor 3-5 t brochure (2025).
