X Series Tow Tractor 3-5 t
A tow tractor range for warehouse, indoor and outdoor operations, with a 3-5 t towing capacity, electric drive and Li-ion, 48 V power options for day-to-day site towing duties.
3-5 t
Capacity
Li-ion
Power
Up to 12.5km/h
Speed
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 3-5 t Tow Tractor

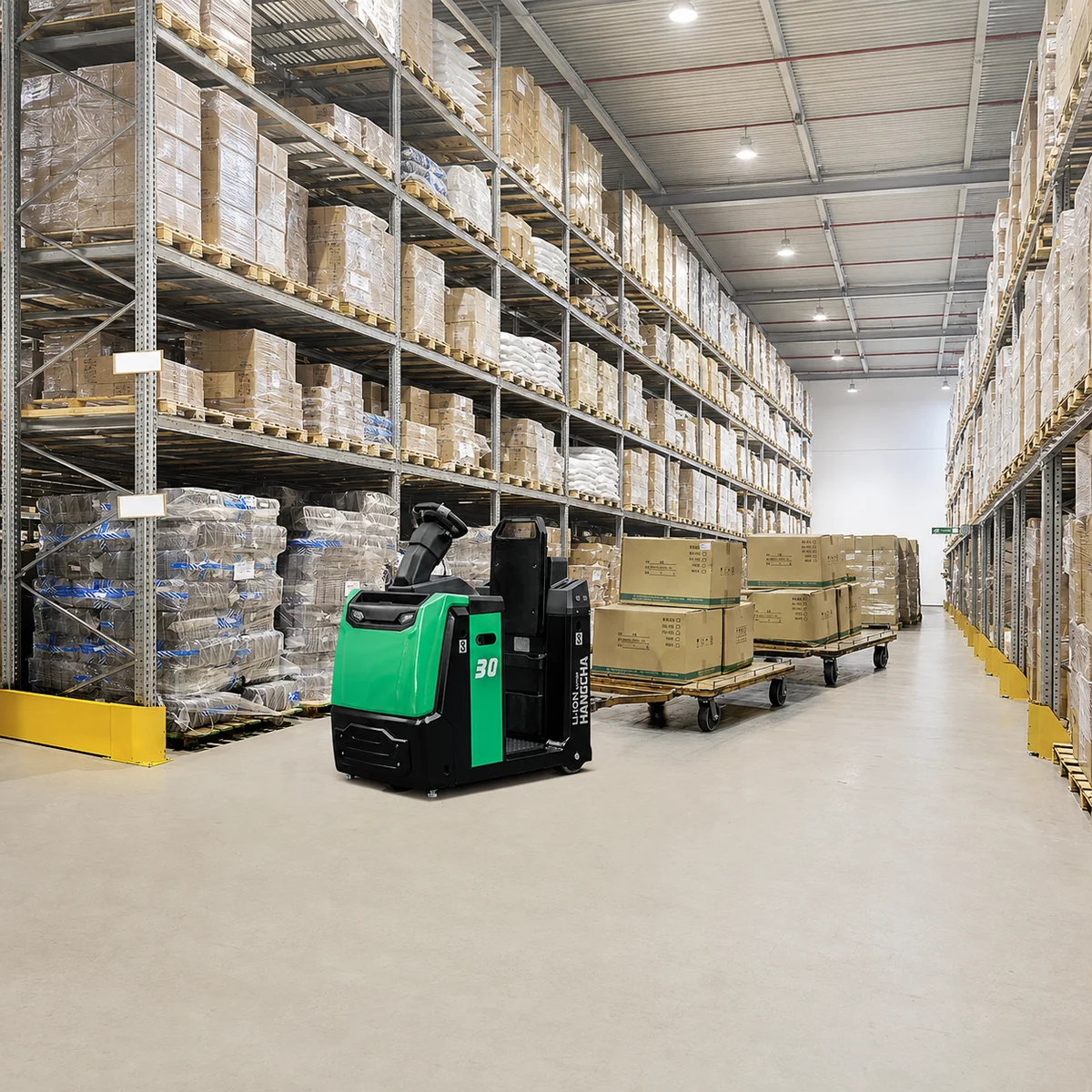

The X Series 3-5 t tow tractor is a compact stand-on electric tractor developed for warehouse logistics, such as moving trailers in car plants and logistics centres. Both models run on a 48V lithium iron phosphate battery with a permanent magnet drive, and are only 800 mm wide with a 1,185 mm turning radius.
- QDD30 (3,000 kg): 600 N rated drawbar pull and 2,500 N maximum, a 2.2 kW drive motor and 9 km/h laden travel. A 600 mm wide version is available for this model only.
- QDD50 (5,000 kg): 1,000 N rated drawbar pull and 3,200 N maximum, a 3.2 kW drive motor and 8 km/h laden or 12.5 km/h unladen.

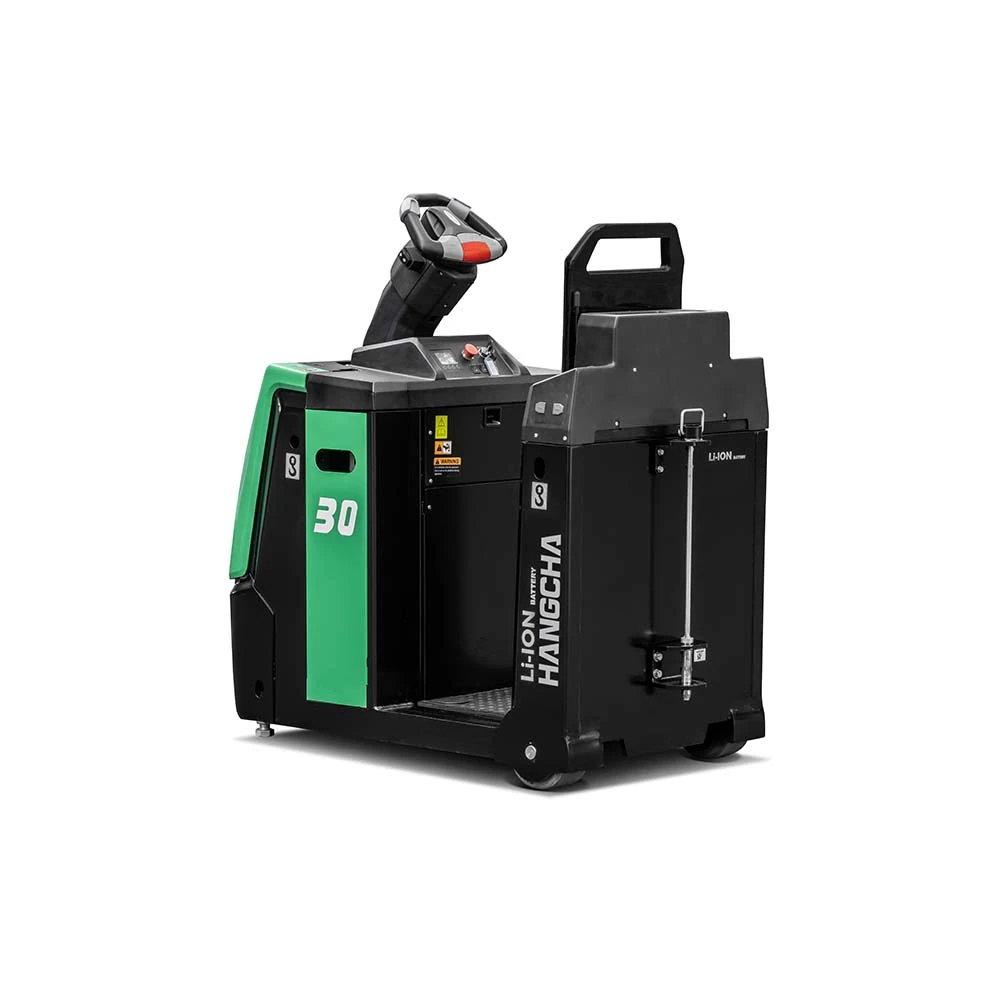

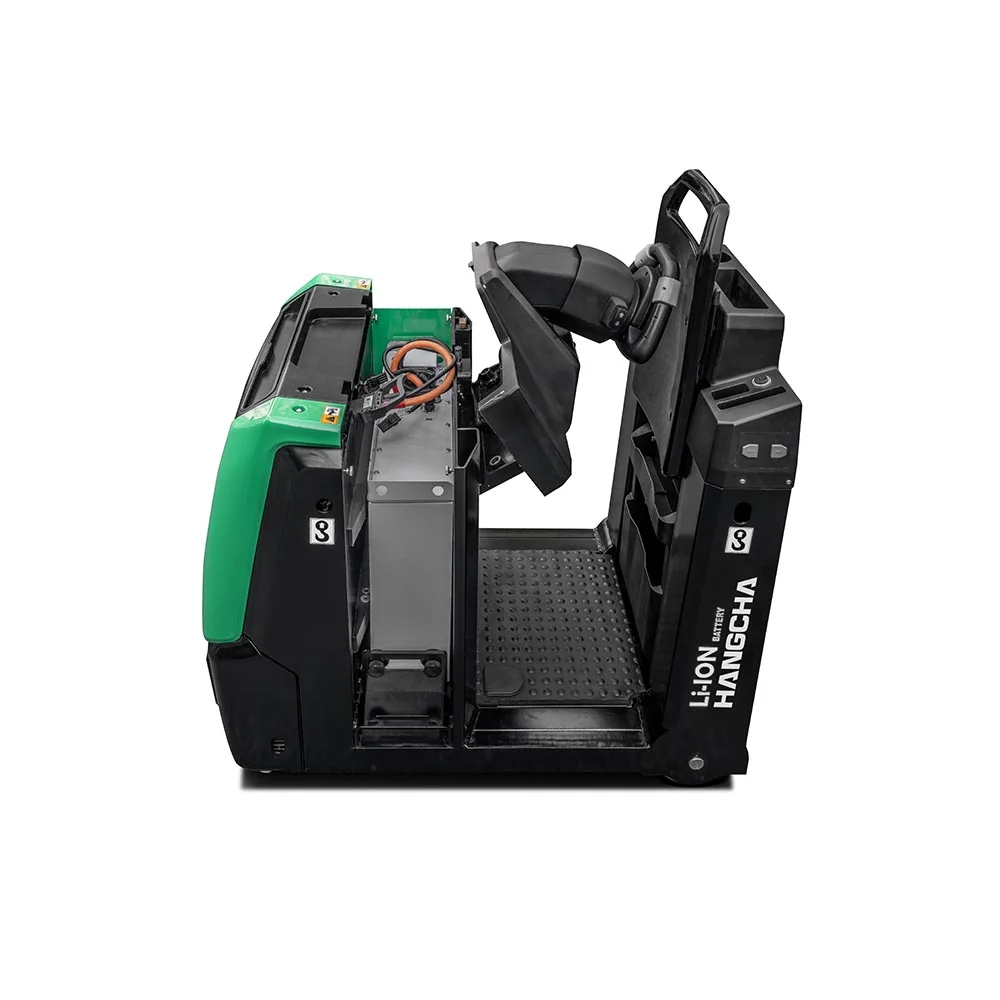

The operator stands on a floating, shock-absorbing platform with an adjustable backrest and a steering wheel that adjusts for height and angle, and the electric power steering returns to centre on its own. The standard 48V/105Ah battery (125Ah optional) lifts out from the side and carries a 6-year or 12,000-hour warranty. Coupling height is 300 mm as standard, with other heights available. For heavier trains, see the X Series tow tractor 6-18 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
12.5 km/h Travel Speed
Tows 3-5 t at speeds of up to 12.5 km/h for regular runs across the site.
Tight 1,185 mm Turn
A 1,185 mm turning radius helps the tractor manoeuvre around tight corners.
Full Specifications
| Capacity | 3-5 t |
|---|---|
| Power | Li-ion |
| Speed | Up to 12.5km/h |
| Max Travel Speed | Up to 12.5km/h |
| Turning Radius | 1,185mm |
| Gradeability | Up to 15% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- QDD30
- QDD50
| Model | Rated capacity | Rated / max drawbar pull | Drive motor | Laden / unladen travel | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| QDD30-XT1S-I | 3,000 kg | 600 / 2,500 N | 2.2 kW | 9 / 10.5 km/h | 4% | 730 kg |
| QDD50-XT1S-I | 5,000 kg | 1,000 / 3,200 N | 3.2 kW | 8 / 12.5 km/h | 4% | 880 kg |
Both models are 800 mm wide with a 1,185 mm turning radius and a 300 mm coupling height. Figures from the Hangcha X Series electric tow tractor brochure (3-5 t).
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Related Equipment
X Series Tow Tractor 6-10 t
A Series Tow Tractor 3-5 t
X Series Platform Truck 1-5 t
