X Series Platform Truck 1-5 t
A platform truck range for warehouse, indoor and outdoor operations, with a 1-5 t towing capacity, electric drive and Li-ion / Lead-acid, 48-77.28 V power options for day-to-day site towing duties.
1-5 t
Capacity
Li-ion / Lead-acid
Power
Up to 30km/h
Speed
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Electric Platform Truck: Layout and Payload

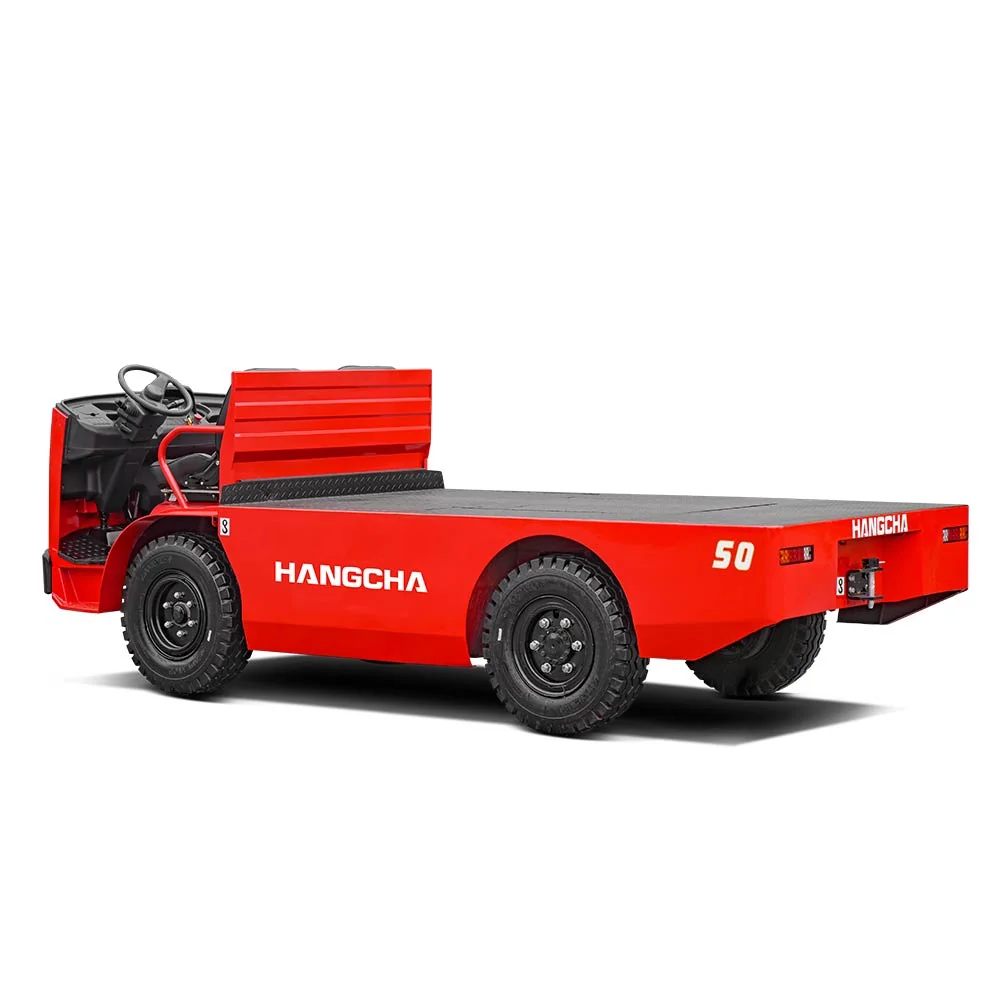

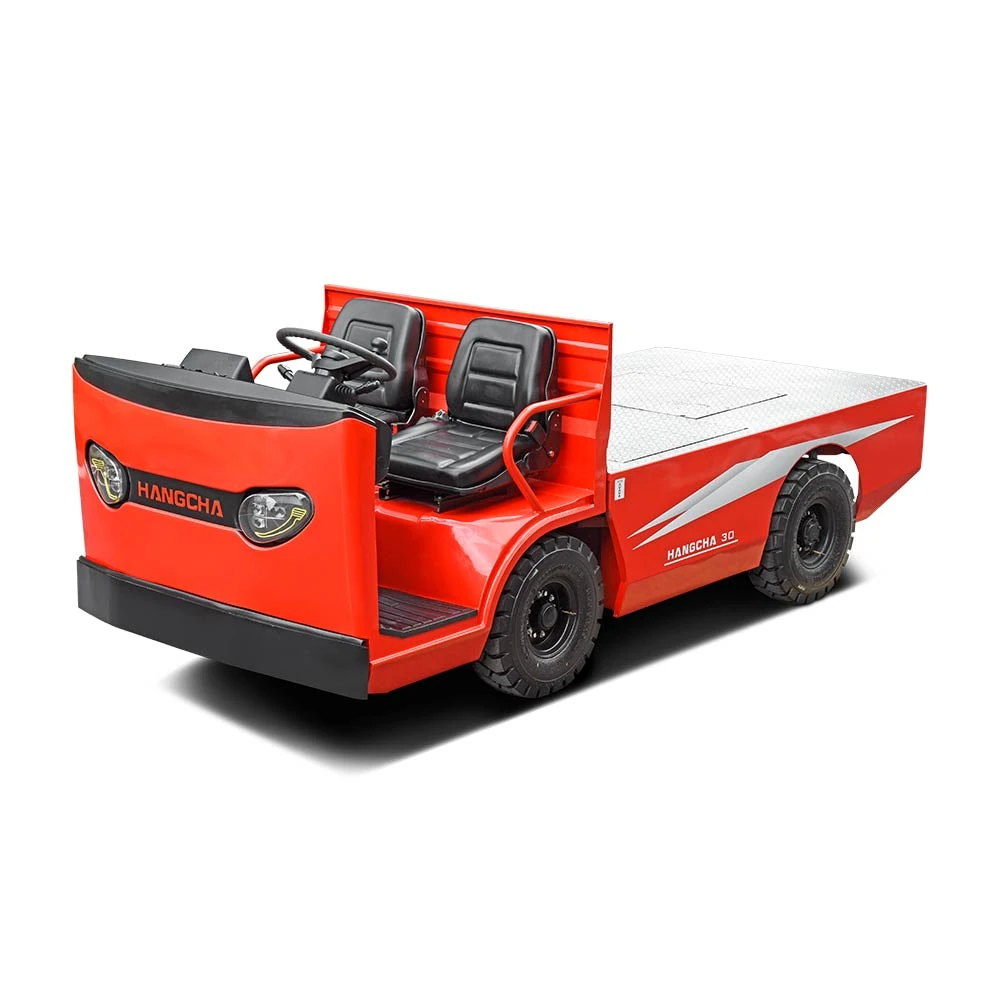

The Hangcha X Series electric platform truck carries loads on its own flat deck around factories and sites, with payloads from 1,000 to 5,000 kg. The range comes in several layouts, so start with how far and how fast you need to travel and how much room you have to turn.
- XC11 short wheelbase (BD10, BD20, BD30): the fastest layout, up to 25/30 km/h laden and unladen on the 1 t model, with a 4,000 mm turning radius and a 72V lead-acid or 77.28V lithium battery (-I models).
- XC11-L (BD20 to BD50): a 2-3 t compact version turning in 3,300 mm, and a 4-5 t version with a 3,200 x 1,500 mm deck, 4,458 mm overall length and 4,950 mm turning radius.
- XD2 / XC2 (BD15 to BD50): 1.5-5 t trucks with 2,850-3,900 mm turning radius and drawbar pull of 5,200-9,000 N, so they can also tow.
- XC1 (BD10, BD15): the most compact, 2,600-2,800 mm long and turning in 2,700 mm, on a 48V or 51.52V battery.
Speeds fall as payload rises, from 25/30 km/h on the 1 t XC11 to 12/16 km/h on the 5 t models. Check the deck size against your loads and the turning radius against your aisles before choosing a layout. For payloads of 8 to 16 t, see the X Series platform truck 8-16 t.
Practical Features for Daily Operation
Electric Power
Electric drive for carrying loads indoors and outdoors, with Li-ion or lead-acid batteries.
Full Suspension Ride
Elastic suspension on both axles reduces vibration for a smoother ride with loads aboard.
LCD Digital Dashboard
An LCD screen shows battery status, speed, operating hours and fault alerts at a glance.
Full Specifications
| Capacity | 1-5 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Speed | Up to 30km/h |
| Max Travel Speed | Up to 30km/h |
| Turning Radius | 2,700-4,950mm |
| Gradeability | Up to 20% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- BD10
- BD20
- BD30
- BD40
- BD50
- BD15
| Model | Payload | Overall length | Turning radius | Travel laden / unladen |
|---|---|---|---|---|
| BD10-XC11-5 | 1,000 kg | 3,705 mm | 4,000 mm | 25 / 30 km/h |
| BD20-XC11-5 | 2,000 kg | 3,705 mm | 4,000 mm | 14.5 / 20 km/h |
| BD30-XC11-5 | 3,000 kg | - | 4,000 mm | 13 / 20 km/h |
| BD20 / BD30-XC11-L | 2,000 / 3,000 kg | 3,258 mm | 3,300 mm | 13.5 / 18, 13 / 18 km/h |
| BD40 / BD50-XC11-L | 4,000 / 5,000 kg | 4,458 mm | 4,950 mm | 13 / 16, 12 / 16 km/h |
| BD10-XC1 / BD15-XXC1 | 1,000 / 1,500 kg | 2,600 / 2,800 mm | 2,700 mm | 13 / 17.5, 12 / 17.5 km/h |
XD2 / XC2 versions (1.5-5 t): 2,875-3,875 mm long, 2,850-3,900 mm turning radius. Figures from the Hangcha X Series electric platform truck brochure (Hangcha Europe, 2025).
