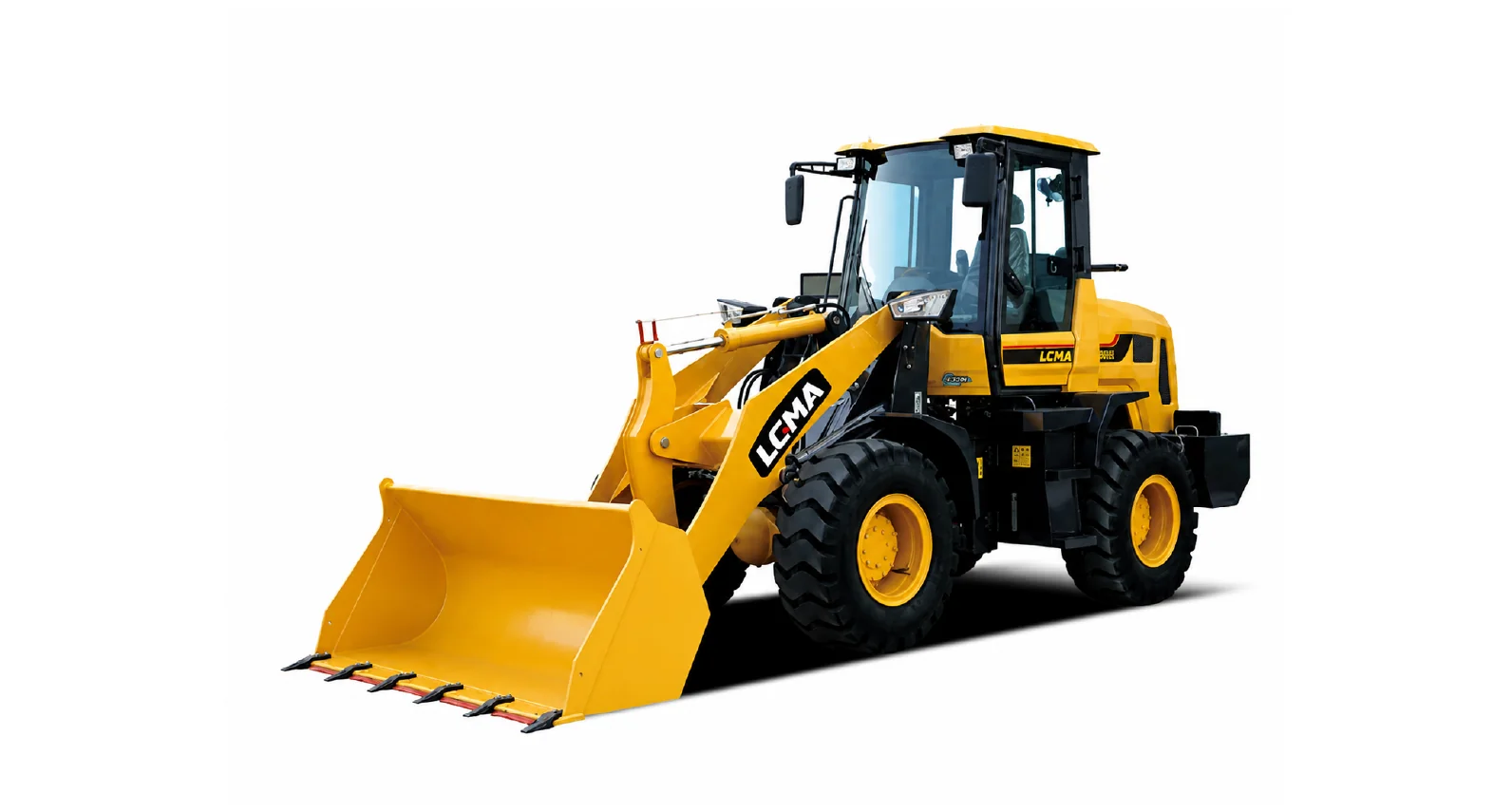

LM930
The LGMA LM930 is a diesel wheel loader for outdoor and uneven-ground applications, combining an operating weight of 3.8 t with a 1.6 t rated load, 65 kW / 87 HP rated power and 0.80 m³ bucket capacity.
1.6 t
Rated Load
65 kW / 87 HP
Power
0.80 m³
Bucket
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the LM930 and Other LM Wheel Loaders
The LM930 pairs a 1,600 kg rated load and 0.8 m³ bucket with a 65 kW Weichai Huafeng 4102 engine, a torque converter and an automatic transmission with 4 forward and 4 reverse speeds. It weighs 3,800 kg and is 1,850 mm wide.
- Against the LM920: the same rated load, bucket and 3.2 m dump height, with 65 kW instead of 42 kW and a slightly tighter 4,900 mm turning radius.
- Against the LM938: the LM938 lifts 2,000 kg with a 1.0 m³ bucket and dumps at 3.6 m, but weighs 5,200 kg and is 2,020 mm wide.
- Cab: climate-controlled heating and cooling, an HD rear camera, a suspension seat and a display with maintenance reminders.
A general purpose bucket is standard, and optional attachments include a 4-in-1 bucket, pallet forks, hay fork, stick rake, slasher, grapples, auger, sweeper and dozer blade. The axles use hub reduction, and the dual independent brake lines have an air booster. For the next size up, see the LM938 wheel loader.
Practical Features for Daily Operation
Diesel Engine Power
65 kW / 87 HP rated power for loading, carrying and stockpile work.
Air-Conditioned Cab
A/C, a suspension seat and a quieter cab reduce operator fatigue over long shifts.
Rear Camera
A rear camera improves the view when reversing around people and stockpiles.
Full Specifications
| Rated Load | 1.6 t |
|---|---|
| Power | 65 kW / 87 HP |
| Bucket | 0.80 m³ |
| Bucket Capacity | 0.80 m³ |
| Max Dumping Height | 3,200 mm |
| Turning Radius | 4,900 mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- LM930
| Model | Rated load | Operating weight | Bucket | Engine power | Dump height | Turning radius |
|---|---|---|---|---|---|---|
| LM920 | 1,600 kg | 3,800 kg | 0.8 m³ | 42 kW | 3,200 mm | 5,000 mm |
| LM930 | 1,600 kg | 3,800 kg | 0.8 m³ | 65 kW | 3,200 mm | 4,900 mm |
| LM938 | 2,000 kg | 5,200 kg | 1.0 m³ | 76 kW | 3,600 mm | 4,500 mm |
| LM940 | 2,500 kg | 6,500 kg | 1.3 m³ | 85 kW | 3,800 mm | 6,000 mm |
| LM946 | 2,800 kg | 8,200 kg | 1.5 m³ | 92 kW | 3,800 mm | 6,000 mm |
The full LM wheel loader range, for comparison. Figures from the DJJ Equipment LM-Series wheel loader brochures.
