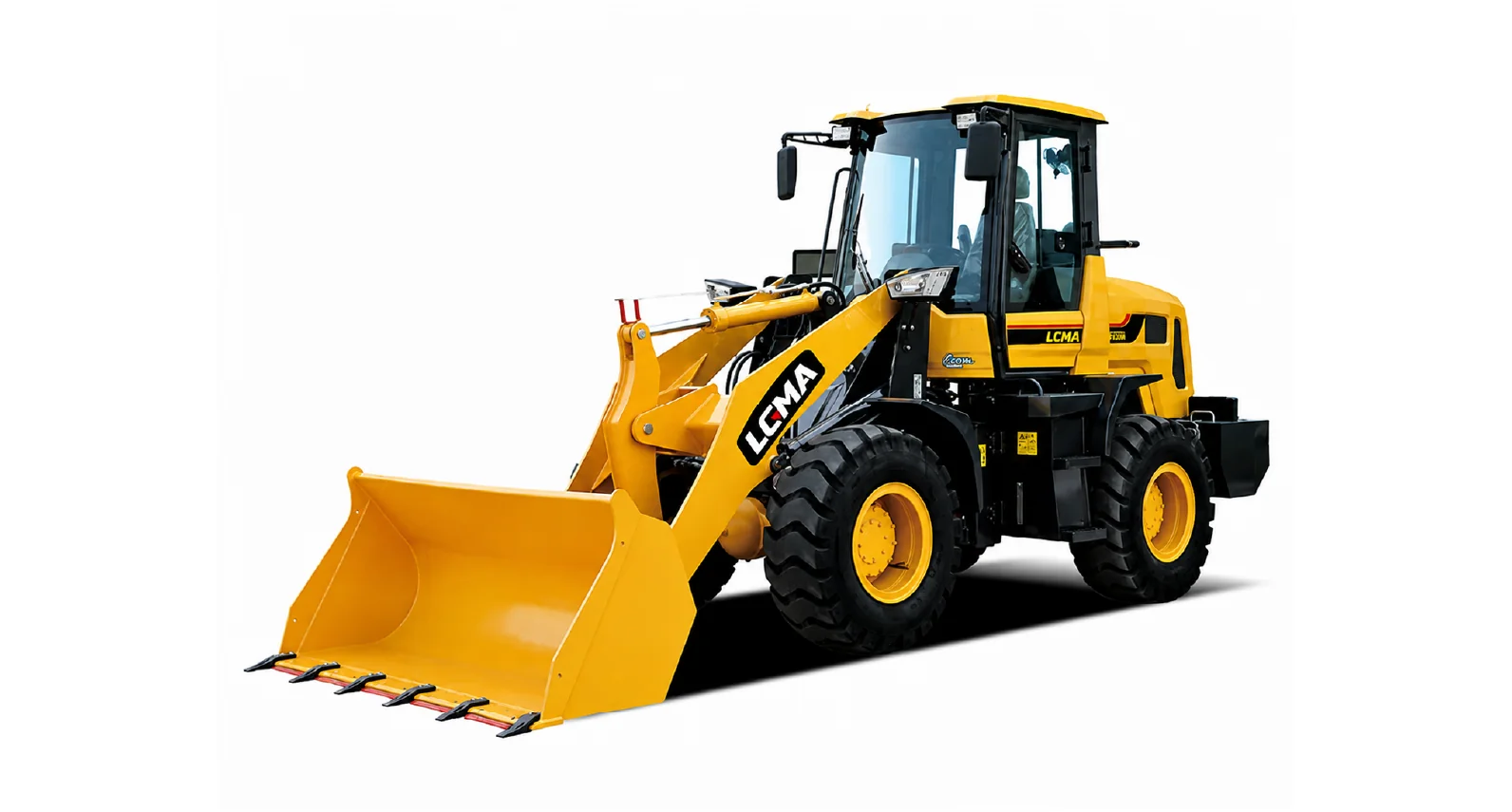

LM946
The LGMA LM946 is a diesel wheel loader for outdoor and uneven-ground applications, combining an operating weight of 8.2 t with a 2.8 t rated load, 92 kW / 123 HP rated power and 1.5 m³ bucket capacity.
2.8 t
Rated Load
92 kW / 123 HP
Power
1.5 m³
Bucket
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the LM946 Over the LM940
The LM946 is the largest LM wheel loader: 2,800 kg rated load, a 1.5 m³ bucket, an 8,200 kg operating weight and the range's only 6-cylinder engine, a 92 kW Weichai Deutz WP6G125. It runs on 17.5-25 tyres.
- Against the LM940: 300 kg more rated load, a 0.2 m³ larger bucket and 1,700 kg more weight, with the same 3.8 m dump height, 6,000 mm turning radius and 2,710 mm wheelbase.
- Cycle: 6.5 s to lift and 5.5 s to lower, matching the LM940.
- Bucket width: 2,400 mm, the widest in the range.
The triple-layer articulating hinge, hub-reduction axles, torque converter with 4 forward and 4 reverse speeds and climate-controlled cab with an HD rear camera are standard. Optional attachments include a 4-in-1 bucket, pallet forks, hay fork, grapples, auger, sweeper and dozer blade. For a lighter machine, see the LM940 wheel loader.
Practical Features for Daily Operation
Diesel Engine Power
92 kW / 123 HP rated power for high-volume loading and carrying.
Triple-Layer Hinge
A triple-layer articulation hinge adds strength and stability under heavy loads.
Air-Conditioned Cab
A/C, a suspension seat and rollover protection for long shifts on site.
Full Specifications
| Rated Load | 2.8 t |
|---|---|
| Power | 92 kW / 123 HP |
| Bucket | 1.5 m³ |
| Bucket Capacity | 1.5 m³ |
| Max Dumping Height | 3,800 mm |
| Turning Radius | 6,000 mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- LM946
| Model | Rated load | Operating weight | Bucket | Engine power | Dump height | Turning radius |
|---|---|---|---|---|---|---|
| LM920 | 1,600 kg | 3,800 kg | 0.8 m³ | 42 kW | 3,200 mm | 5,000 mm |
| LM930 | 1,600 kg | 3,800 kg | 0.8 m³ | 65 kW | 3,200 mm | 4,900 mm |
| LM938 | 2,000 kg | 5,200 kg | 1.0 m³ | 76 kW | 3,600 mm | 4,500 mm |
| LM940 | 2,500 kg | 6,500 kg | 1.3 m³ | 85 kW | 3,800 mm | 6,000 mm |
| LM946 | 2,800 kg | 8,200 kg | 1.5 m³ | 92 kW | 3,800 mm | 6,000 mm |
The full LM wheel loader range, for comparison. Figures from the DJJ Equipment LM-Series wheel loader brochures.
