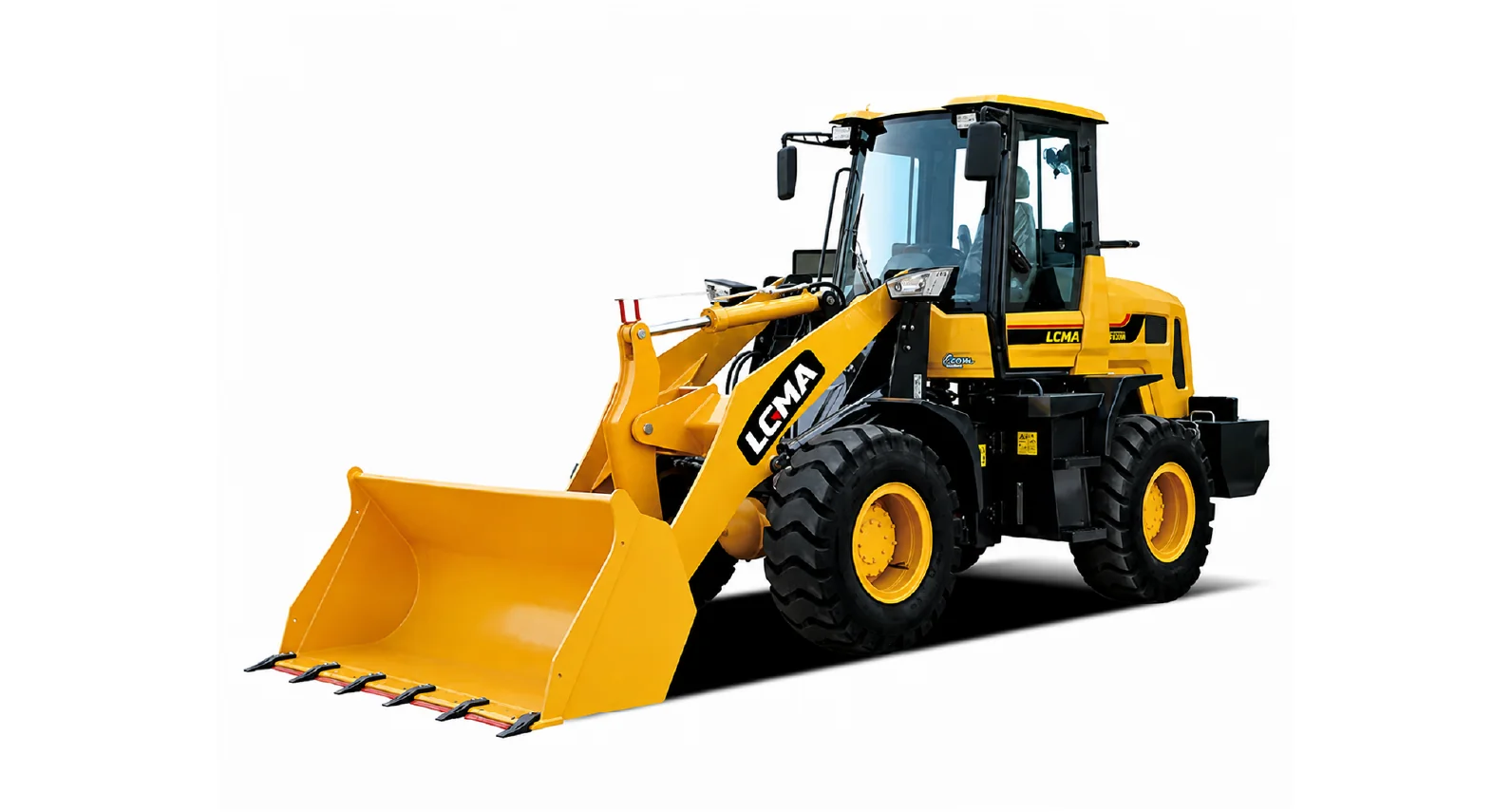

LM938
For outdoor and uneven-ground applications, the LGMA LM938 combines an operating weight of 5.2 t with a 2.0 t rated load and 1.0 m³ bucket capacity in a diesel wheel loader configuration.
2.0 t
Rated Load
76 kW / 102 HP
Power
1.0 m³
Bucket
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the LM938 and Other LM Wheel Loaders
The LM938 sits in the middle of the LM range, with a 2,000 kg rated load, a 1.0 m³ bucket and a 76 kW Weichai Huafeng 4102T engine. At 4,500 mm it has the tightest turning radius in the range, with a 5,200 kg operating weight.
- Against the LM930: 400 kg more rated load, a larger bucket and a 3.6 m dump height instead of 3.2 m, on 16/70-20 tyres.
- Against the LM940: the LM940 lifts 2,500 kg with a 1.3 m³ bucket and dumps at 3.8 m, but needs a 6,000 mm turning radius.
- Build: a triple-layer articulating hinge for heavy loads, a dual-layer radiator and hub-reduction axles.
Like the rest of the range, it has a torque converter with 4 forward and 4 reverse speeds and a climate-controlled cab with an HD rear camera, plus optional attachments from pallet forks and grapples to a slasher and dozer blade. For a smaller loader, see the LM930 wheel loader.
Practical Features for Daily Operation
Diesel Engine Power
76 kW / 102 HP rated power for loading and carrying on outdoor sites.
Triple-Layer Hinge
A triple-layer articulation hinge adds strength and stability under heavy loads.
Air-Conditioned Cab
A/C, a suspension seat and rollover protection for long shifts on site.
Full Specifications
| Rated Load | 2.0 t |
|---|---|
| Power | 76 kW / 102 HP |
| Bucket | 1.0 m³ |
| Bucket Capacity | 1.0 m³ |
| Max Dumping Height | 3,600 mm |
| Turning Radius | 4,500 mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- LM938
| Model | Rated load | Operating weight | Bucket | Engine power | Dump height | Turning radius |
|---|---|---|---|---|---|---|
| LM920 | 1,600 kg | 3,800 kg | 0.8 m³ | 42 kW | 3,200 mm | 5,000 mm |
| LM930 | 1,600 kg | 3,800 kg | 0.8 m³ | 65 kW | 3,200 mm | 4,900 mm |
| LM938 | 2,000 kg | 5,200 kg | 1.0 m³ | 76 kW | 3,600 mm | 4,500 mm |
| LM940 | 2,500 kg | 6,500 kg | 1.3 m³ | 85 kW | 3,800 mm | 6,000 mm |
| LM946 | 2,800 kg | 8,200 kg | 1.5 m³ | 92 kW | 3,800 mm | 6,000 mm |
The full LM wheel loader range, for comparison. Figures from the DJJ Equipment LM-Series wheel loader brochures.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
