LM940

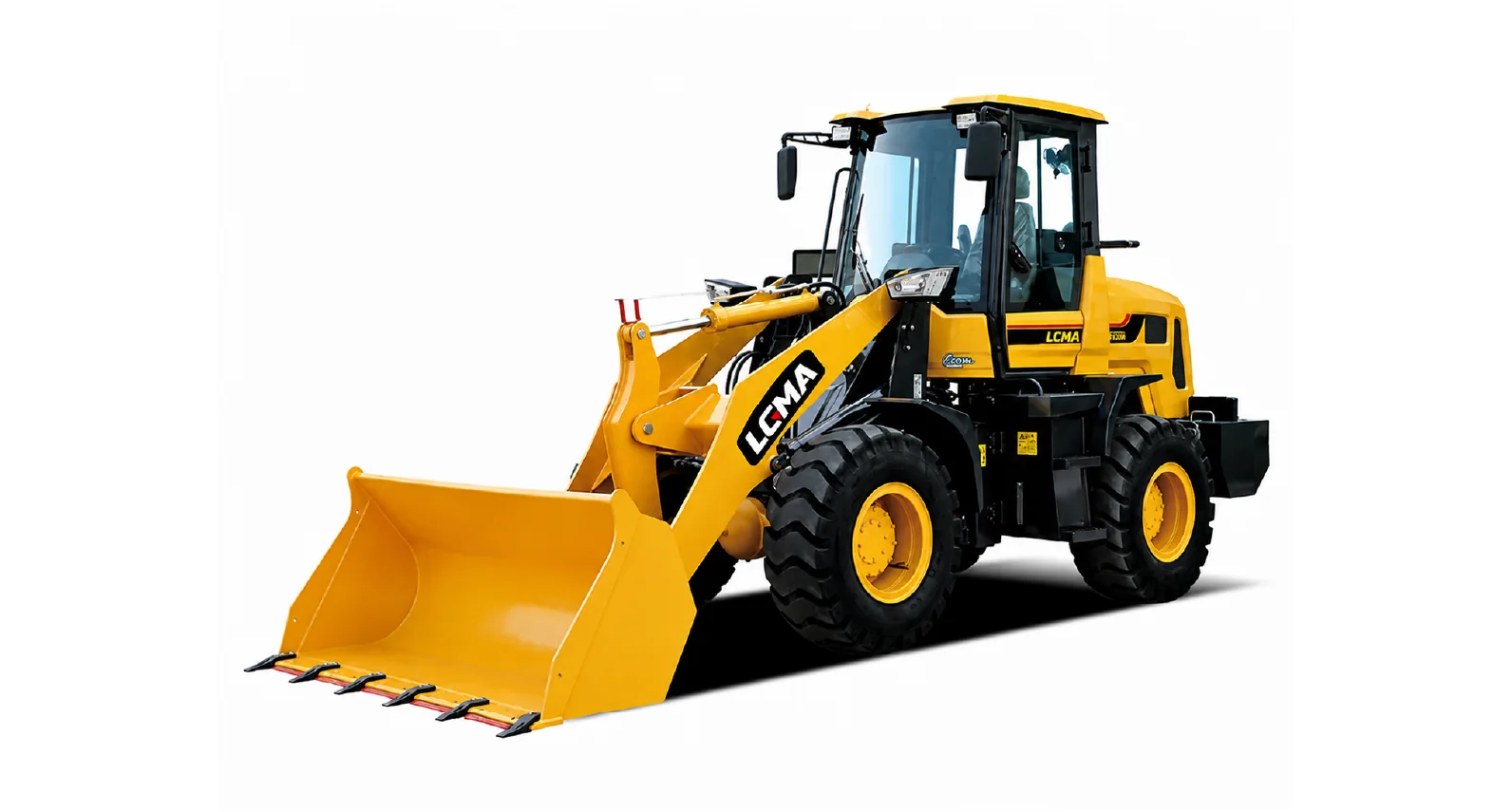

Designed for outdoor and uneven-ground applications, the LGMA LM940 is a diesel wheel loader with an operating weight of 6.5 t, a 2.5 t rated load and 1.3 m³ bucket capacity.
2.5 t
Rated Load
85 kW / 114 HP
Power
1.3 m³
Bucket
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the LM940 and LM946
The LM940 is a 2,500 kg wheel loader with a 1.3 m³ bucket, an 85 kW Yuchai 4105T engine and a 6,500 kg operating weight. It dumps at 3.8 m and runs on 16/70-24 tyres with 37° articulation.
- Against the LM938: 500 kg more rated load, a 0.3 m³ larger bucket and 200 mm more dump height, with a wider 6,000 mm turning radius.
- Against the LM946: the LM946 adds 300 kg of rated load, a 1.5 m³ bucket and a 6-cylinder 92 kW engine at 8,200 kg, with the same 3.8 m dump height and turning radius.
- Cycle: 6.5 s to lift and 5.5 s to lower the bucket.
A torque converter with 4 forward and 4 reverse speeds, hub-reduction axles, an air-boosted dual brake circuit and a climate-controlled cab with an HD rear camera are standard. Optional attachments include a 4-in-1 bucket, pallet forks, grapples, auger, sweeper and dozer blade. For the largest model, see the LM946 wheel loader.
Practical Features for Daily Operation
Diesel Engine Power
85 kW / 114 HP rated power for heavier loading and carrying work.
Triple-Layer Hinge
A triple-layer articulation hinge adds strength and stability under heavy loads.
Rear Camera
A rear camera improves the view when reversing around people and stockpiles.
Full Specifications
| Rated Load | 2.5 t |
|---|---|
| Power | 85 kW / 114 HP |
| Bucket | 1.3 m³ |
| Rated Power | 85 kW / 114 HP |
| Max Dumping Height | 3,800 mm |
| Turning Radius | 6,000 mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- LM940
| Model | Rated load | Operating weight | Bucket | Engine power | Dump height | Turning radius |
|---|---|---|---|---|---|---|
| LM920 | 1,600 kg | 3,800 kg | 0.8 m³ | 42 kW | 3,200 mm | 5,000 mm |
| LM930 | 1,600 kg | 3,800 kg | 0.8 m³ | 65 kW | 3,200 mm | 4,900 mm |
| LM938 | 2,000 kg | 5,200 kg | 1.0 m³ | 76 kW | 3,600 mm | 4,500 mm |
| LM940 | 2,500 kg | 6,500 kg | 1.3 m³ | 85 kW | 3,800 mm | 6,000 mm |
| LM946 | 2,800 kg | 8,200 kg | 1.5 m³ | 92 kW | 3,800 mm | 6,000 mm |
The full LM wheel loader range, for comparison. Figures from the DJJ Equipment LM-Series wheel loader brochures.
