LM920

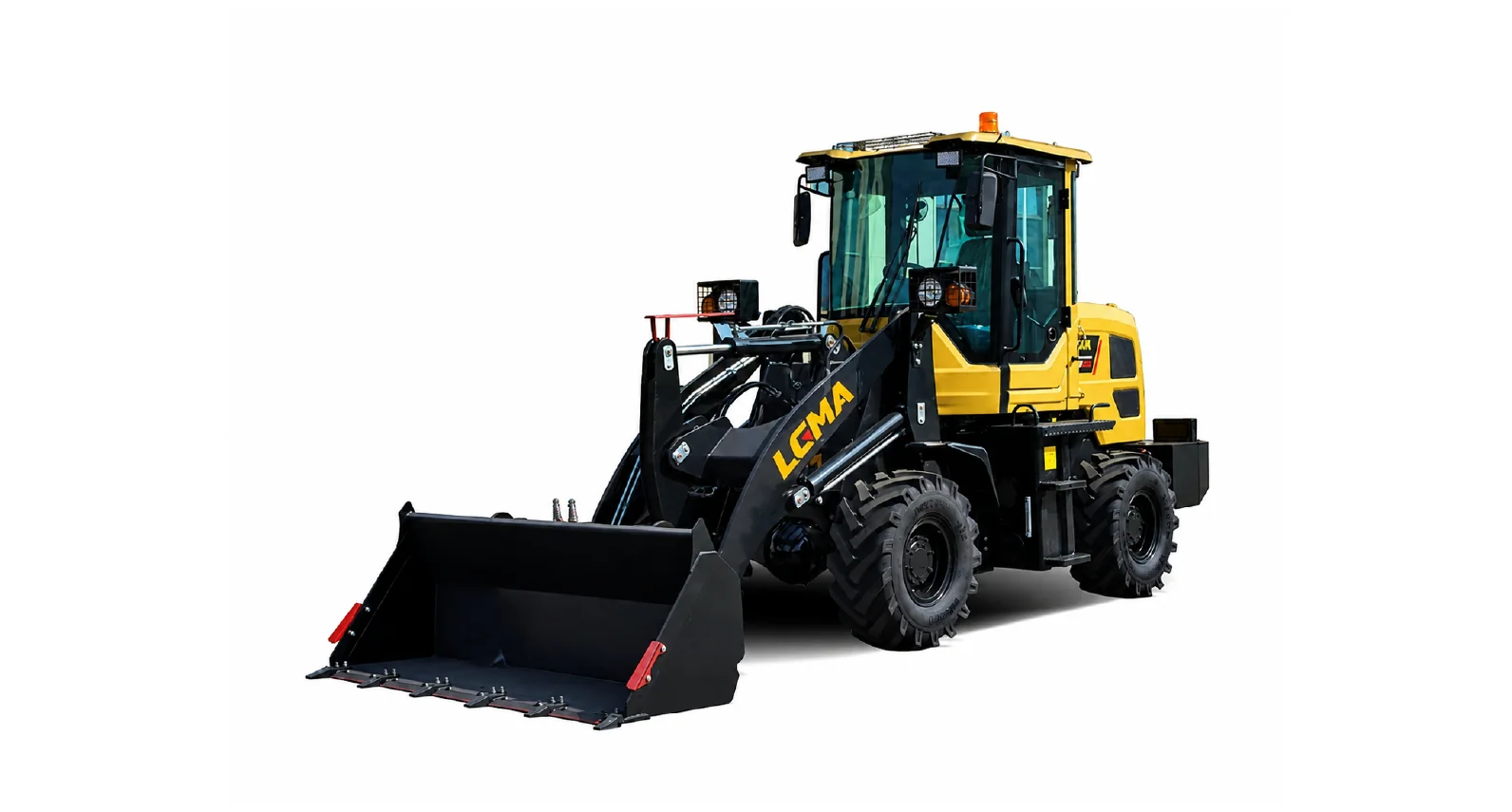

Designed for outdoor and uneven-ground applications, the LGMA LM920 is a diesel wheel loader with an operating weight of 3.8 t, a 1.6 t rated load and 0.8 m³ bucket capacity.
1.6 t
Rated Load
42 kW / 56 HP
Power
0.8 m³
Bucket
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the LM920 and LM930
The LM920 is the entry model in the LM wheel loader range: 1,600 kg rated load, 3,800 kg operating weight and a 0.8 m³ general purpose bucket, powered by a 42 kW Yunnei 490 engine. Its closest alternative is the LM930, which has the same rated load and bucket but a 65 kW Weichai engine.
- Dump height: 3.2 m with the standard bucket, with grain buckets of 1.6-1.7 m³ that unload at up to 4.5 m for light bulk material.
- Size: 1,830 mm wide with a 2,220 mm wheelbase, 300 mm ground clearance and a 5,000 mm turning radius on 20.5/70-16 tyres.
- Attachments: a quick hitch is optional, and the brochure shows 16 attachments, including a 4-in-1 bucket, pallet forks, hay fork, slasher, grapples, auger and dozer blade.
The transmission has high and low ranges with a mechanical gear change as standard and an electronic change as an option. Cooling-only or heating-and-cooling air conditioning and a reversing camera are optional. For more engine power with the same 1.6 t rating, compare the LM930 wheel loader.
Practical Features for Daily Operation
Diesel Engine Power
42 kW / 56 HP rated power for loading and carrying on outdoor sites.
Four-Wheel Drive
Four-wheel drive balances travel speed with low-speed control around the site.
Independent Brake Lines
Front and rear axles brake on separate lines for more dependable stopping.
Full Specifications
| Rated Load | 1.6 t |
|---|---|
| Power | 42 kW / 56 HP |
| Bucket | 0.8 m³ |
| Rated Power | 42 kW / 56 HP |
| Max Dumping Height | 3,200 mm |
| Turning Radius | 5,000 mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- LM920
| Model | Rated load | Operating weight | Bucket | Engine power | Dump height | Turning radius |
|---|---|---|---|---|---|---|
| LM920 | 1,600 kg | 3,800 kg | 0.8 m³ | 42 kW | 3,200 mm | 5,000 mm |
| LM930 | 1,600 kg | 3,800 kg | 0.8 m³ | 65 kW | 3,200 mm | 4,900 mm |
| LM938 | 2,000 kg | 5,200 kg | 1.0 m³ | 76 kW | 3,600 mm | 4,500 mm |
| LM940 | 2,500 kg | 6,500 kg | 1.3 m³ | 85 kW | 3,800 mm | 6,000 mm |
| LM946 | 2,800 kg | 8,200 kg | 1.5 m³ | 92 kW | 3,800 mm | 6,000 mm |
The full LM wheel loader range, for comparison. Figures from the DJJ Equipment LM-Series wheel loader brochures.
