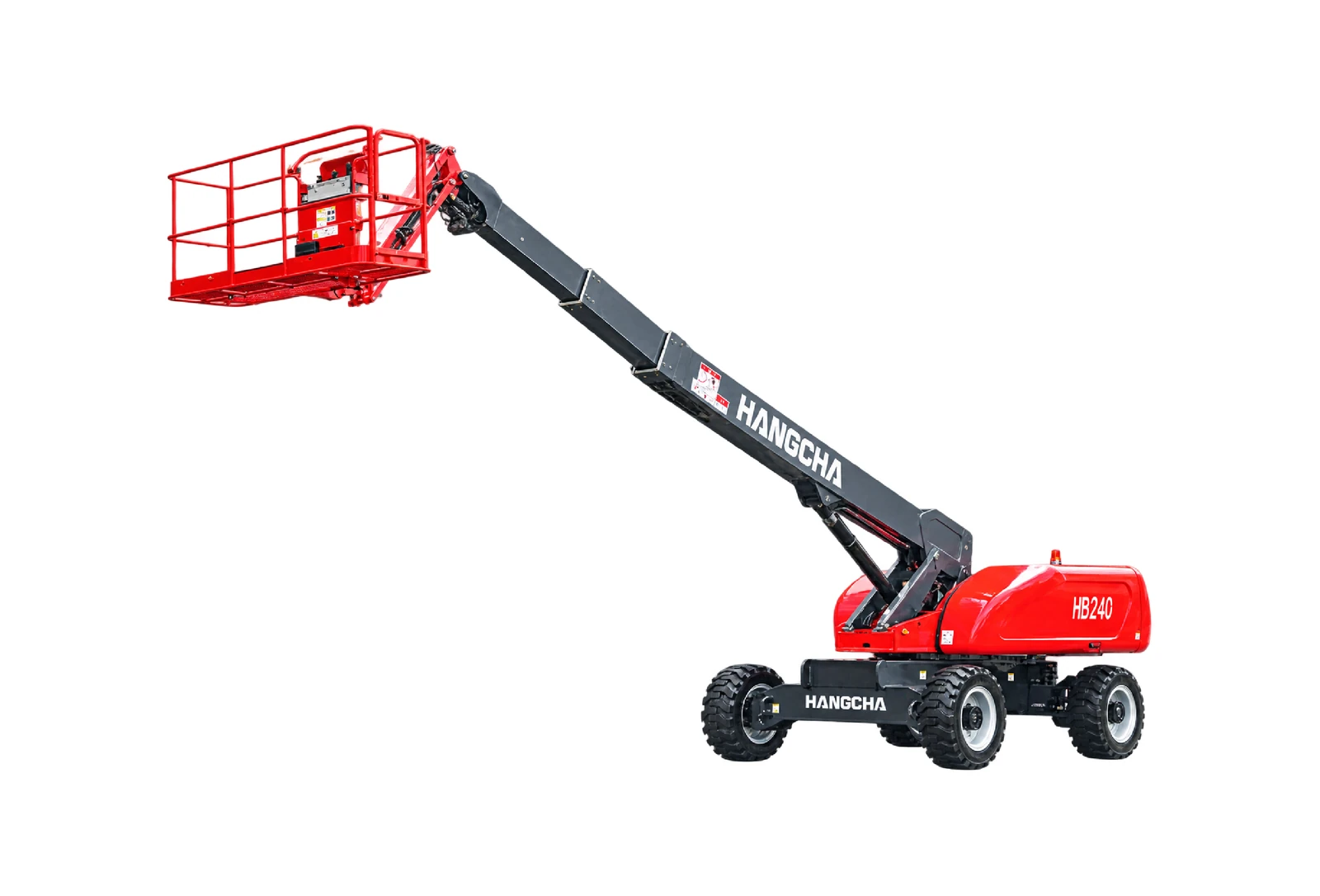

Hangcha HB Series Telescopic Boom Lift Diesel
A telescopic boom lift range for outdoor work on uneven ground, with working heights of up to 63 m for access work where height, platform load and ground conditions guide equipment selection.
230-480kg
Capacity
Diesel
Power
Up to 63 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an HB Series Diesel Telescopic Boom Lift

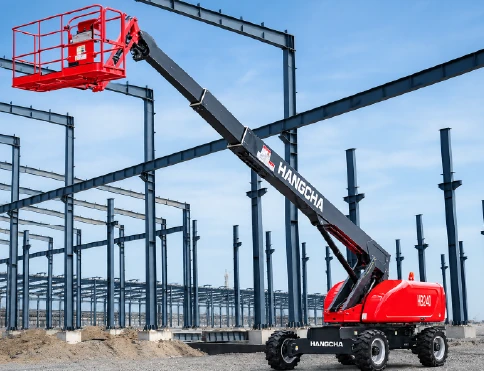

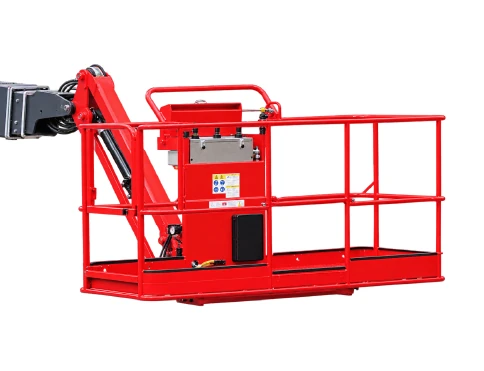

The HB Series diesel telescopic boom lift covers 16 m to 63 m working height across 12 models, for outdoor work in damp, corrosive, dusty, hot or cold conditions. One operator can drive, lift and slew from the platform, and every model has solid tyres, automatic platform levelling and ±90° platform rotation.
- HB160H to HB300H (16-30 m): Yanmar 36 kW engines, a 12.6-20.6 m working radius and a 7,500-16,800 kg machine weight.
- HB340H to HB480H (34-48 m): Yanmar engines of 36-53.7 kW and a 20-24 m working radius, with 4-wheel steering on the 40 m and taller models.
- HB580H and HB630H (58-63 m): Cummins 81 kW engines with a 24V system and a 26 m working radius, at 27,500-29,500 kg.
Most models carry 480 kg restricted or 300 kg unrestricted; the HB160H and HB220H list 300 kg, and the HB440H 230 kg unrestricted. Drive speed is 4.4-5 km/h stowed and up to 1.1 km/h raised, with 40-45% gradeability. For an electric model up to 28 m, see the HB Series electric telescopic boom lift.
Practical Features for Daily Operation
Diesel Drive
Diesel drive for outdoor sites, with gradeability of up to 45%.
63 m Working Height
The telescopic boom reaches platform heights up to 61 m with outreach of up to 26 m.
Platform Load 230-480 kg
Platform capacity of 230-480 kg, depending on model, for crew, tools and materials.
Full Specifications
| Capacity | 230-480kg |
|---|---|
| Power | Diesel |
| Working Height | Up to 63 m |
| Platform Capacity | 230-480kg |
| Drive Type | Diesel |
| Gradeability | Up to 45% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HB160H
- HB200H
- HB220H
- HB240H
- HB290H
- HB300H
- HB340H
- HB400H
- HB440H
- HB480H
- HB580H
- HB630H
| Model | Working height | Platform height | Working radius | Engine | Machine weight |
|---|---|---|---|---|---|
| HB160H | 16 m | 14 m | 12.6 m | Yanmar 36 kW | 7,500 kg |
| HB200H | 20 m | 18 m | 15 m | Yanmar 36 kW | 9,500 kg |
| HB220H | 22 m | 20 m | 17 m | Yanmar 36 kW | 12,200 kg |
| HB240H | 24.1 m | 22.1 m | 17 m | Yanmar 36 kW | 13,000 kg |
| HB290H | 28.9 m | 26.9 m | 18.5 m | Yanmar 36 kW | 14,000 kg |
| HB300H | 30 m | 28 m | 20.6 m | Yanmar 36 kW | 16,800 kg |
| HB340H | 34 m | 32 m | 20 m | Yanmar 36 kW | 19,500 kg |
| HB400H | 40.4 m | 38.4 m | 24 m | Yanmar 53.7 kW | 21,800 kg |
| HB440H | 44 m | 42 m | 24 m | Yanmar 53.7 kW | 24,600 kg |
| HB480H | 48 m | 46 m | 24 m | Yanmar 53.7 kW | 23,110 kg |
| HB580H | 58 m | 56 m | 26 m | Cummins 81 kW | 27,500 kg |
| HB630H | 63 m | 61 m | 26 m | Cummins 81 kW | 29,500 kg |
Figures from the Hangcha HB Series diesel telescopic boom lift brochure (2025).
