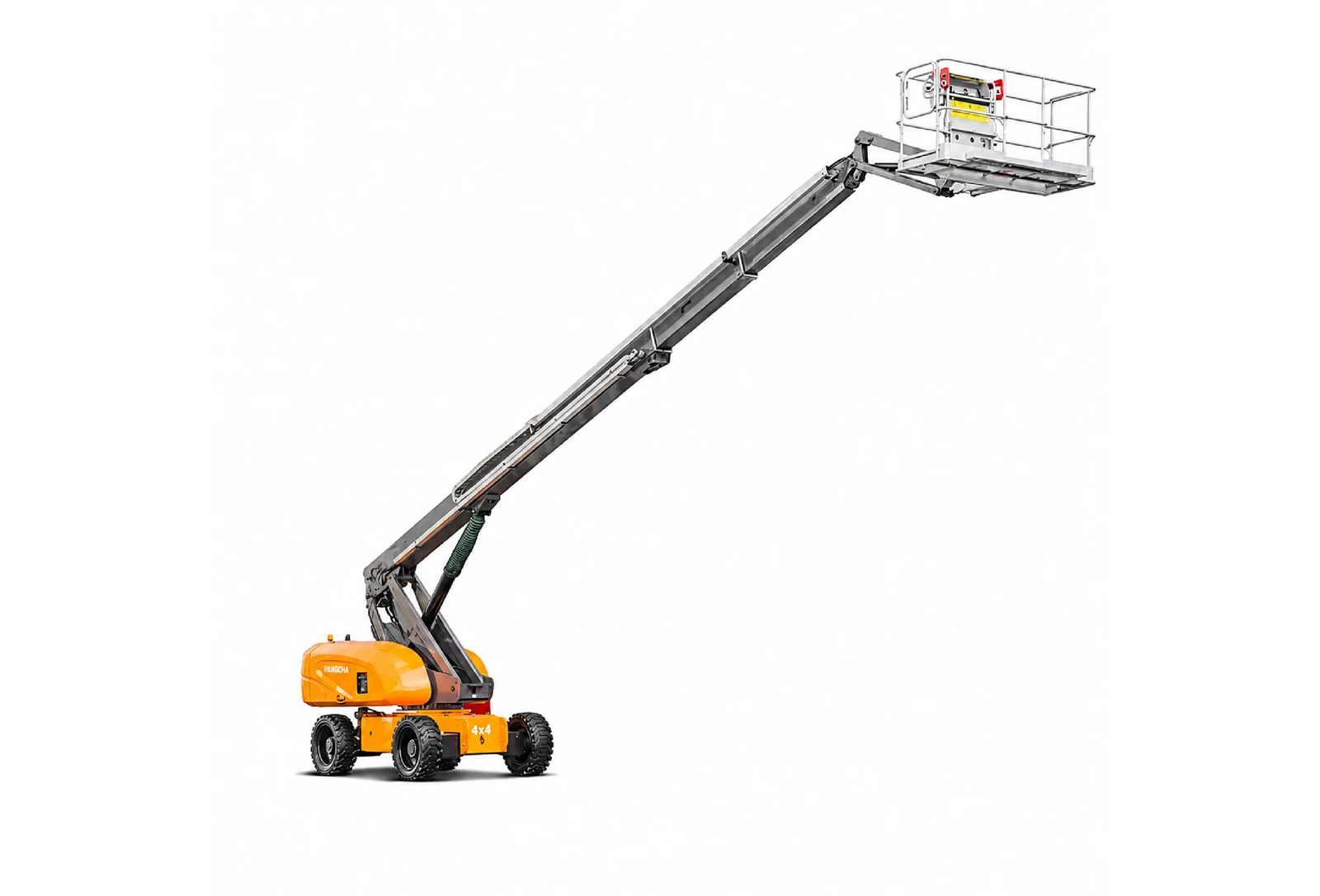

Hangcha HB Series Telescopic Boom Lift
A telescopic boom lift range for outdoor operations, with working heights of up to 28 m for access work where height, platform load and ground conditions guide equipment selection.
310-460kg
Capacity
Electric
Power
Up to 28 m
Working Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an HB Series Electric Telescopic Boom Lift

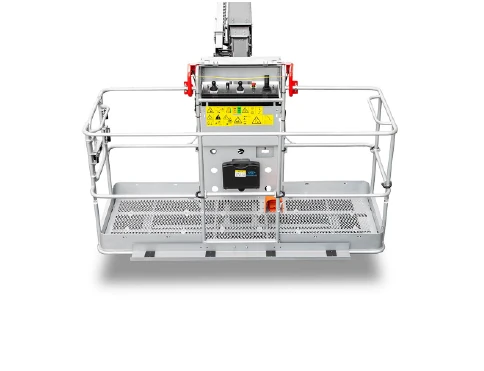

The HB Series electric telescopic boom lift reaches 23.4-28 m working height on battery power, with a permanent magnet motor driving a variable piston pump that cuts energy use by more than 10%. All three models carry 460 kg restricted or 310 kg unrestricted in a 2.44 m basket that holds three people.
- HB230P: 23.4 m working height and 15.5 m horizontal reach, without a jib, at 12,700 kg.
- HB250P: 25 m working height and 17 m reach, adding a jib that moves through 135°.
- HB280P: the tallest at 28 m, with 22.75 m reach, 2.3 m below-ground reach and 45% gradeability, on a larger 80V/540Ah battery.
All models are 2.49 m wide with 4-wheel drive, a front oscillating axle for uneven ground and a 6 km/h stowed drive speed. A lead-acid battery is standard, and lithium is optional with a five-year warranty and external fast charging; a 12V emergency system lowers the operator if the main battery is flat. Load sensing stops the boom if the basket is overloaded. For diesel models up to 63 m, see the HB Series diesel telescopic boom lift.
Practical Features for Daily Operation
Electric Drive

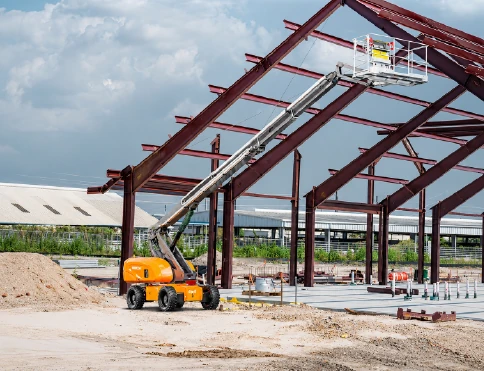

Electric drive for outdoor access work without engine exhaust on site.
Up to 28 m Working Height
Working height of up to 28 m with up to 22.75 m horizontal outreach.
310-460 kg Platform
Platform capacity of 310-460 kg depending on the model.
Full Specifications
| Capacity | 310-460kg |
|---|---|
| Power | Electric |
| Working Height | Up to 28 m |
| Platform Capacity | 310-460kg |
| Drive Type | Electric |
| Gradeability | Up to 45% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HB280P
- HB250P
- HB230P
| Model | Working height | Platform height | Horizontal reach | Jib | Gradeability | Machine weight |
|---|---|---|---|---|---|---|
| HB230P | 23.4 m | 21.4 m | 15.5 m | None | 35% | 12,700 kg |
| HB250P | 25 m | 23 m | 17 m | 135° | 35% | 13,200 kg |
| HB280P | 28 m | 26 m | 22.75 m | 135° | 45% | 19,000 kg |
460 kg restricted / 310 kg unrestricted on all models. Figures from the Hangcha HB Series telescopic boom lift brochure (2024).
