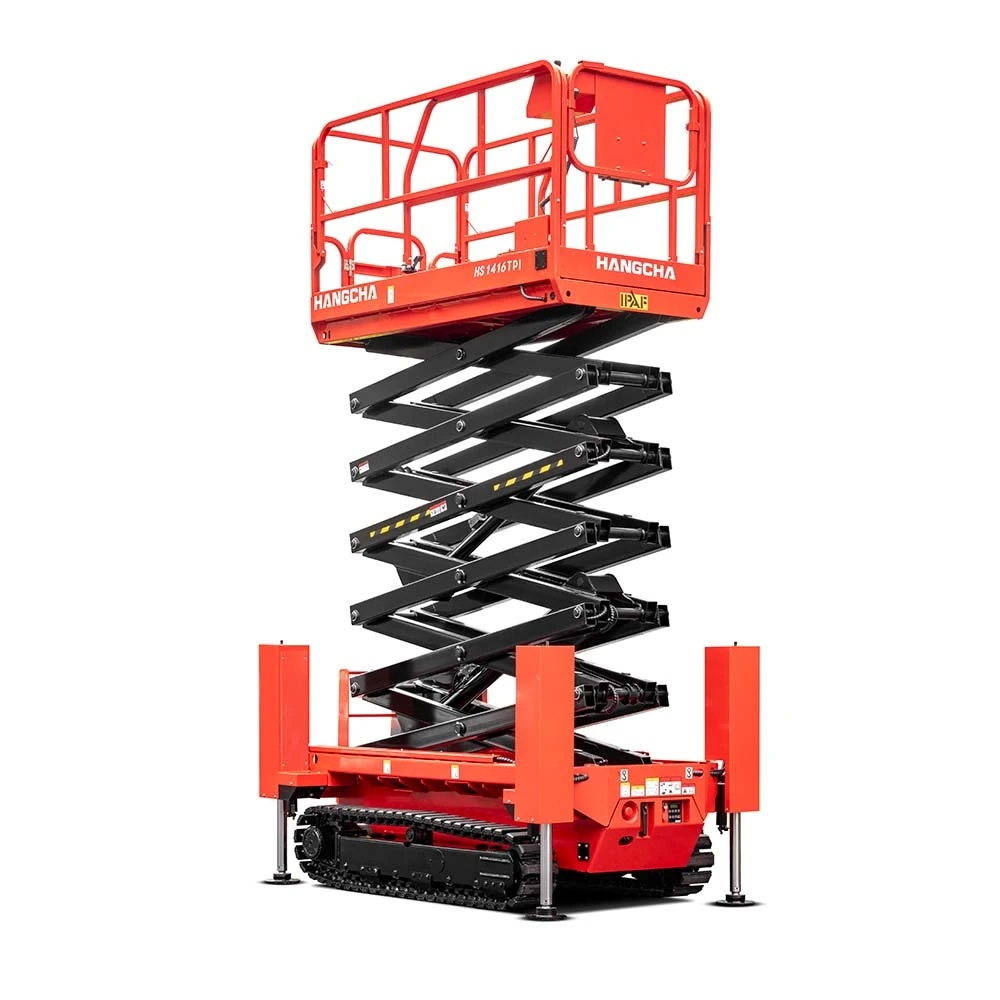

Hangcha HS Series Crawler Scissor Lift

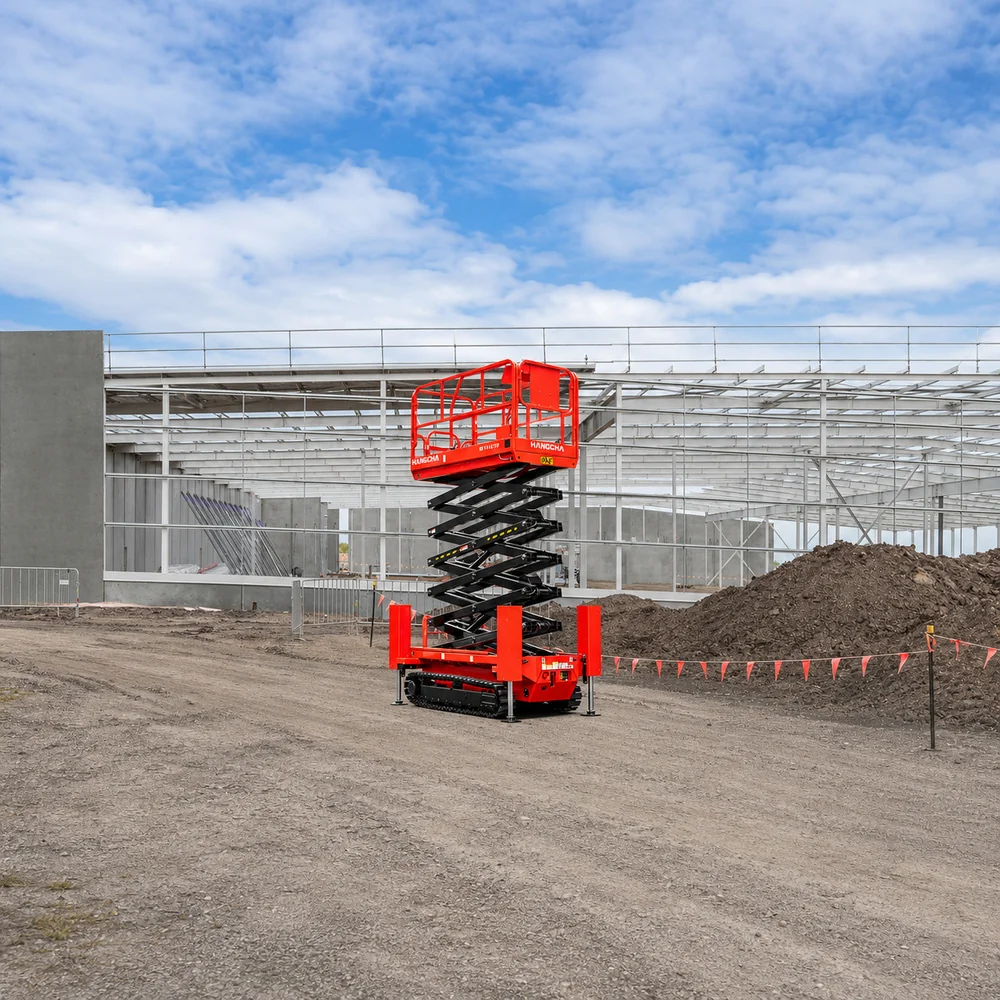

A crawler scissor lift range for outdoor work on uneven ground, with working heights of up to 13.8 m and platform capacities of 230-450 kg for access work where height, platform load and ground conditions guide equipment selection.
230-450 kg
Capacity
Electric crawler drive
Power
Up to 13.8 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an HS Series Crawler Scissor Lift
The HS Series crawler scissor lift runs on rubber tracks for indoor and outdoor work on uneven ground, with pivot steering and a sealed permanent magnet drive motor. Choose between the compact TA/TP models and the larger 14TP and 16TP models.
- HS0408TA, HS0608TA and HS0608TP: 5.9-6.5 m working height and 230 kg capacity on a 0.78-0.83 m wide chassis, with a 24V lead-acid or lithium battery.
- HS0814TP to HS1414TP: 8-13.8 m working height on a 1.4 m wide chassis, with a 2.27 x 1.14 m deck carrying 450 kg up to 10 m and 320 kg above.

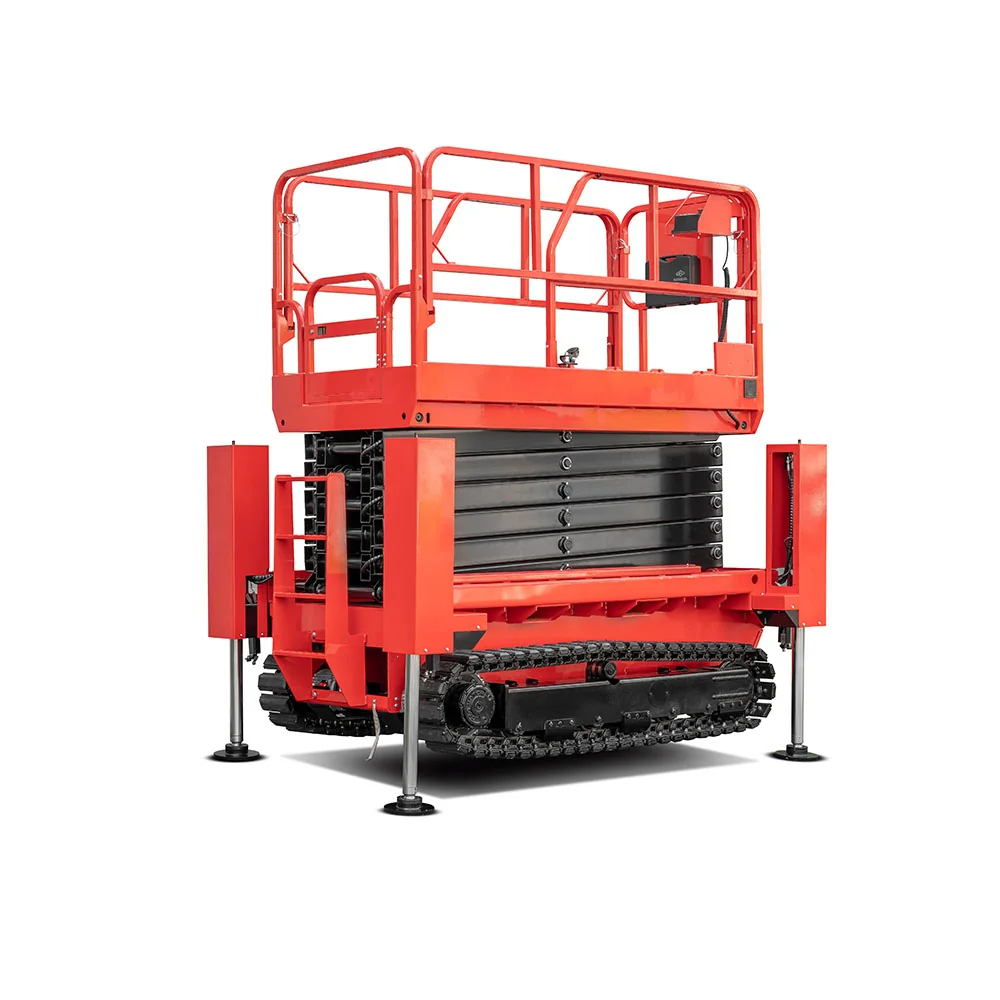

- HS0816TP to HS1416TP: the same heights on a 1.6 m wide chassis with one-button automatic outrigger levelling, allowing two people outdoors up to 12 m.

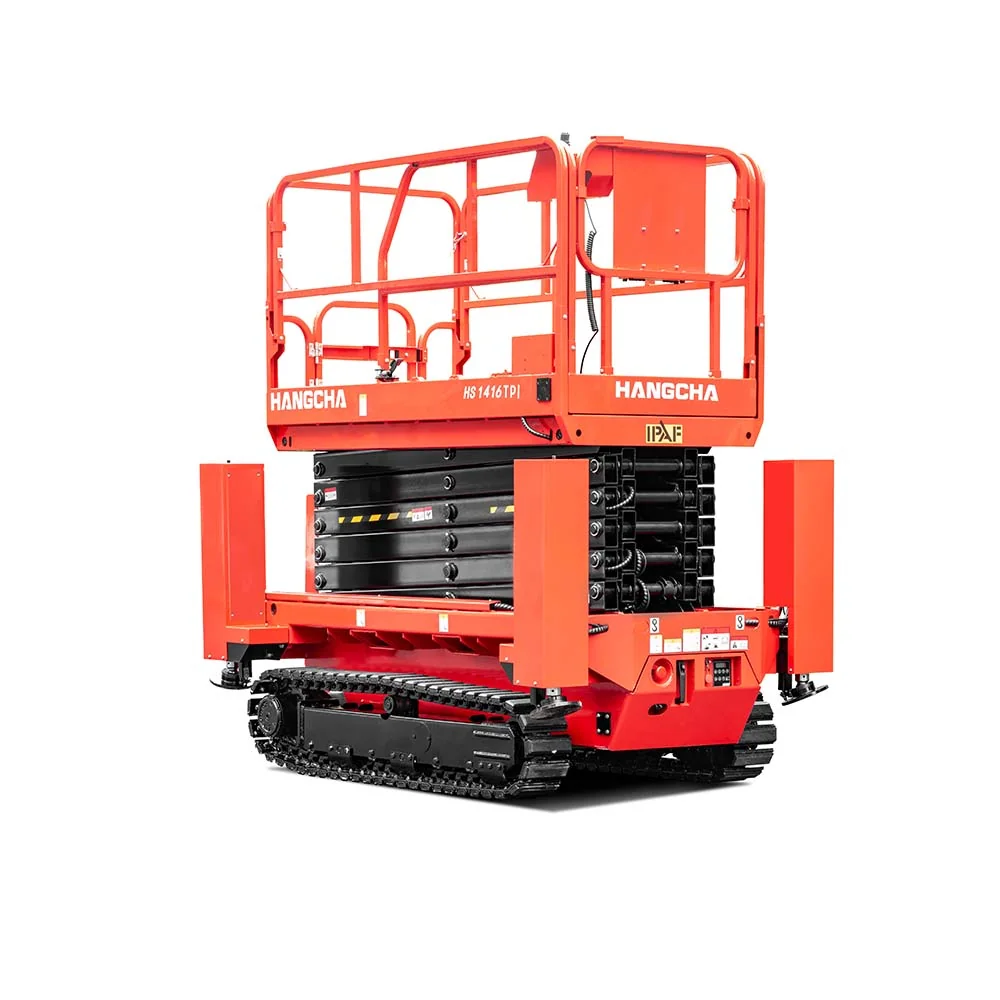

The larger models use an 80V/105Ah lithium battery with a 6-year or 12,000-hour warranty and an internal charger that works from a household socket. All models drive at 2 km/h, only when lowered, and every deck has an extension (0.6 m on the compact models, 0.9 m on the larger ones) rated at 113 kg. For a wheeled electric model for rough terrain, see the HS Series rough terrain scissor lift PMSM.
Practical Features for Daily Operation
Electric Crawler Drive
Electric tracks spread the load for soft, uneven or sensitive ground.
Up to 13.8 m Working Height
Working height of up to 13.8 m, with platform capacity of 230-450 kg by model.
Gradeability Up to 30%
Rated for grades of up to 30%; site slope rules still apply.
Full Specifications
| Capacity | 230-450 kg |
|---|---|
| Power | Electric crawler drive |
| Working Height | Up to 13.8 m |
| Platform Size | 1.29 x 0.7m / 1.09 x 0.7m / 2.27 x 1.14m |
| Drive Type | Electric crawler drive |
| Gradeability | Up to 30% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HS0408TA
- HS0608TA
- HS0608TP
- HS0814TP
- HS1014TP
- HS1214TP
- HS1414TP
- HS0816TP
- HS1016TP
- HS1216TP
- HS1416TP
| Model | Working height | Capacity | Deck size | Width | Outriggers | Weight |
|---|---|---|---|---|---|---|
| HS0408TA | 5.9 m | 230 kg | 1.29 x 0.7 m | 0.83 m | No | 980 kg |
| HS0608TA | 6.5 m | 230 kg | 1.29 x 0.7 m | 0.83 m | No | 930 kg |
| HS0608TP | 6.5 m | 230 kg | 1.09 x 0.7 m | 0.78 m | No | 860 kg |
| HS0814TP | 8 m | 450 kg | 2.27 x 1.14 m | 1.4 m | No | 2,470 kg |
| HS1014TP | 10 m | 450 kg | 2.27 x 1.14 m | 1.4 m | No | 2,650 kg |
| HS1214TP | 12 m | 320 kg | 2.27 x 1.14 m | 1.4 m | No | 3,050 kg |
| HS1414TP | 13.8 m | 320 kg | 2.27 x 1.14 m | 1.4 m | No | 3,340 kg |
| HS0816TP | 8 m | 450 kg | 2.27 x 1.14 m | 1.6 m | Automatic levelling | 2,870 kg |
| HS1016TP | 10 m | 450 kg | 2.27 x 1.14 m | 1.6 m | Automatic levelling | 3,050 kg |
| HS1216TP | 12 m | 320 kg | 2.27 x 1.14 m | 1.6 m | Automatic levelling | 3,450 kg |
| HS1416TP | 13.8 m | 320 kg | 2.27 x 1.14 m | 1.6 m | Automatic levelling | 3,740 kg |
Platform height is 2 m below working height. Extension decks are rated at 113 kg. Figures from the Hangcha HS Series electric crawler scissor lift brochure (2025).
