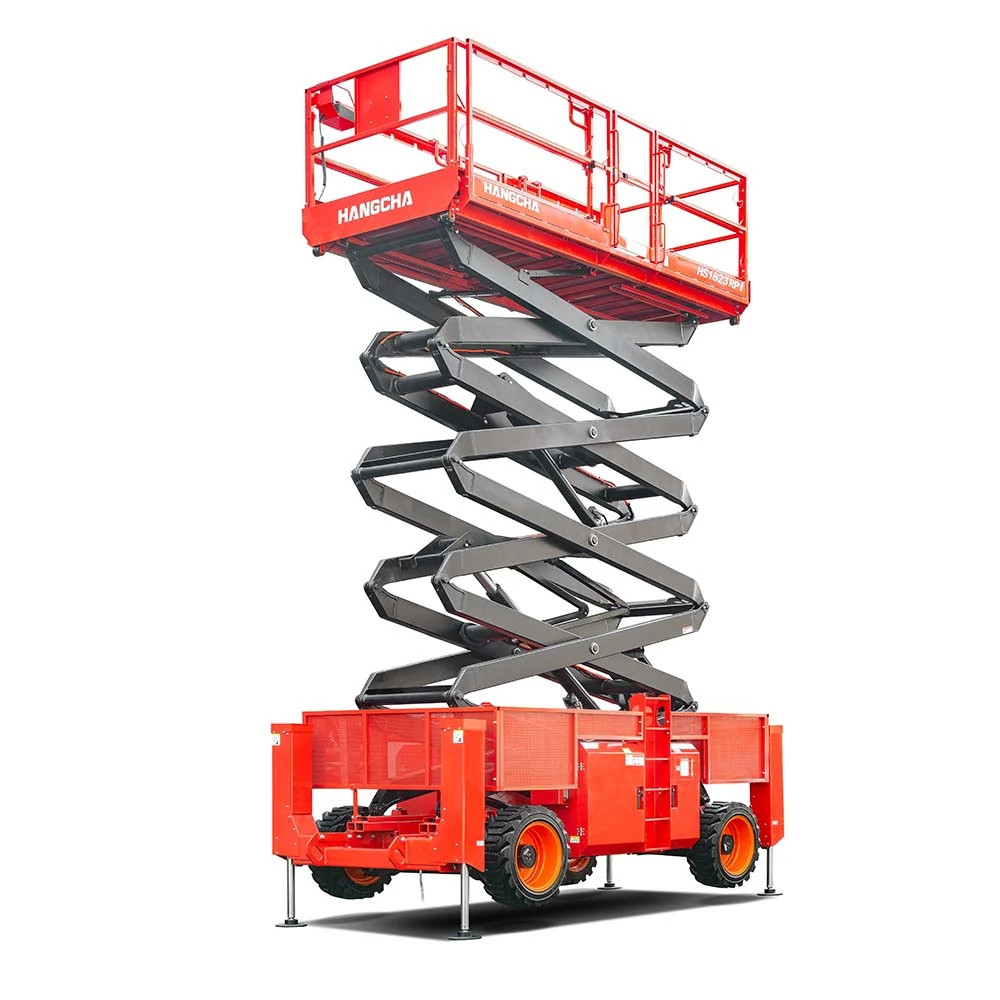

Hangcha HS Series Rough Terrain Scissor Lift
A rough terrain scissor lift range for outdoor work on uneven ground, with working heights up to 18 m and platform capacities of 230-1,150 kg for access work at height.
680-1,150 kg
Capacity
Diesel
Power
Up to 18 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an HS Series Diesel Rough Terrain Scissor Lift

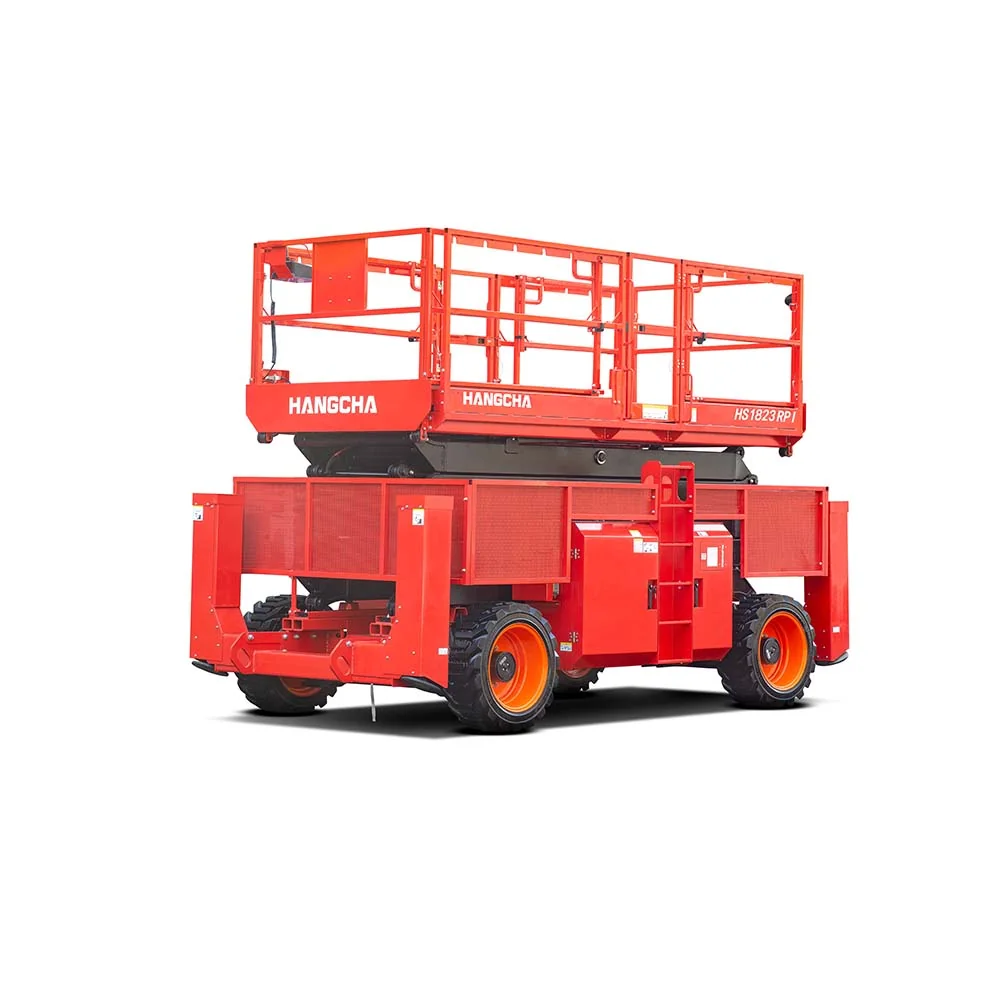

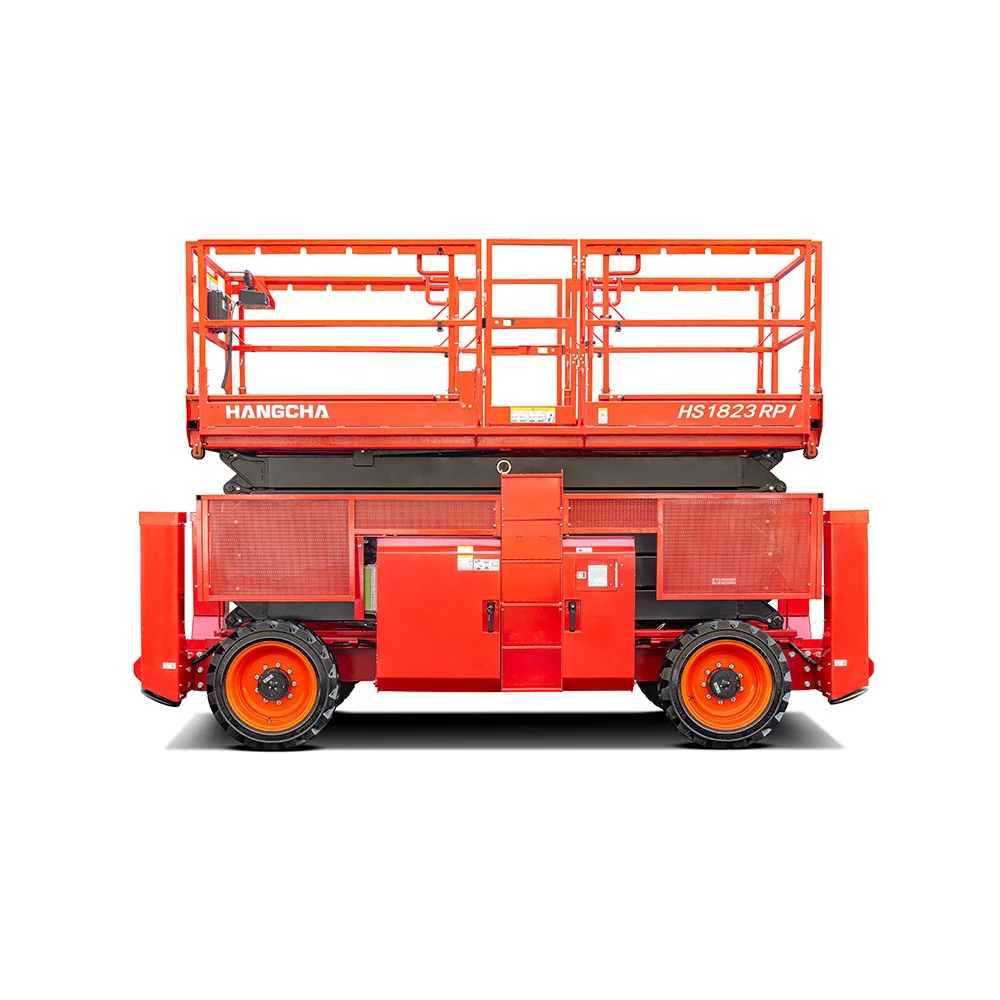

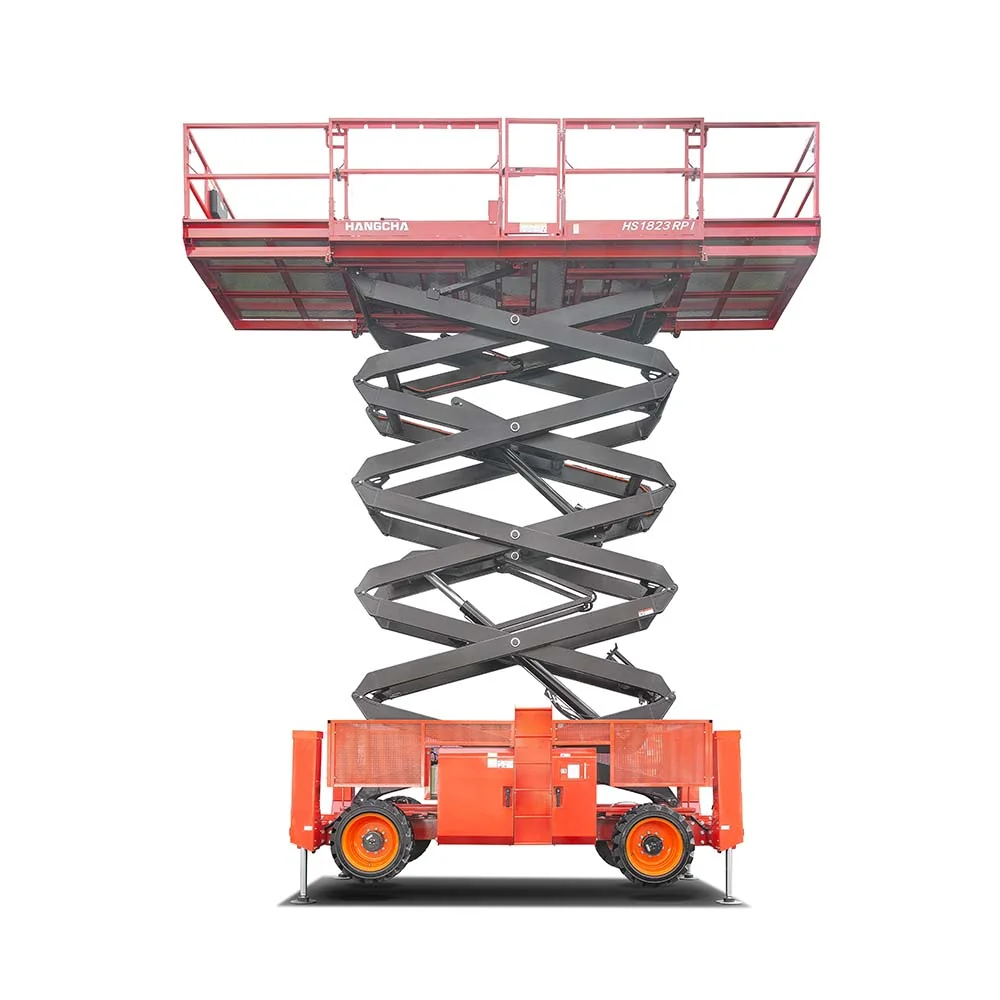

The HS Series rough terrain scissor lift is a diesel machine with a 36 kW Kubota engine, 4-wheel drive and solid tyres, for indoor and outdoor jobs such as ceilings, curtain walls, billboards, street lamps and construction sites. All three models share a 3.9 x 1.83 m deck with extensions and a 2.28 m wide chassis.
- HS1223RH: 12 m working height and the highest capacity at 1,150 kg, with 50% gradeability.
- HS1523RH: 15 m working height, 680 kg capacity and 45% gradeability.
- HS1823RH: 18 m working height, 680 kg capacity and 40% gradeability.
Every model carries 230 kg on the extension deck and can be driven at height at up to 1.1 km/h, or 6.3 km/h stowed. A tilt alarm allows only descent beyond the safe angle, the hydraulic disc brake holds on a 22-degree slope, and the engine shuts down automatically on overheating or low oil pressure. For a battery-electric version, see the HS Series rough terrain scissor lift PMSM.
Practical Features for Daily Operation
Electric Drive
Electric drive for outdoor access work without engine exhaust on site.
Large Work Platform
A 3.9 m by 1.83 m platform with capacity of 230-1,150 kg by model.
Up to 18 m Working Height
Working height of up to 18 m, with gradeability of up to 50%.
Full Specifications
| Capacity | 680-1,150 kg |
|---|---|
| Power | Diesel |
| Working Height | Up to 18 m |
| Platform Size | 3.9 x 1.83m |
| Drive Type | Diesel |
| Gradeability | Up to 50% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HS1223RH
- HS1523RH
- HS1823RH
| Model | Working height | Platform height | Capacity (deck / extension) | Gradeability | Stowed height | Weight |
|---|---|---|---|---|---|---|
| HS1223RH | 12 m | 10 m | 1,150 / 230 kg | 50% | 2.88 m | 6,850 kg |
| HS1523RH | 15 m | 13 m | 680 / 230 kg | 45% | 3.1 m | 7,350 kg |
| HS1823RH | 18 m | 16 m | 680 / 230 kg | 40% | 3.3 m | 8,850 kg |
Stowed height with guardrails up. Figures from the Hangcha HS Series rough terrain scissor lift brochure (2025).
