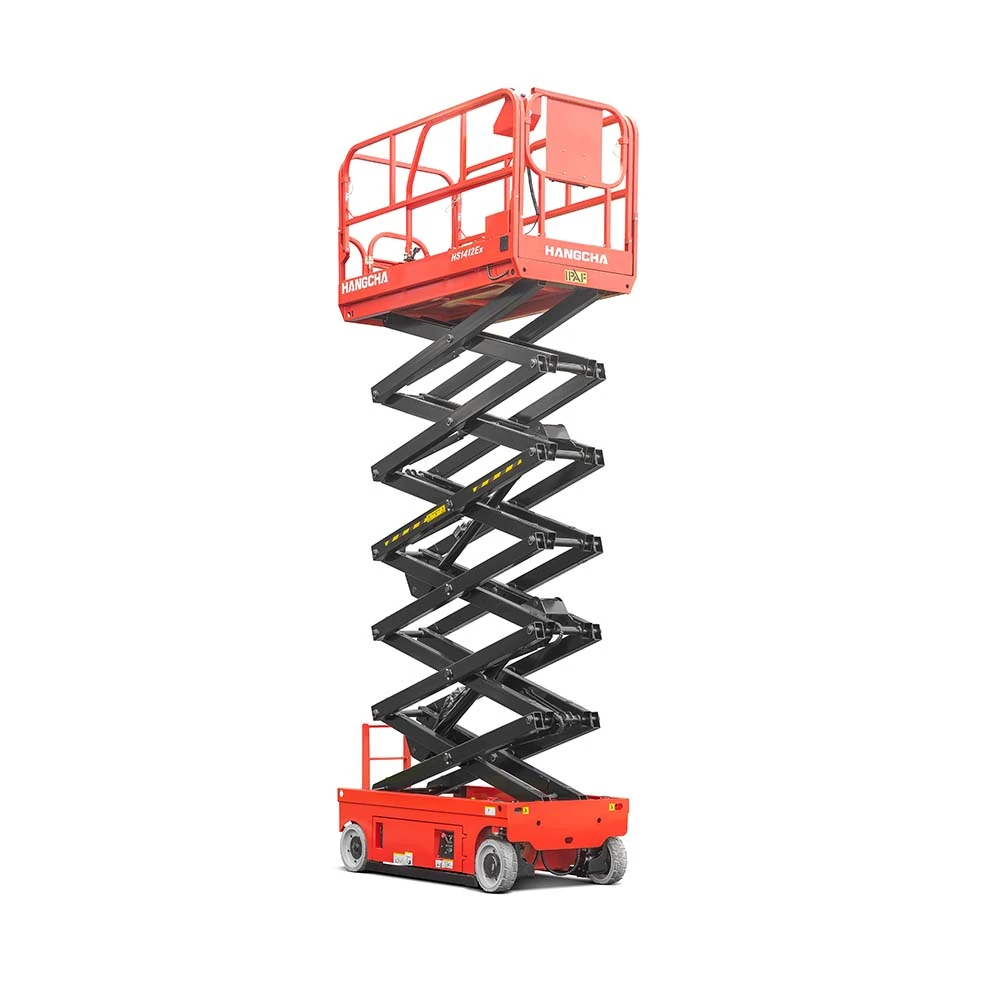

Hangcha HS Series Scissor Lift E-Drive
An E-Drive scissor lift range for indoor and outdoor operations, with working heights up to 15.7 m and platform capacities of 230-450 kg for access work where height and platform load guide equipment selection.
230-450 kg
Capacity
Electric E-Drive
Power
Up to 15.7 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an HS Series E-Drive Scissor Lift: Height and Platform
The Hangcha HS Series E-Drive scissor lift is a battery-electric scissor lift with AC drive motors, proportional controls and a CAN-bus fault code screen. Nine models give working heights from 8 m to 15.7 m (platform heights 6 m to 13.7 m), and every one turns on the spot with a zero inside turning radius and climbs 25% grades.
- Narrow 0.81 m models (HS0808A, HS1008A): 8 m and 10 m working height for indoor work, carrying 380 kg and 230 kg.
- 1.15 m models (HS0812A to HS1412A): 8 m to 13.8 m working height. The HS0812A and HS1012A carry the most at 450 kg, and the 8-12 m models are the ones rated for outdoor use with one worker.
- 16 m class (HS1614A, HS1614A-P, HS1612A): 15.7 m working height on a 2.64 m deck. The HS1612A is narrower at 1.25 m, and the HS1614A-P carries 350 kg against 230 kg.
Every model has a 0.9 m deck extension rated at 113 kg (120 kg on the HS1614A-P) and drives at up to 4 km/h when stowed. A maintenance-free 24V battery bank and an internal charger are standard, with a 25.6V lithium battery optional. An anti-overturning system and an emergency descent device are fitted, and working lights, a basket socket and an anti-overload system are options. Models above 12 m and the narrow models are rated for indoor use only. For a 4-wheel drive diesel machine for site work, compare the HS Series rough terrain scissor lift.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Working Heights to 15.7 m
Working heights of up to 15.7 m with platform heights to 13.7 m for overhead access.
Platform Loads to 450 kg
Platform capacities of 230-450 kg and decks up to 2.64 m long for crew, tools and materials.
Full Specifications
| Capacity | 230-450 kg |
|---|---|
| Power | Electric E-Drive |
| Working Height | Up to 15.7 m |
| Platform Size | 2.27 x 0.78m / 2.27 x 1.14m / 2.64 x 1.14m / 2.64 x 1.12m |
| Drive Type | Electric E-Drive |
| Gradeability | Up to 25% |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HS0808A
- HS1008A
- HS0812A
- HS1012A
- HS1212A
- HS1412A
- HS1614A
- HS1612A
| Model | Working height | Platform capacity | Platform size | Width | Use | Weight |
|---|---|---|---|---|---|---|
| HS0808A | 8 m | 380 kg | 2.27 x 0.78 m | 0.81 m | Indoor | 2,030 kg |
| HS1008A | 10 m | 230 kg | 2.27 x 0.78 m | 0.81 m | Indoor | 2,200 kg |
| HS0812A | 8 m | 450 kg | 2.27 x 1.14 m | 1.15 m | Indoor / outdoor | 2,170 kg |
| HS1012A | 10 m | 450 kg | 2.27 x 1.14 m | 1.15 m | Indoor / outdoor | 2,340 kg |
| HS1212A | 12 m | 320 kg | 2.27 x 1.14 m | 1.15 m | Indoor / outdoor | 2,740 kg |
| HS1412A | 13.8 m | 320 kg | 2.27 x 1.14 m | 1.15 m | Indoor | 3,030 kg |
| HS1614A | 15.7 m | 230 kg | 2.64 x 1.14 m | 1.40 m | Indoor | 3,270 kg |
| HS1614A-P | 15.7 m | 350 kg | 2.64 x 1.12 m | 1.40 m | Indoor | 3,670 kg |
| HS1612A | 15.7 m | 230 kg | 2.64 x 1.14 m | 1.25 m | Indoor | 3,270 kg |
Platform height is working height minus 2 m. Outdoor use is rated for one worker. Figures from the Hangcha HS Series E-Drive scissor lift brochure (2026).
