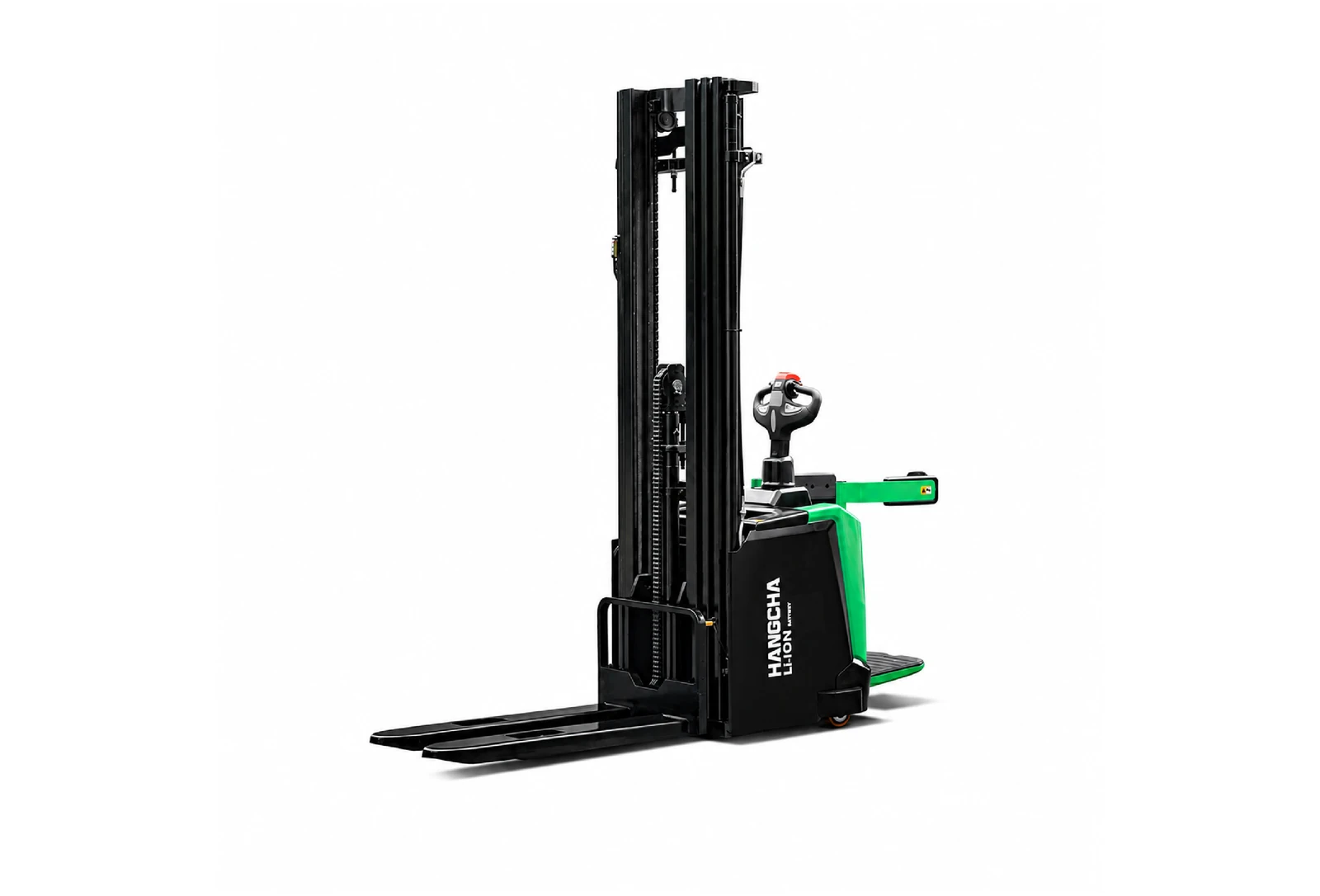

XA Series Pallet Stacker 1.2-2 t
A 1.2-2 t pallet stacker range for indoor warehouse operations, with lift heights of up to 6 m for pallet movement and stacking where load, lift height and operating space need to be matched.
1.2-2 t
Capacity
Li-ion / Lead-acid
Power
Up to 6 m
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XA Series Pallet Stacker Model
The XA Series pallet stacker is a stand-on 24V stacker from 1.2 t to 2 t with AC drive and electric power steering, offered with a lithium battery on the I models or lead-acid. Choose by load weight, then by chassis width.
- CDD12 (1,200 kg): the quickest model, with 6 km/h laden travel, 0.11 m/s laden lift and 8% laden gradeability.
- CDD16 and CDD20 (1,600-2,000 kg): 5 km/h laden travel and 5% laden gradeability, with a larger 24V/280Ah lead-acid battery as the alternative to lithium.
- 800 mm or 900 mm chassis: the 4-pivot version is 800 mm wide for tight aisles, while the 5-pivot version is 900 mm wide with two caster wheels instead of one.
All models have a 1,610 mm turning radius and need a 2,260 mm aisle for 1000 x 1200 mm pallets, rated at a 600 mm load centre with a 2,700 mm standard lift. The lithium I models use a 24V/150Ah LiFePO4 battery with a 6-year or 12,000-hour warranty and weigh 160-175 kg less than the lead-acid versions. F2 models suit cold stores down to -30°C.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Stacking to 6 m

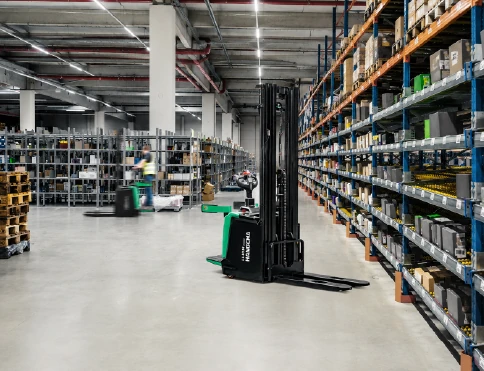

Lift heights of up to 6 m for stacking pallets into warehouse racking with a walkie stacker.
Fits 2,260 mm Aisles
A minimum aisle width of 2,260 mm and 1,610 mm turning radius suit compact warehouses.
Full Specifications
| Capacity | 1.2-2 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | Up to 6 m |
| Battery Type / Voltage | Li-ion / Lead-acid, 24V |
| Minimum Aisle Width | From 2,260mm |
| Turning Radius | 1,610mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CDD12
- CDD16
- CDD20
| Model | Capacity | Chassis width | Battery (lithium / lead-acid) | Laden travel | Laden lift speed | Laden gradeability |
|---|---|---|---|---|---|---|
| CDD12-XA | 1,200 kg | 800 / 900 mm | 24V 150Ah / 240Ah | 6 km/h | 0.11 m/s | 8% |
| CDD16-XA | 1,600 kg | 800 / 900 mm | 24V 150Ah / 280Ah | 5 km/h | 0.155 m/s | 5% |
| CDD20-XA | 2,000 kg | 800 / 900 mm | 24V 150Ah / 280Ah | 5 km/h | 0.125 m/s | 5% |
Rated at a 600 mm load centre with the standard 2,700 mm mast. Figures from the Hangcha XA Series electric stacker brochure.
