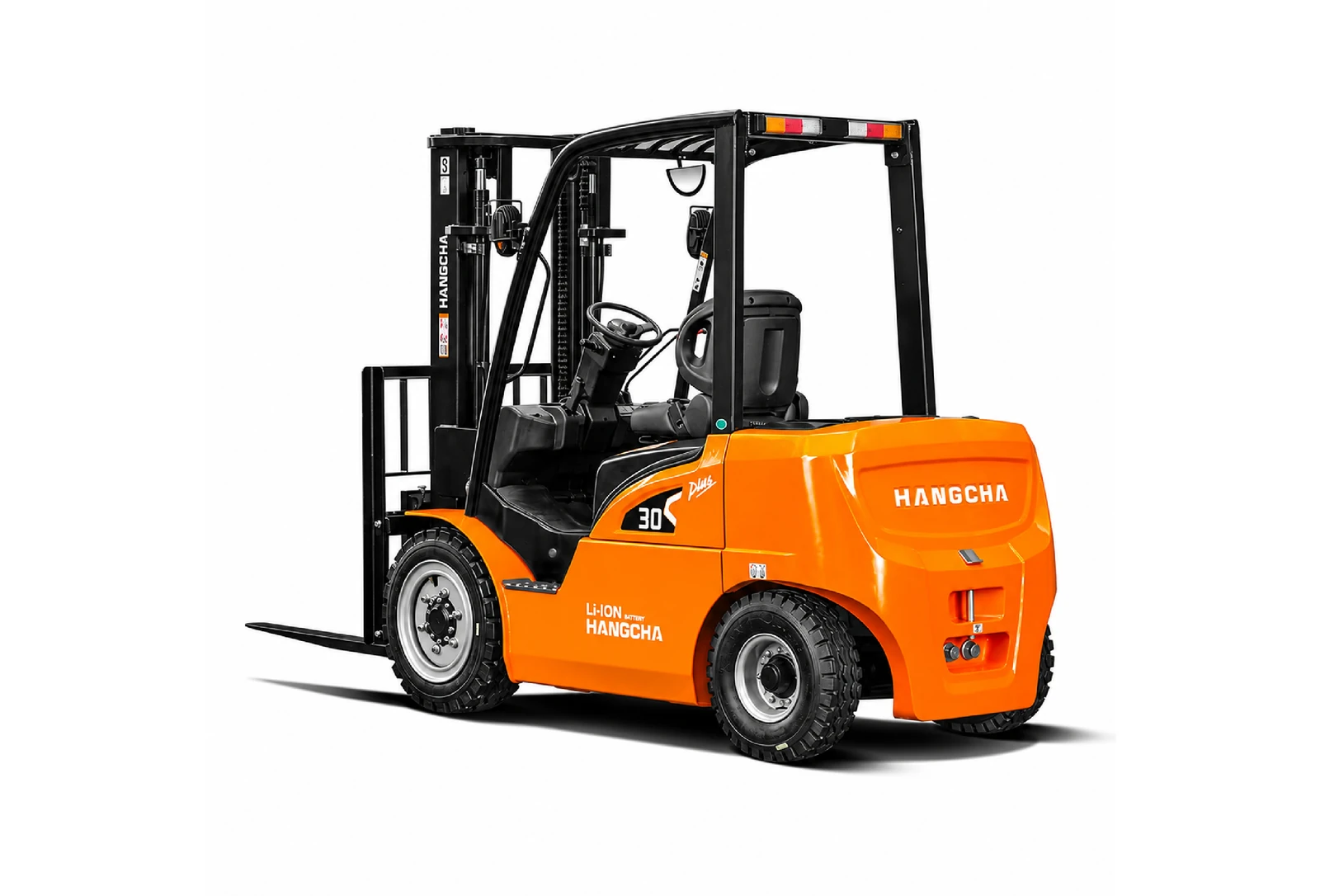

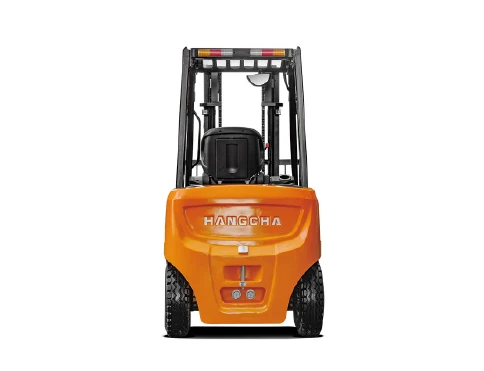

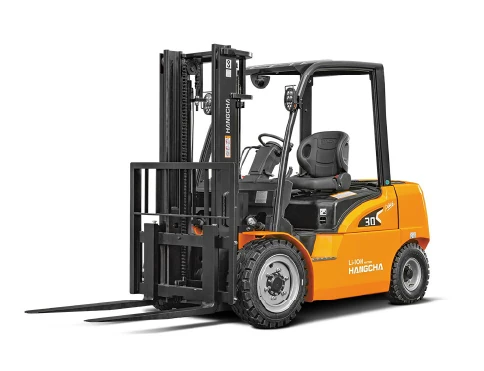

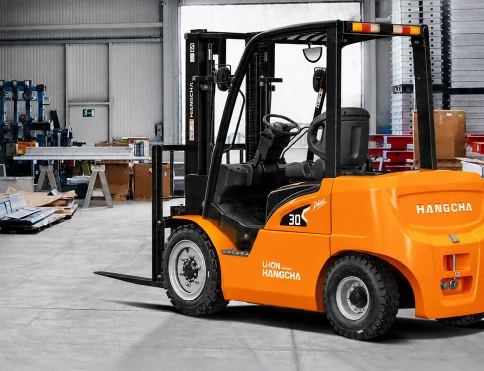

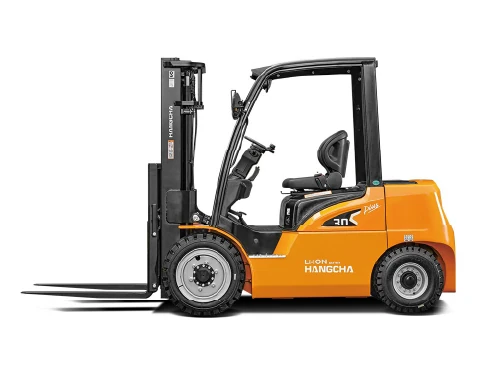

XH Series 4-Wheel Electric Forklift 2-3.8 t
A 2-3.8 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
2-3.8 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XH Series 2-3.8 t High-Voltage Model
The XH Series 2-3.8 t runs on a 309V high-voltage lithium battery with water cooling and permanent magnet synchronous drive, aimed at sites replacing engine forklifts. Every model reaches 21 km/h laden and charges fully in about an hour.
- CPD20 and CPD25 (2-2.5 t): a 2,360 mm turning radius, 25% laden gradeability and the fastest lifting in the range at 0.62 m/s laden.
- CPD30, CPD35 and CPD38 (3-3.8 t): 20% laden gradeability, a 2,420-2,460 mm turning radius and larger 28 x 9-15 front tyres for heavier outdoor loads.
All five share a 20 kW drive motor, 24 kW lift motor and a 309V/125Ah battery, with 150Ah as an option. They are rated at a 500 mm load centre with a 3,000 mm standard lift and triplex masts to 7 m, where the CPD38 still carries 1,950 kg on single tyres. Motors, controls and high-voltage parts are rated IP67.
Practical Features for Daily Operation
Electric Power
Permanent magnet electric drive with IPX4 body sealing, for indoor and outdoor work.
Wide-View Mast
A wide-view mast and larger carriage opening improve forward visibility past the load.
7 m Lift Height
Lifts 2-3.8 t loads to heights of up to 7 m, with gradeability up to 25%.
Full Specifications
| Capacity | 2-3.8 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 309V |
| Turning Radius | 2,360-2,460mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD20
- CPD25
- CPD30
- CPD35
- CPD38
| Model | Capacity | Capacity at 7 m (single / dual tyres) | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPD20-XY2G-SI24 | 2,000 kg | 1,000 / 1,150 kg | 2,360 mm | 4,024 mm | 25% | 3,670 kg |
| CPD25-XY2G-SI24 | 2,500 kg | 1,300 / 1,450 kg | 2,360 mm | 4,024 mm | 25% | 3,900 kg |
| CPD30-XY2G-SI24 | 3,000 kg | 1,650 / 1,850 kg | 2,420 mm | 4,099 mm | 20% | 4,570 kg |
| CPD35-XY2G-SI24 | 3,500 kg | 1,850 / 2,050 kg | 2,420 mm | 4,104 mm | 20% | 4,800 kg |
| CPD38-XY2G-SI24 | 3,800 kg | 1,950 / 2,150 kg | 2,460 mm | 4,144 mm | 20% | 5,030 kg |
Rated at a 500 mm load centre. Figures from the Hangcha XH Series 2-3.8 t brochure.
