Hangcha HV Series Vertical Mast Lift
Compact vertical mast lifts with 5.6-14 m working heights and 120-227 kg capacity, in self-propelled and push-around versions. They suit indoor maintenance and installation work in warehouses, exhibition halls and hangars.
120-227 kg
Capacity
Electric
Power
Up to 14 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
HV Series at a Glance

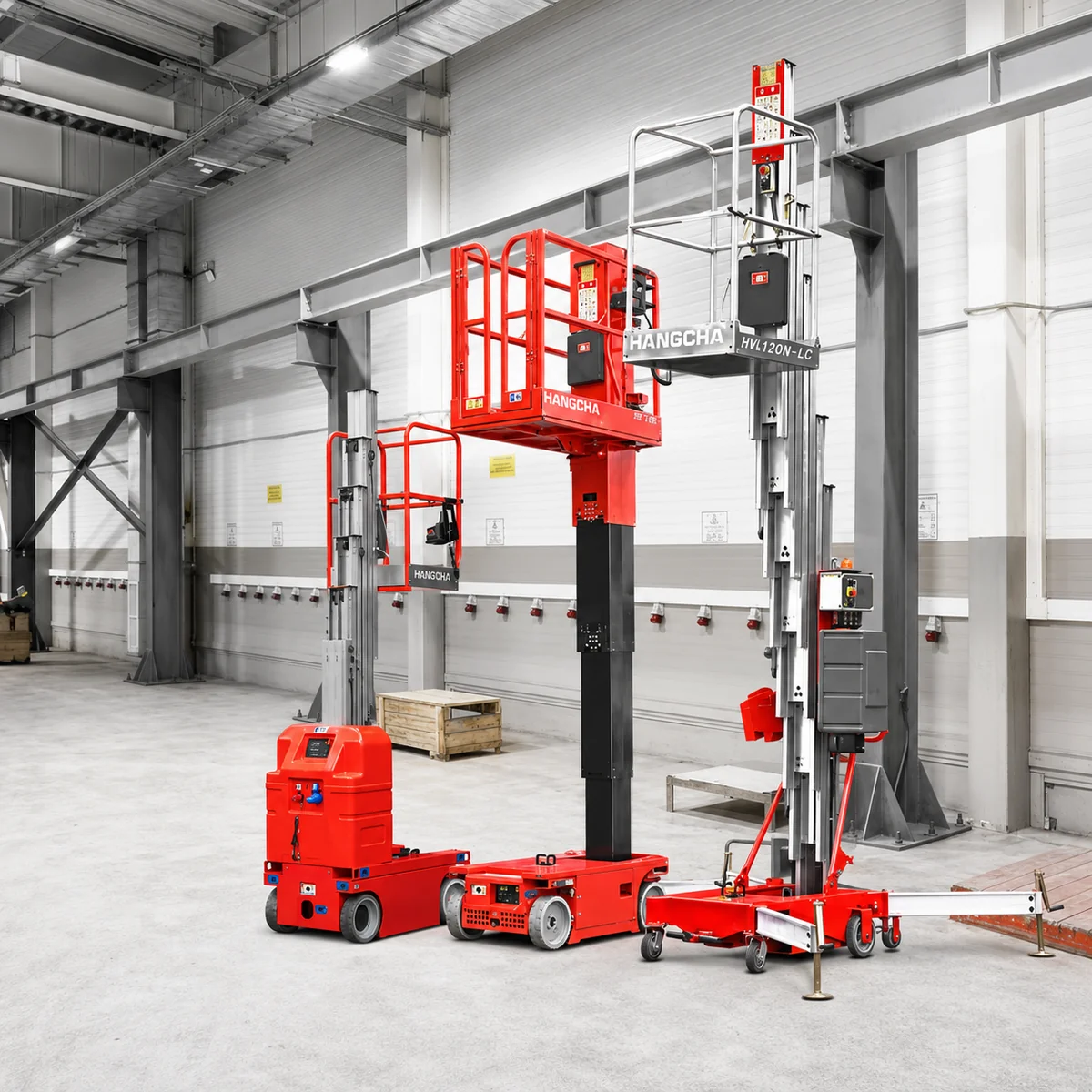

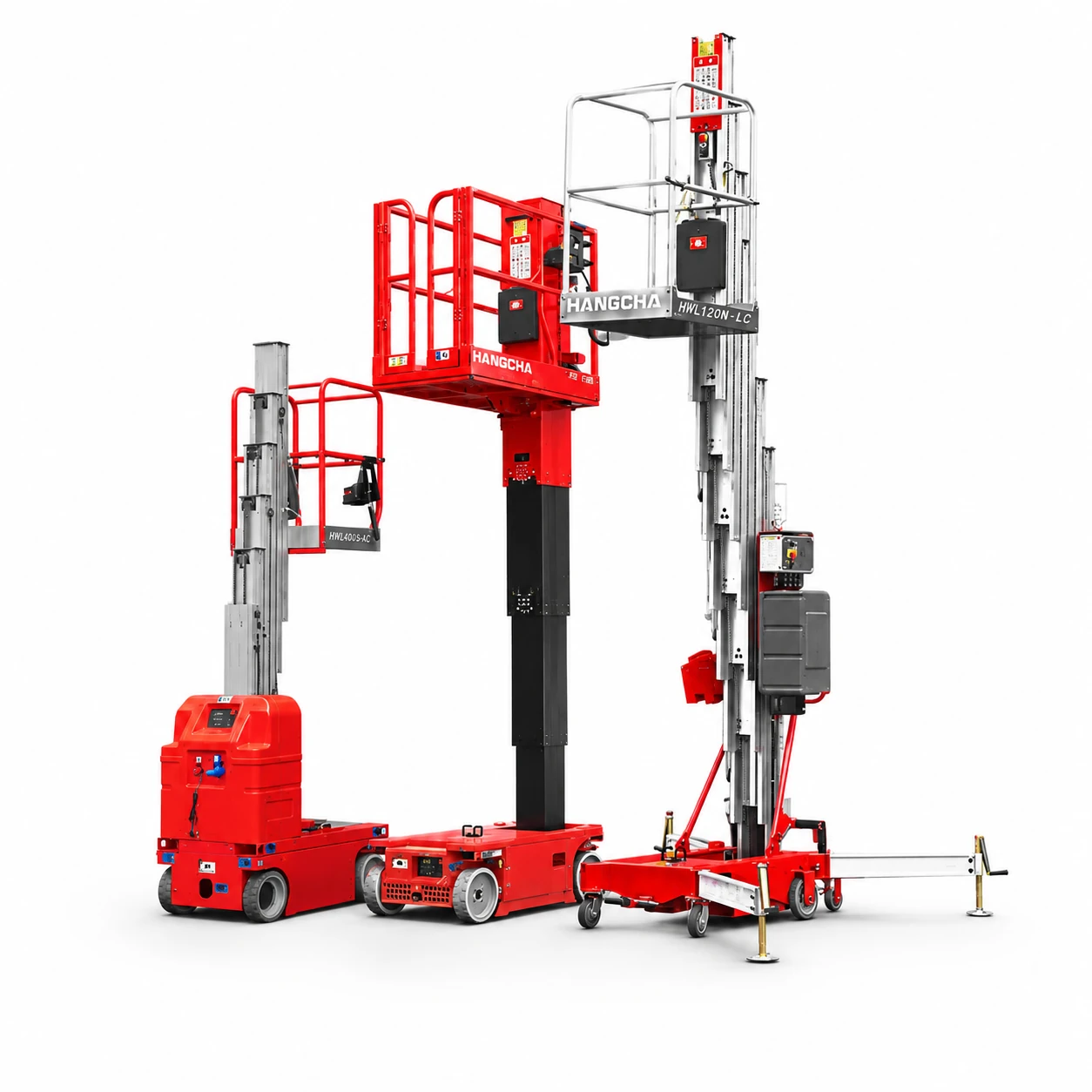

The Hangcha HV Series are compact vertical mast lifts for indoor maintenance and installation work in warehouses, exhibition halls and aircraft hangars. The range comes in three types, so start with whether you need to drive at height or can set up at each spot. Every vertical mast lift in the range is 0.76-0.82 m wide, so it passes through standard doorways and narrow aisles.

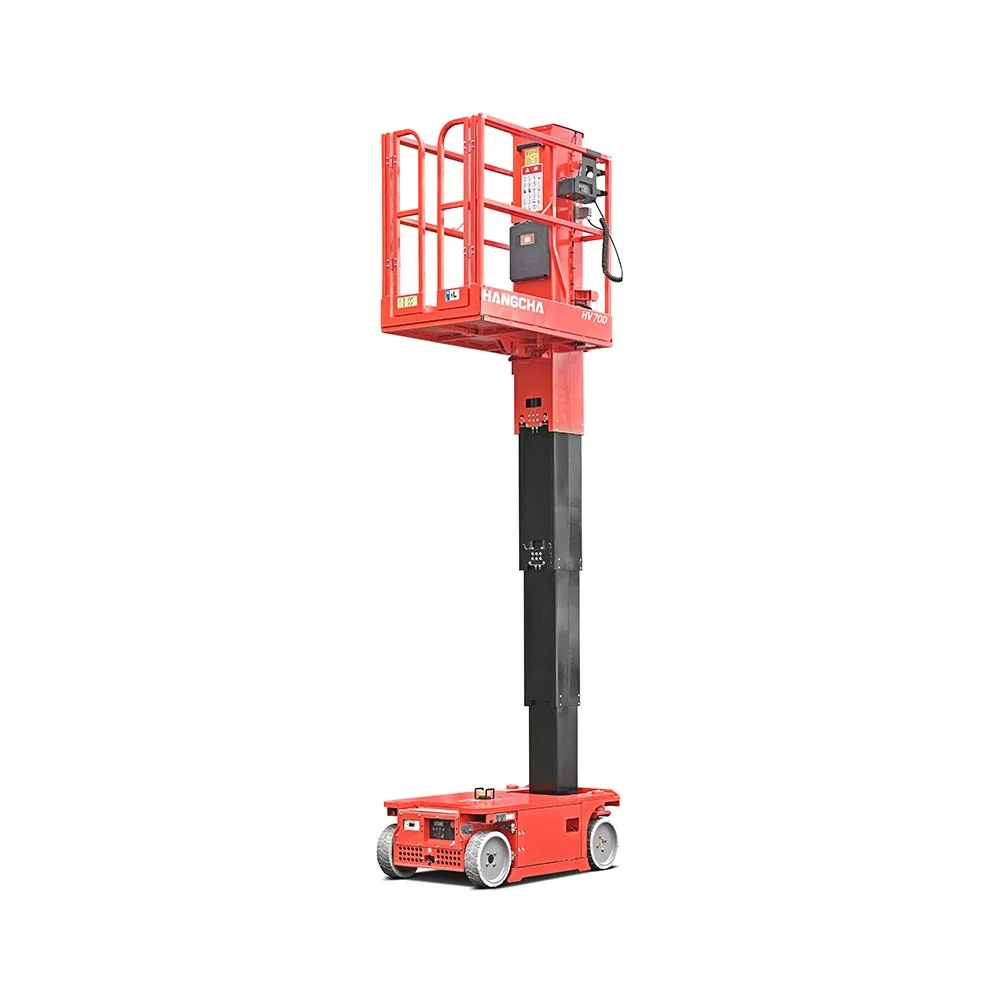

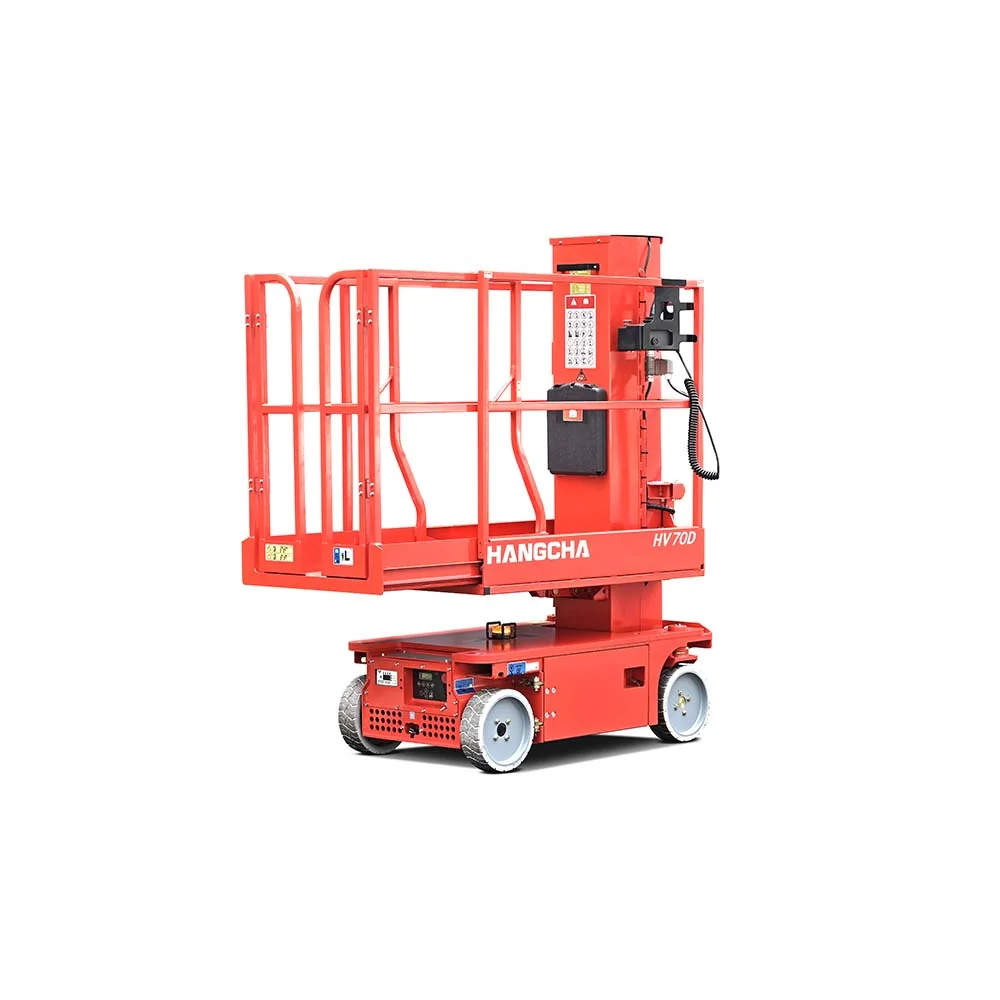

- Self-propelled HV60D, HV70D and HV80D: 5.6 m, 6.8 m and 8 m working height, carrying 227 kg (159 kg on the HV80D) plus 114 kg on the extension, and drivable at full height at 1.1 km/h.

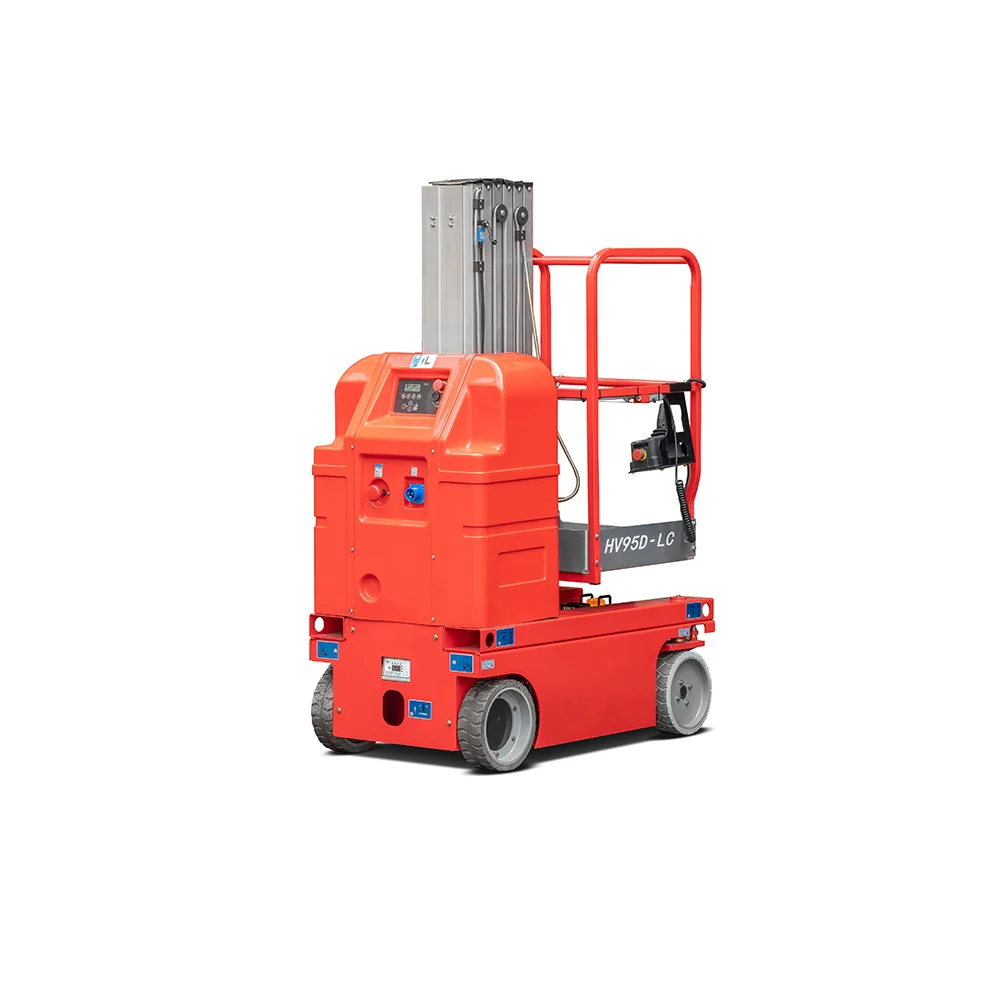

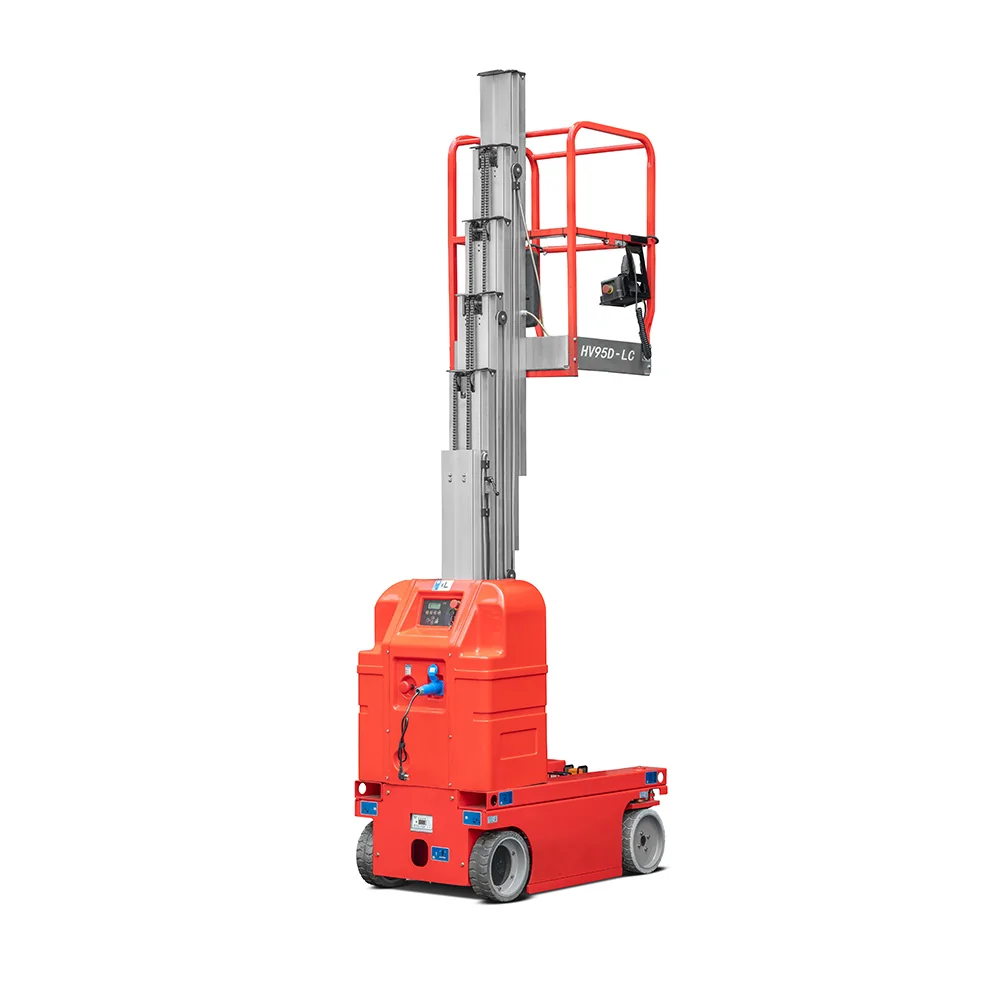

- Self-propelled single mast HV80D-LC and HV95D-LC: 8 m and 9.5 m working height for one person, carrying 150 kg and 125 kg on a 0.66 by 0.67 m platform.

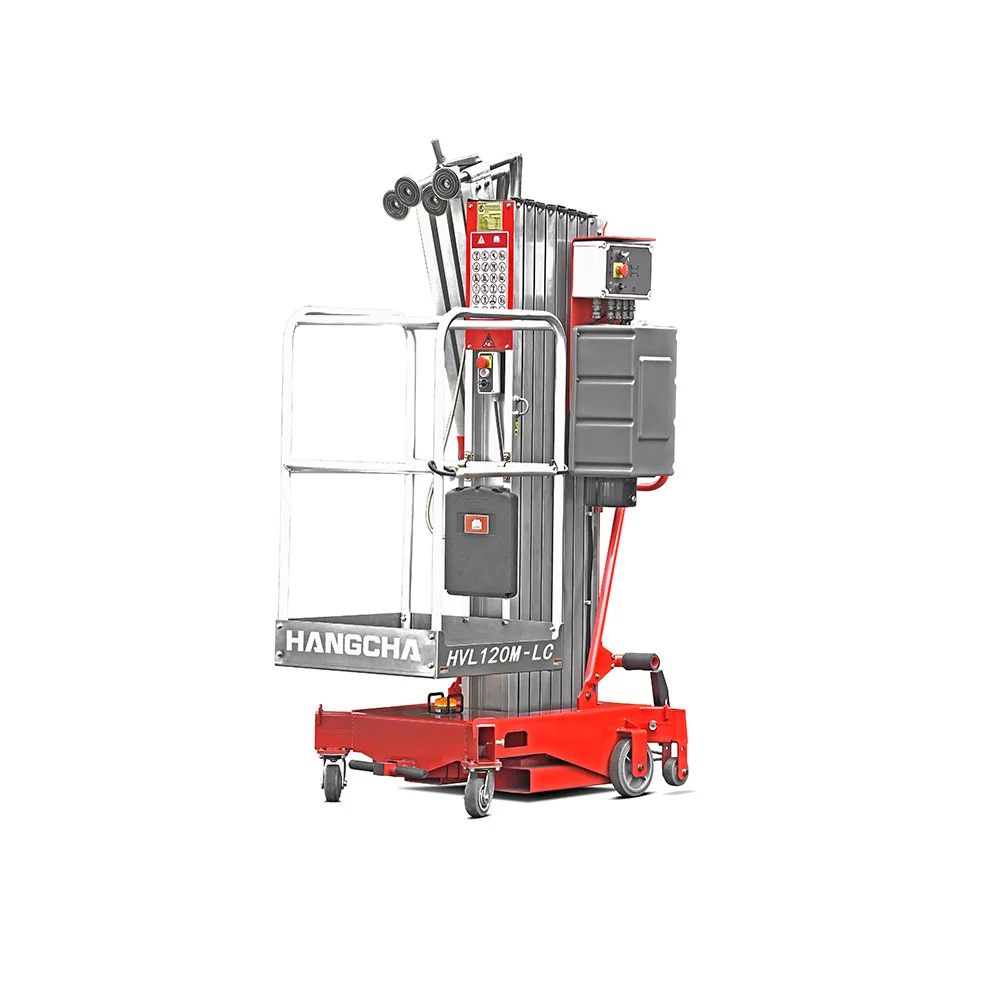

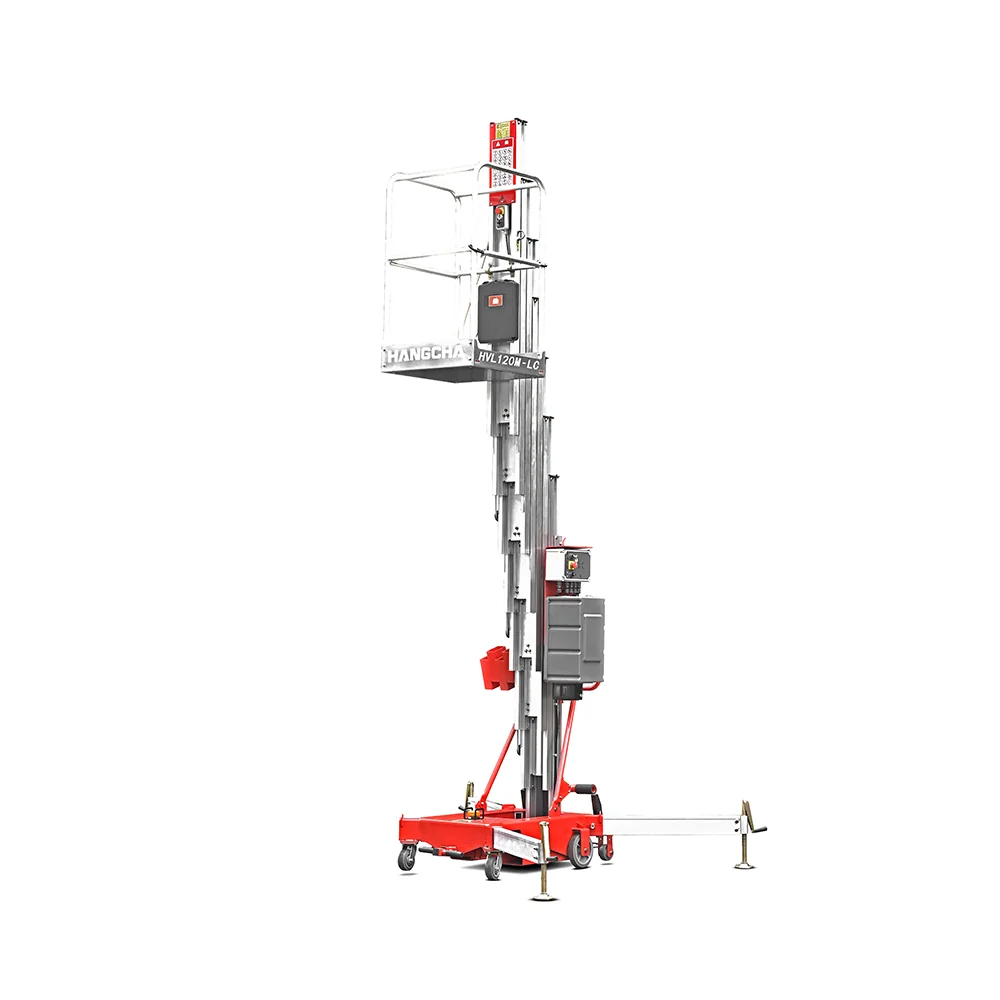

- Push-around single mast HV70M-LC to HV140M-LC: 6.7-14 m working height for one person, carrying 120-150 kg, with outriggers and an interlock that stops lifting until they're set.
The self-propelled models turn inside 0.3 m (1.8 m outside), travel at up to 4 km/h stowed, climb 25% and run on two 12V/100Ah batteries, with proportional controls, automatic pothole protection, non-marking tyres, emergency lowering and onboard diagnostics. The push-around models weigh 330-515 kg, run on AC or DC power and have forklift pockets for loading onto a ute or truck. A mast lift suits one person with tools, so choose a scissor lift if you need a bigger deck. The HV Series vertical mast lift AC adds extra outreach over obstacles.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Working Height to 14 m
Working heights of up to 14 m, with platform heights of up to 12 m for high access.
Narrow 760-820 mm Chassis
Machine widths of 760-820 mm and a 0.3 m inside turning radius suit tight aisles.
Full Specifications
| Capacity | 120-227 kg |
|---|---|
| Power | Electric |
| Working Height | Up to 14 m |
| Machine Width | 760-820mm |
| Turning Radius | Inside 0.3m; outside up to 1.8m |
| Drive Type | Electric |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HV80D
- HV95D
- HV70M
- HV80M
- HV100M
- HV110M
- HV120M
- HV140M
- HV60D
- HV70D
