Hangcha HV Series Vertical Mast Lift AC
A vertical mast lift range for indoor warehouse operations, with working heights of up to 11.22 m and platform capacities of 210 kg for access work where height, platform load and ground conditions guide equipment selection.
210 kg
Capacity
Electric
Power
Up to 11.22 m
Working Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.

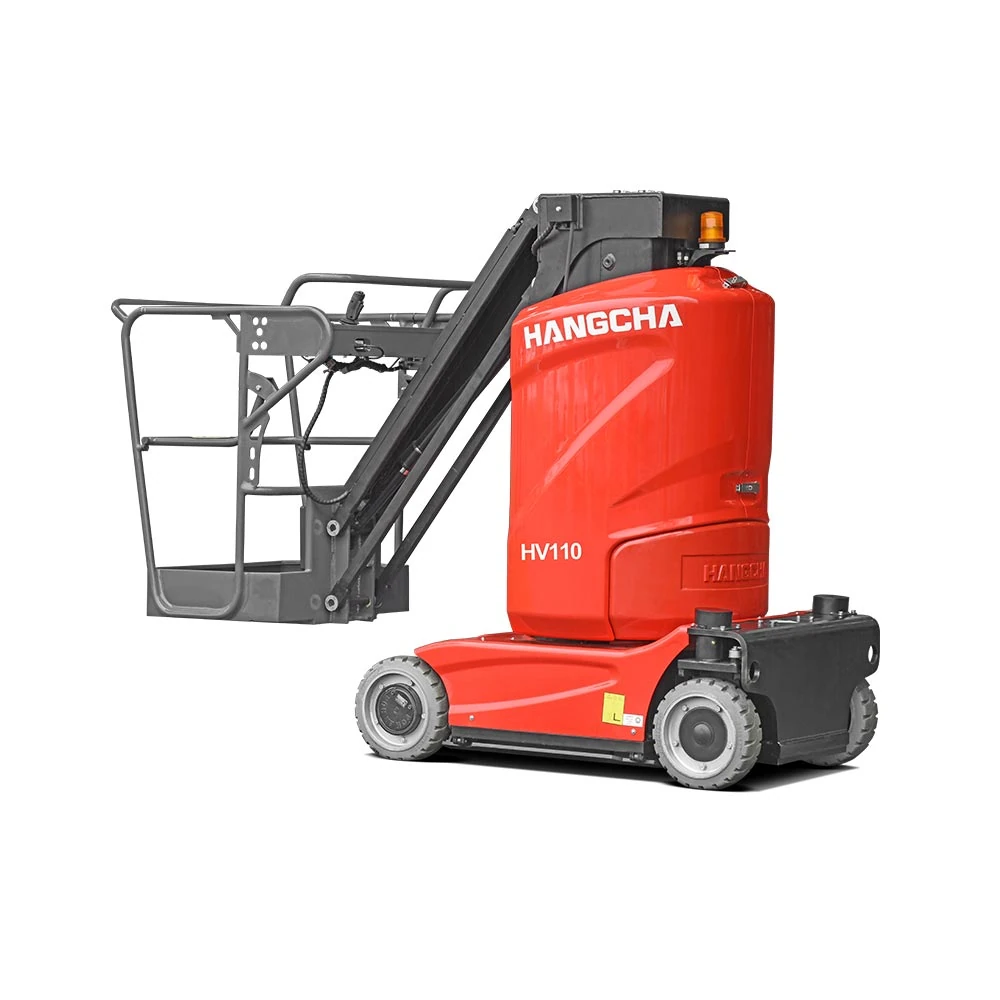

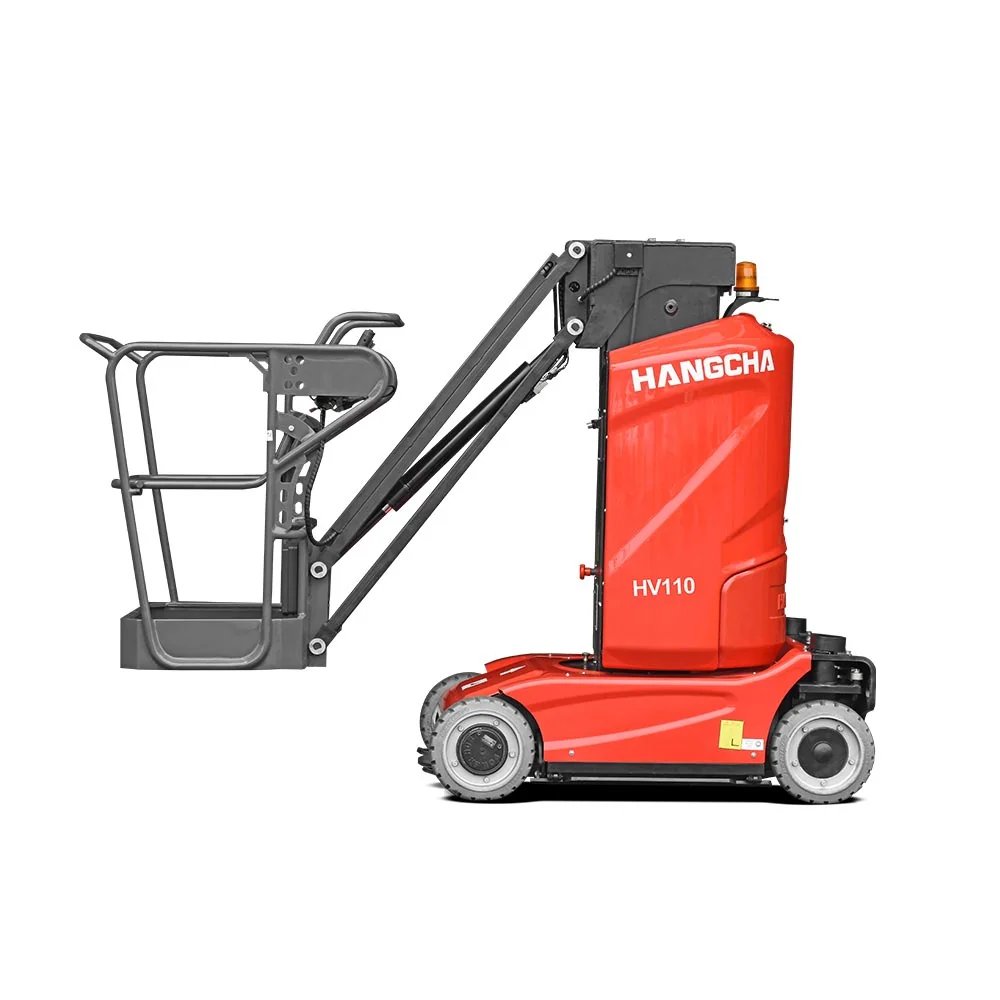

Choosing the HV110D Vertical Mast Lift

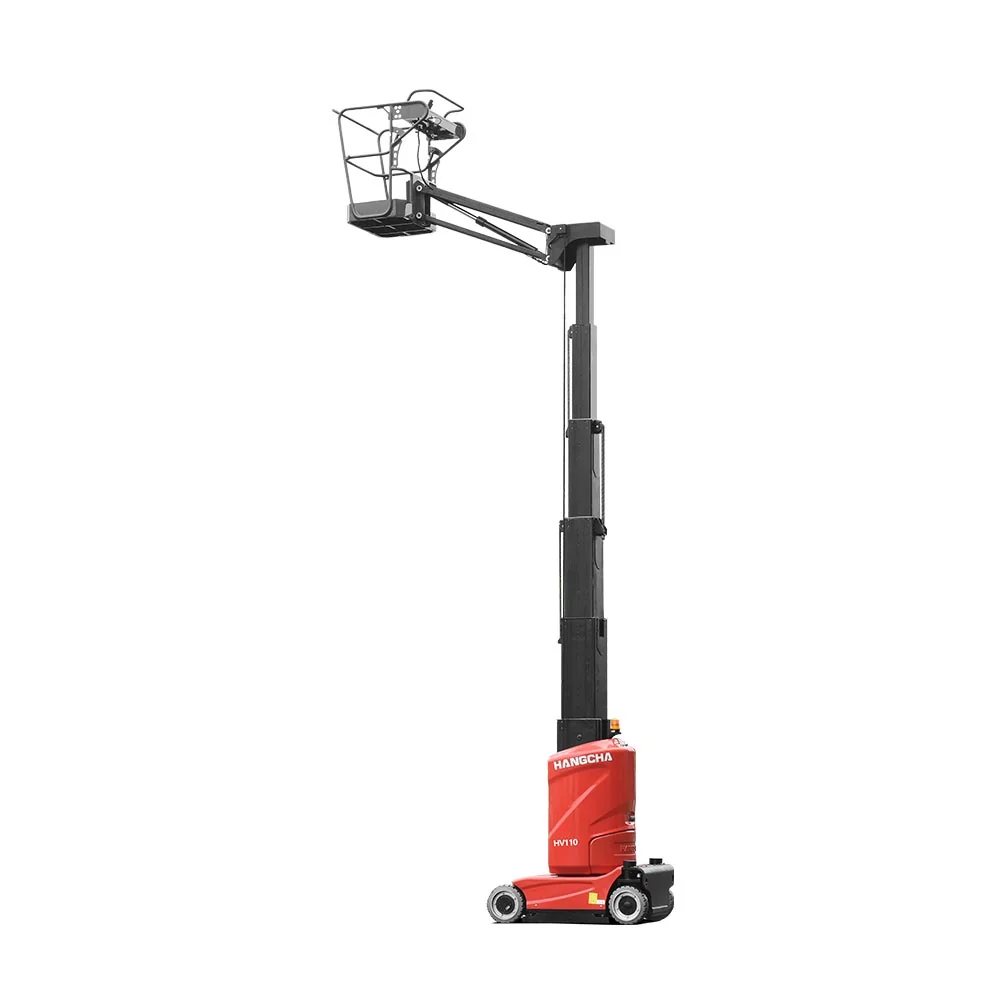

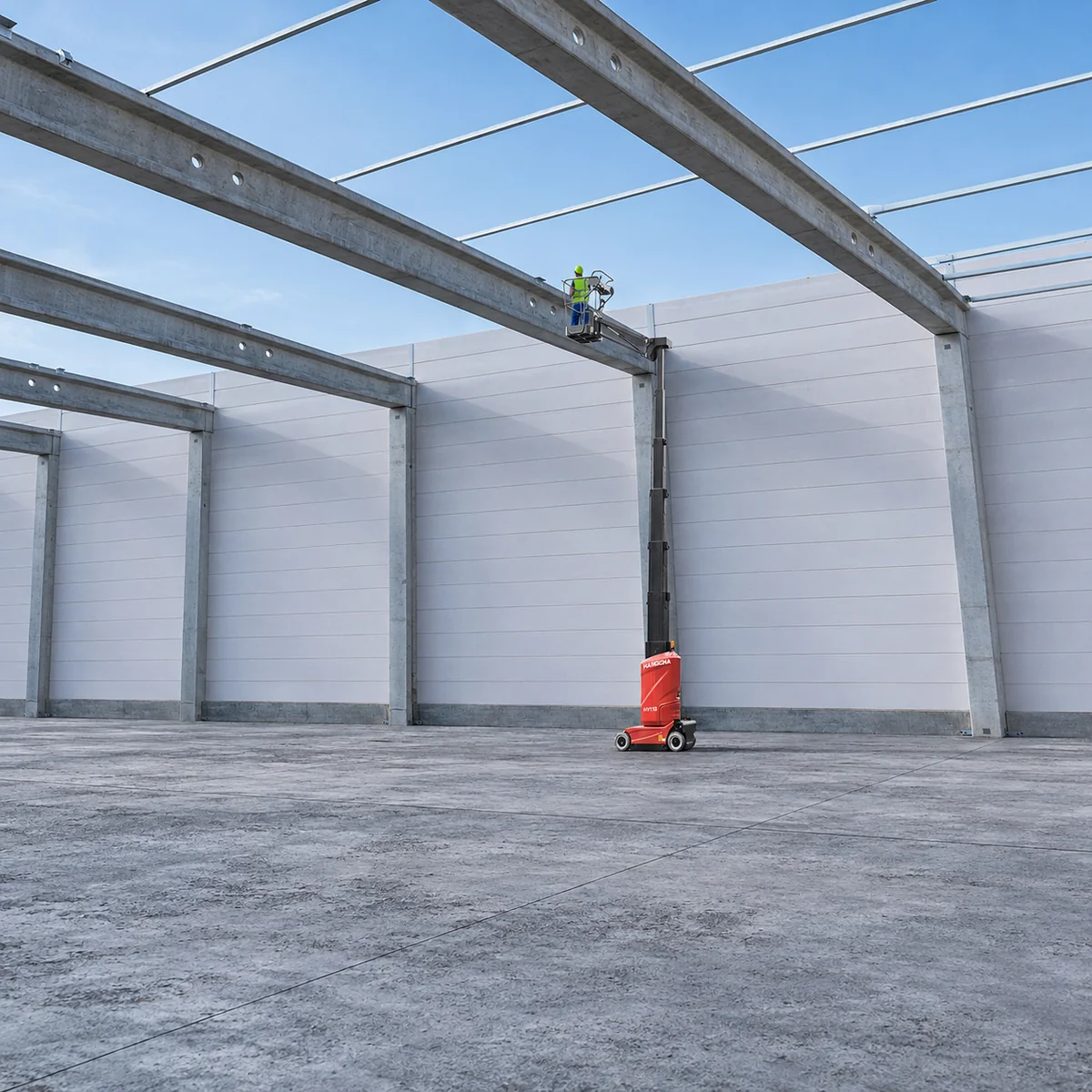

The HV110D is a battery-powered vertical mast lift for indoor maintenance and installation work, such as in warehouses, exhibition halls and aircraft maintenance. A 130-degree jib and a 345-degree turntable give 3 m of horizontal outreach and 7.89 m up-and-over height, so the operator can reach over obstacles.
- Height and load: 11.22 m working height and 9.22 m platform height, with 210 kg capacity for two people indoors or one outdoors.
- Size: 1 m wide and 2.65 m long, with a 0.23 m inside and 1.65 m outside turning radius.
- Battery: 24V/240Ah lead-acid or 25.6V/210Ah lithium, with an internal charger so the battery does not need removing.
An anti-overturning system deploys when the platform rises, and a sensor sounds an alarm beyond 2.5 degrees of tilt. Non-marking tyres, proportional controls and an emergency lowering system are standard. For greater height and outreach, see the Hangcha articulated boom lift.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

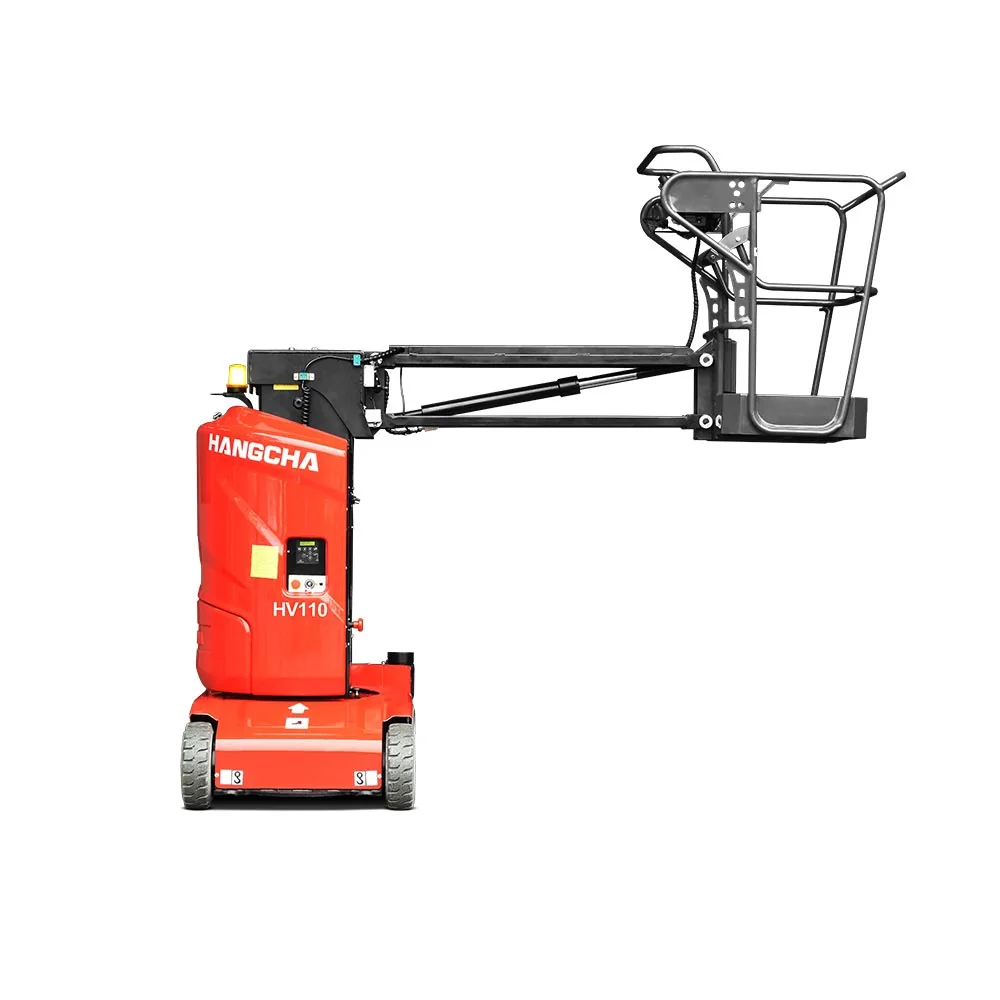

Rotating Jib and Turntable
A rotating jib and hydraulic turntable let operators position the platform precisely.
Tilt Alarm and Stability
A self-levelling sensor alarms on excess tilt, backed by an anti-overturn system.
Full Specifications
| Capacity | 210 kg |
|---|---|
| Power | Electric |
| Working Height | Up to 11.22 m |
| Machine Width | 1,000mm |
| Turning Radius | Inside 0.23m; outside 1.65m |
| Drive Type | Electric |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- HV110AJ
- HV120AJ
| Model | Working height | Platform height | Outreach | Capacity | Width | Weight |
|---|---|---|---|---|---|---|
| HV110D | 11.22 m | 9.22 m | 3 m | 210 kg | 1 m | 2,930 kg |
Figures from the Hangcha vertical mast lift brochure (2024).
