XA Series Mini Pallet Truck 1.5-2 t
A compact walk-behind electric pallet truck for 1.5-2 tonne loads, only 568 mm wide. It suits small warehouses, shops and tight loading areas with smooth floors.
1.5-2 t
Capacity
Li-ion
Power
120 mm
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
XA Series at a Glance

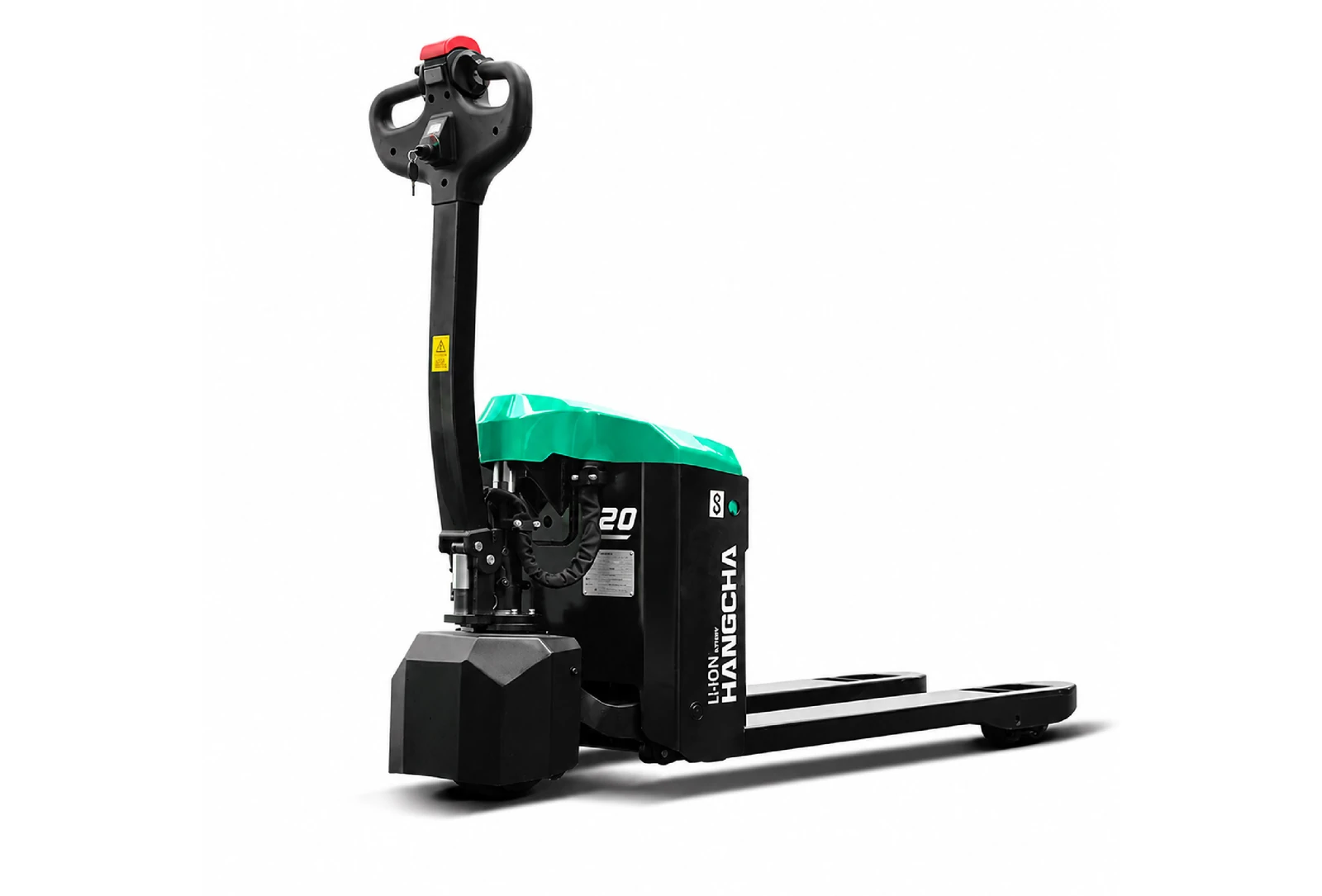

The Hangcha XA Series mini pallet truck is a compact walk-behind electric pallet truck for moving pallets of 1,500 kg or 2,000 kg on flat floors. It's 568 mm wide and 1,630 mm long, with 1,150 mm forks and a 1,445 mm turning radius, so this electric pallet jack suits tight aisles and small storerooms.
- Performance: 4.5/5 km/h laden/unladen on the 1.5 t model and 5/5.5 km/h on the 2 t, with 6-8% gradeability laden and 16% unladen.
- Battery: a 24V/40Ah lithium battery on the -I models, with a 3-year or 6,000-hour warranty, or a 24V/65Ah or 24V/85Ah pack on the other versions.
- Lift and weight: 120 mm lift, forks that lower to 80 mm and a service weight of 165-233 kg.
The permanent magnet brushless motor needs no brush maintenance, and the CAN bus tiller has a display plus a key switch, RFID card reader or password lock. Regenerative and emergency braking, ramp anti-rollback, an electronic lift limit switch and an emergency reverse button are standard, and the battery comes out from the front for service. With small wheels and 30 mm of ground clearance, it's made for smooth indoor floors rather than rough yards. Loads up to 3 tonnes need the XA Series pallet truck 2-3 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Triple Braking System
Regenerative, reverse-current and parking brakes combine for secure stopping control.
One-Handed Operation
All functions are controlled with one hand, reducing operator fatigue during the shift.
Full Specifications
| Capacity | 1.5-2 t |
|---|---|
| Power | Li-ion |
| Lift Height | 120 mm |
| Battery Type | Li-ion, 24V |
| Fork Length | 1,150-1,220mm |
| Turning Radius | 1,445mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD15
- CBD20
