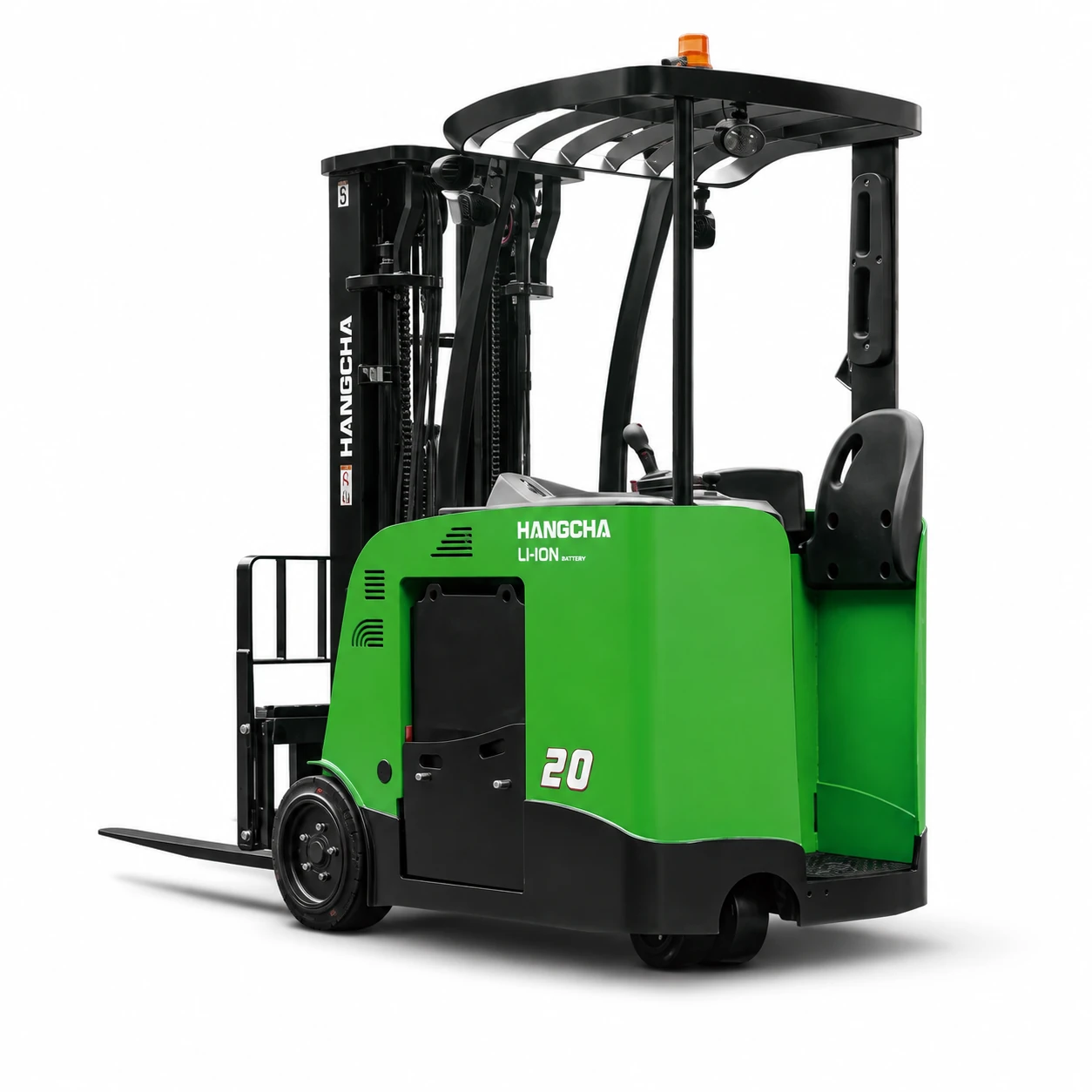

A Series Stand-Up 3-Wheel Electric Forklift 1.5-2.3 t
A 1.5-2.3 t stand-up 3-wheel electric forklift range for indoor warehouse operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
1.5-2.3 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series Stand-Up 3-Wheel Forklift Model
The A Series stand-up forklift is a 3-wheel truck from Hangcha's North American range, where the operator stands side-on to stack and retrieve in narrow aisles and at high lift heights. The models follow the Hangcha classes CPDS15 to CPDS23. Rated at a 600 mm (24 in) load centre, capacities are about 1,360-2,270 kg (3,000-5,000 lb).
- FBT15SLi and FBT18SLi (CPDS15-18): a 36V/684Ah lithium iron phosphate battery and a 1,367-1,415 mm turning radius.
- FBT20SLi and FBT23SLi (CPDS20-23): a larger 36V/906Ah battery for the heavier loads, turning in 1,488-1,585 mm.

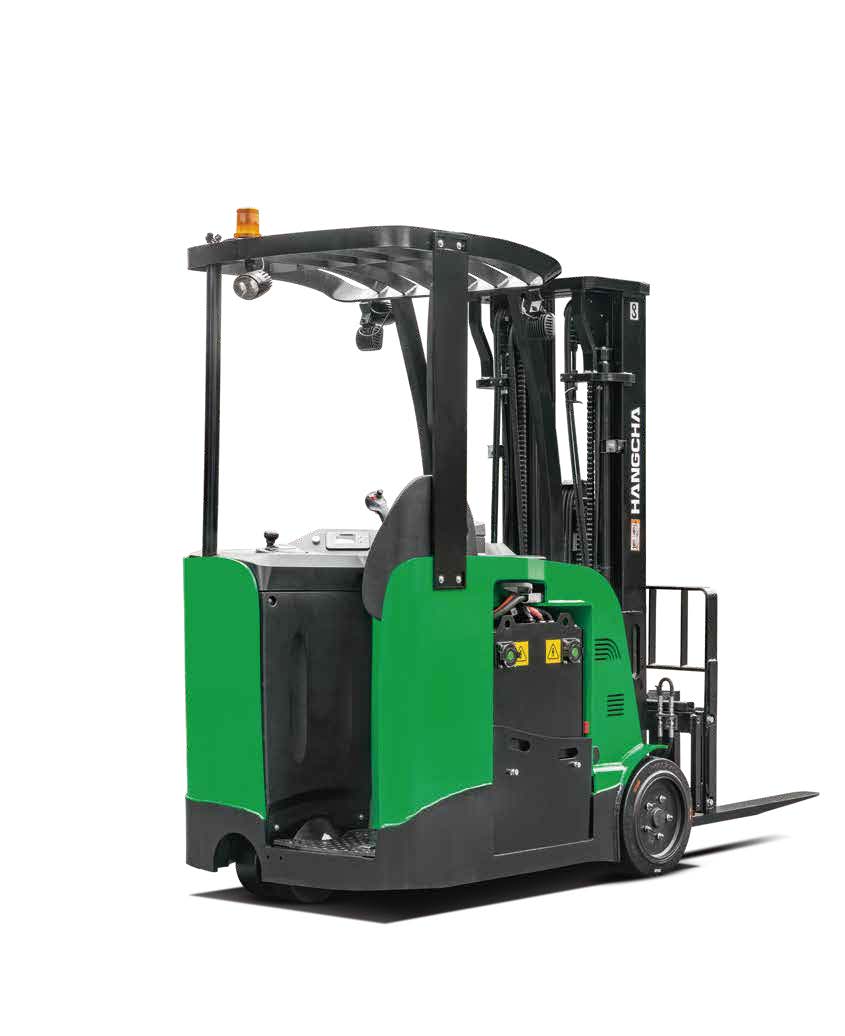

Every model is 1,082 mm wide, with dual AC front drive motors, cushion tyres and a top laden speed of 12.4 km/h that slows automatically in corners. Pedal sensing applies the brakes when the operator's foot leaves the pedal. Triplex and quad masts reach about 7 m, and the battery rolls out from the side and charges fully in 2 hours. For a seated 3-wheel truck on an 80V battery, see the XC Series 3-wheel electric forklift 1.3-2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

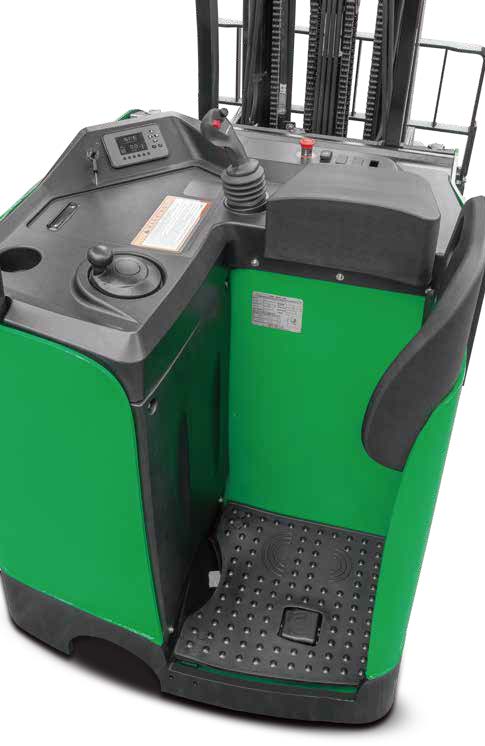

Stand-Up 3-Wheel Layout
A stand-up, 3-wheel layout with a 1,367-1,585 mm turning radius for tight aisles.

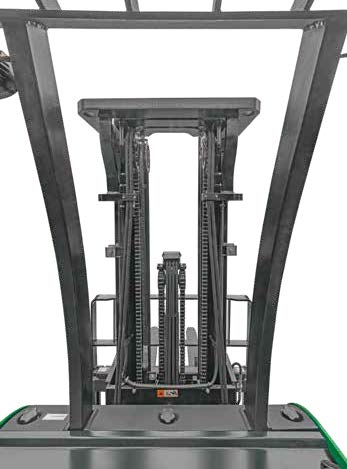

Lift Heights to 7 m
Lift heights of up to 7 m for stacking pallets into warehouse racking.
Full Specifications
| Capacity | 1.5-2.3 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 36V |
| Turning Radius | 1,367-1,585mm |
| Tyre Type | Cushion |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPDS15
- CPDS18
- CPDS20
- CPDS23
| Model | Rated capacity (600 mm / 24 in) | Battery | Turning radius | Aisle (40 x 48 in pallet) | Capacity at 7 m | Service weight |
|---|---|---|---|---|---|---|
| FBT15SLi (CPDS15) | 1,361 kg (3,000 lb) | 36V / 684Ah | 1,367 mm | 3,023 mm | 272 kg | 3,625 kg |
| FBT18SLi (CPDS18) | 1,588 kg (3,500 lb) | 36V / 684Ah | 1,415 mm | 3,071 mm | 544 kg | 3,835 kg |
| FBT20SLi (CPDS20) | 1,814 kg (4,000 lb) | 36V / 906Ah | 1,488 mm | 3,145 mm | 726 kg | 4,000 kg |
| FBT23SLi (CPDS23) | 2,268 kg (5,000 lb) | 36V / 906Ah | 1,585 mm | 3,241 mm | 968 kg | 4,491 kg |
Converted from the imperial figures in the HC Forklift America A Series 3-wheel stand-up brochure. Capacity at 7 m is with the 276 in (7,010 mm) triplex mast.
