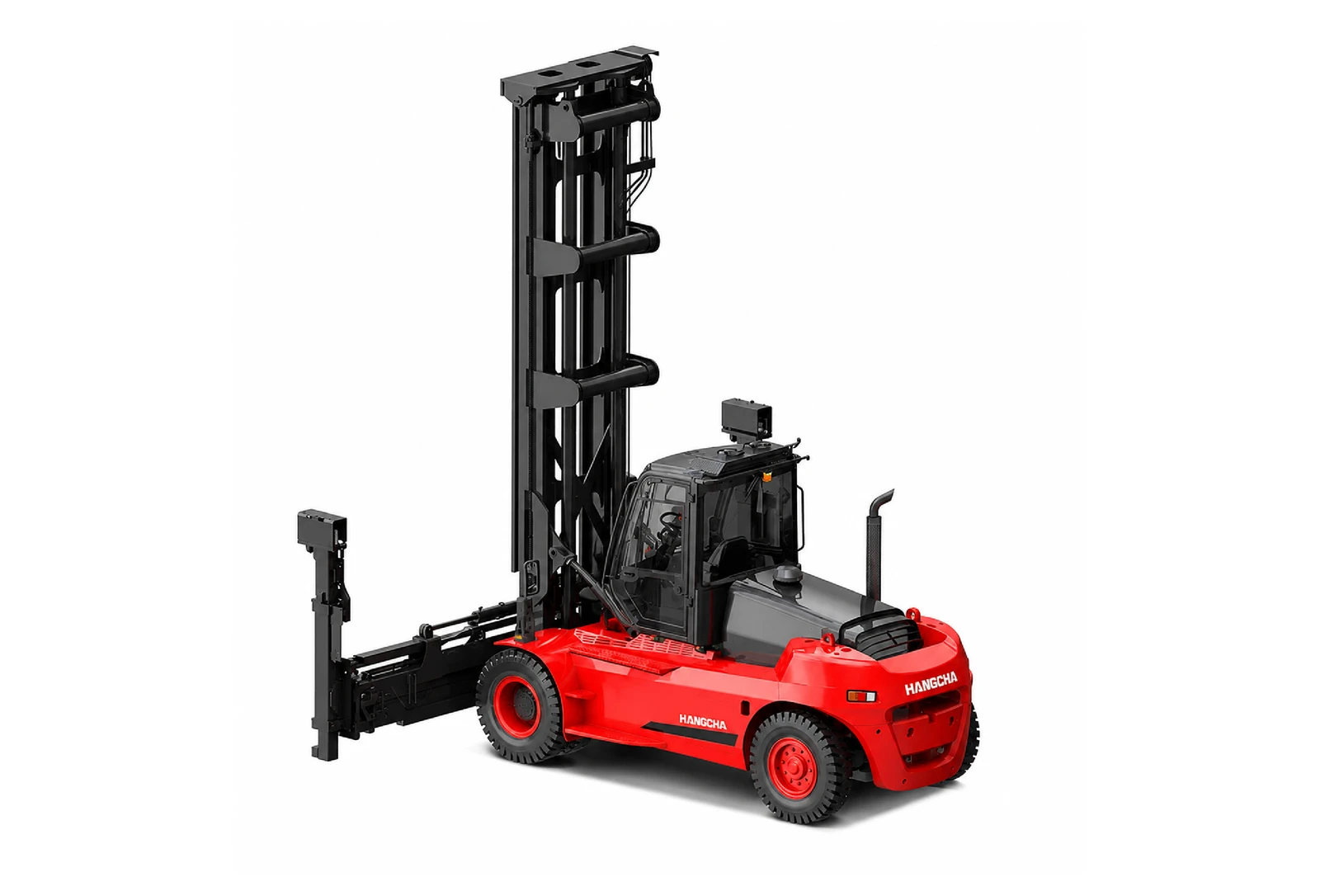

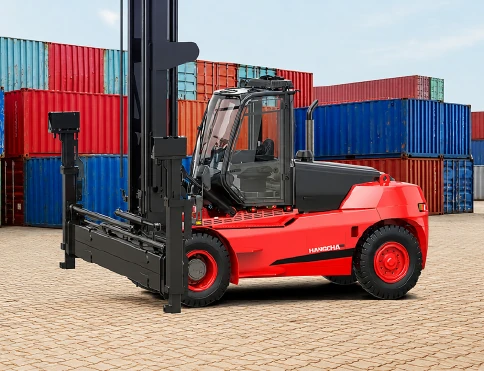

Hangcha X Series Empty Container Handler 3-4 Layer
A 6-7 t empty container handler configuration for outdoor container handling, with stacking heights of 3-4 containers where container weight, stacking height and working space guide model selection.
6-7 t
Capacity
Diesel
Power
3-4 containers high
Lift Height
Warranty & Support
24 Months / 4,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 3-4 Layer Empty Container Handler
The Hangcha X Series 3-4 layer empty container handler is the compact option for yards that stack empties 3 or 4 high. It handles 20 ft and 40 ft containers with a telescopic single-container spreader that sideshifts ±600 mm, and comes in two capacities with a choice of two diesel engines.
- H60EC-3: 6,000 kg, stacking 3 high with a 9,217 mm lift in the twistlocks and a 23,900 kg service weight.
- H70EC-4: 7,000 kg, stacking 4 high with a 12,217 mm lift and a 25,300 kg service weight.
- Engines: a Cummins B6.7 at 116 kW (EU Stage V) or a Yuchai YC07160 at 118 kW (China IV).
Both sizes are 2,580 mm wide with a 3,300 mm wheelbase and turn in 4,750 mm, against 6,000 mm for the 9 t model. An OKAMURA transmission gives a 29 km/h top speed, and laden gradeability is 20%. Wet disc brakes, a climate-controlled cab, a duplex mast, emergency descent and the FIMS fleet management system are standard. For stacking 7 or 8 high, see the X Series 9 t empty container handler.
Practical Features for Daily Operation
Diesel Engine Power
Yuchai or Cummins diesel engine options for outdoor container yard work.
Stacks 3-4 High
Handles empty 20 ft and 40 ft ISO containers in stacks of 3-4 high.
Sideshift Spreader
Single-container spreader with 600 mm sideshift each way for lining up with the stack.
Full Specifications
| Capacity | 6-7 t |
|---|---|
| Power | Diesel |
| Lift Height | 3-4 containers high |
| Container Compatibility | 20ft / 40ft ISO |
| Spreader Type | Single-container spreader; ±600mm sideshift |
| Power / Engine | Yuchai / Cummins diesel |
| Warranty | 24 Months / 4,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- H60EC
- H70EC
| Model | Capacity | Layers | Max lift in twistlocks | Engine | Engine power | Service weight |
|---|---|---|---|---|---|---|
| H60EC-3-XRH13B | 6,000 kg | 3 | 9,217 mm | Cummins B6.7 (Stage V) | 116 kW | 23,900 kg |
| H70EC-4-XRH13B | 7,000 kg | 4 | 12,217 mm | Cummins B6.7 (Stage V) | 116 kW | 25,300 kg |
| H60EC-3-XRG90B | 6,000 kg | 3 | 9,217 mm | Yuchai YC07160 (China IV) | 118 kW | 23,900 kg |
| H70EC-4-XRG90B | 7,000 kg | 4 | 12,217 mm | Yuchai YC07160 (China IV) | 118 kW | 25,300 kg |
Rated at a 1,220 mm load centre. Layer counts are the same for 8 ft 6 in and 9 ft 6 in containers. Figures from the Hangcha X Series 3/4 layer empty container handler brochure (2025).
