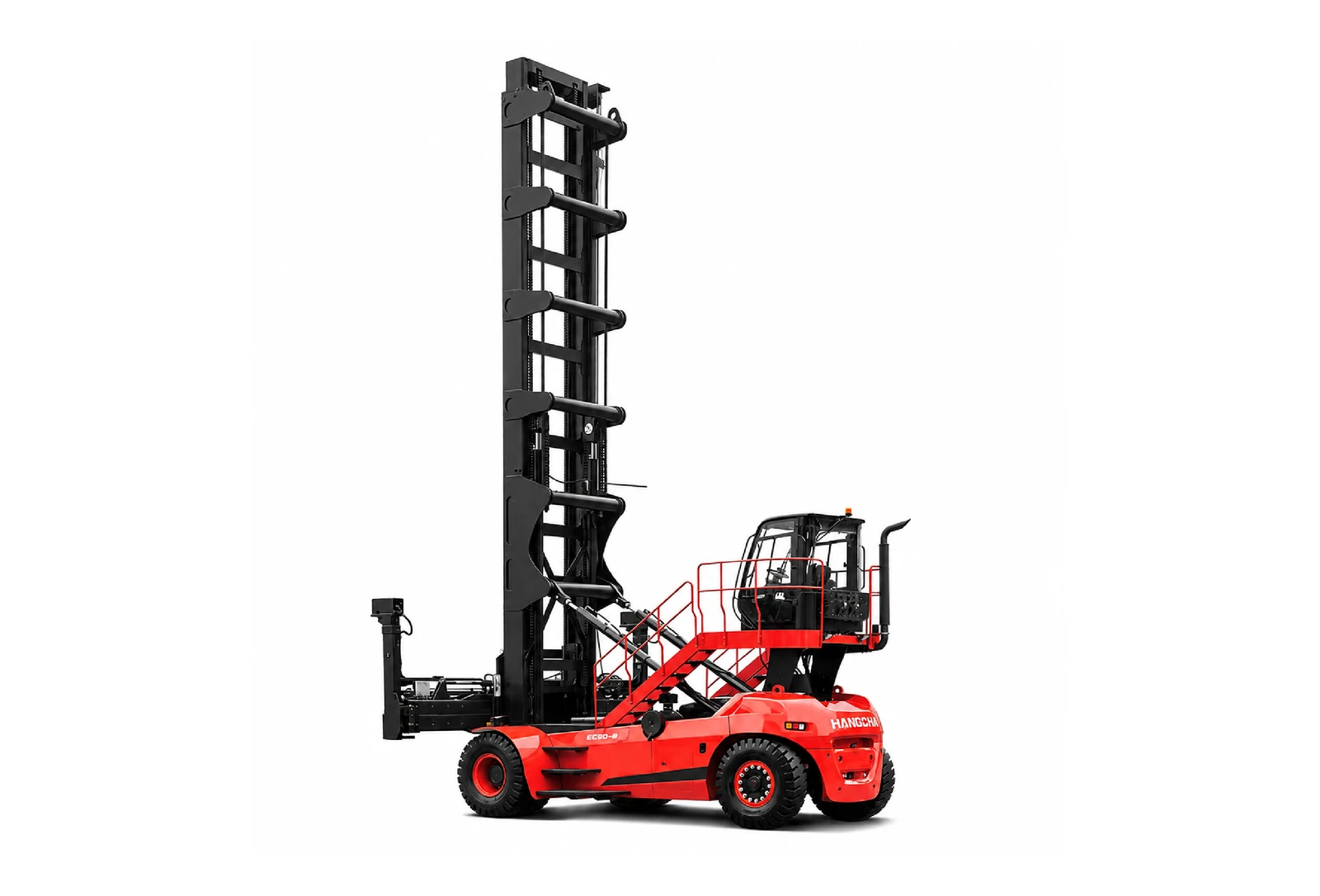

Hangcha X Series Empty Container Handler
A 9 t empty container handler in the Hangcha X Series for outdoor container handling, with stacking up to 8 containers high for 8 ft 6 in containers or 7 high for 9 ft 6 in containers.
9 t
Capacity
Volvo / Cummins diesel
Power
Up to 8 containers
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Empty Container Handler: Height and Engine
The Hangcha X Series 9 t empty container handler lifts 9,000 kg at a 1,220 mm load centre with a telescopic spreader for 20 ft and 40 ft containers. Each engine option comes in two mast heights, so the choice comes down to how high you stack and which emissions standard your site needs.
- H90EC-7: stacks 7 high with 8 ft 6 in containers or 6 high with 9 ft 6 in, with an 18,670 mm lift in the twistlocks and a 39,800 kg service weight.
- H90EC-8: stacks 8 high or 7 high, with a 21,270 mm lift and a 41,000 kg service weight.
- Engines: a Volvo TAD881VE at 185 kW (EU Stage V and Tier 4f in the XRH10-U version), a Volvo TAD851VE at 185 kW or a Cummins QSC8.3 at 179 kW (both Stage IIIA).
A DANA transmission with 3 forward and 3 reverse gears gives 26/28 km/h laden and unladen, and the truck turns in 6,000 mm with 22% laden gradeability. The spreader sideshifts ±600 mm, telescopes from 20 ft to 40 ft in under 12 seconds and handles normal and block stacking. Wet disc brakes, a climate-controlled cab, a duplex mast and the FIMS fleet management system are standard. For yards that stack only 3 or 4 high, see the X Series 3-4 layer empty container handler.
Practical Features for Daily Operation
Diesel Engine Power
Volvo or Cummins diesel engine options for outdoor container yard work.
Stacks Up to 8 High
Stacks empty containers up to 8 high (8 ft 6 in) or 7 high (9 ft 6 in).
Sideshift Spreader
Single-container spreader with 600 mm sideshift each way for 20 ft and 40 ft ISO containers.
Full Specifications
| Capacity | 9 t |
|---|---|
| Power | Volvo / Cummins diesel |
| Lift Height | Up to 8 containers |
| Container Compatibility | 20ft / 40ft ISO |
| Spreader Type | Single-container spreader; ±600mm sideshift |
| Power / Engine | Volvo / Cummins diesel |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- H90EC
| Model | Engine | Engine power | Layers (8'6" / 9'6") | Max lift in twistlocks | Service weight |
|---|---|---|---|---|---|
| H90EC-7-XRH10-U | Volvo TAD881VE (Stage V) | 185 kW | 7 / 6 | 18,670 mm | 39,800 kg |
| H90EC-8-XRH10-U | Volvo TAD881VE (Stage V) | 185 kW | 8 / 7 | 21,270 mm | 41,000 kg |
| H90EC-7-XRW83-N | Volvo TAD851VE (Stage IIIA) | 185 kW | 7 / 6 | 18,670 mm | 39,800 kg |
| H90EC-8-XRW83-N | Volvo TAD851VE (Stage IIIA) | 185 kW | 8 / 7 | 21,270 mm | 41,000 kg |
| H90EC-7-XRW36-U | Cummins QSC8.3 (Stage IIIA) | 179 kW | 7 / 6 | 18,670 mm | 39,800 kg |
| H90EC-8-XRW36-U | Cummins QSC8.3 (Stage IIIA) | 179 kW | 8 / 7 | 21,270 mm | 41,000 kg |
All models are rated at 9,000 kg at a 1,220 mm load centre. A GB IV version of the TAD881VE (XRH19-N) is also listed. Figures from the Hangcha X Series empty container handler brochure (2026).
