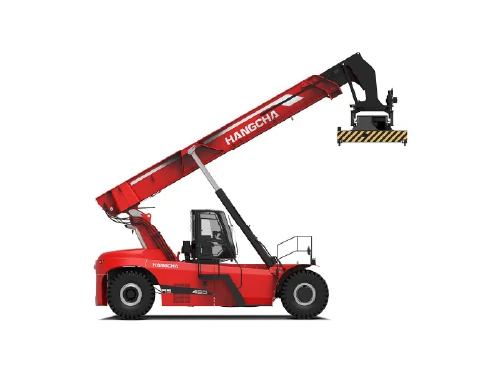

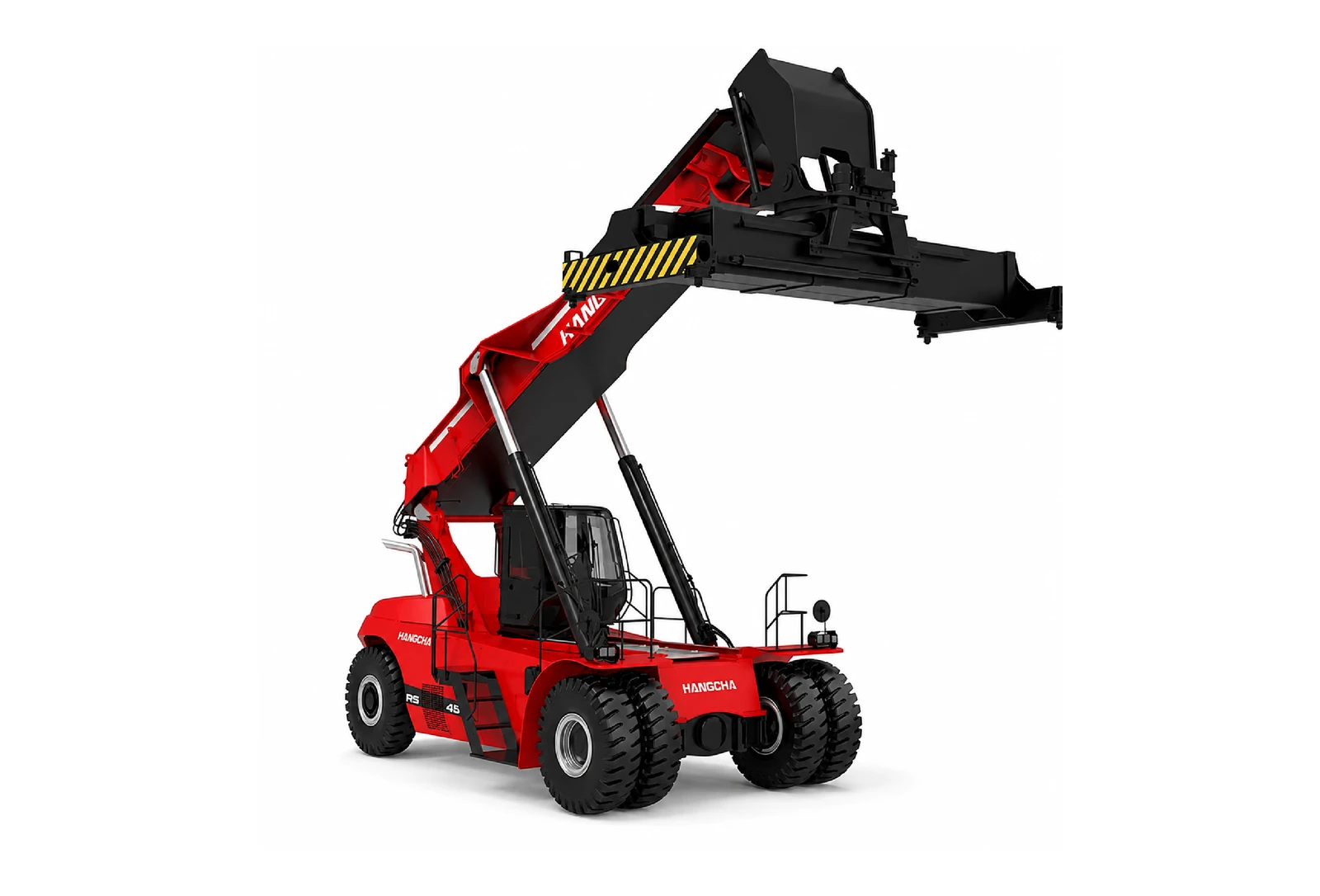

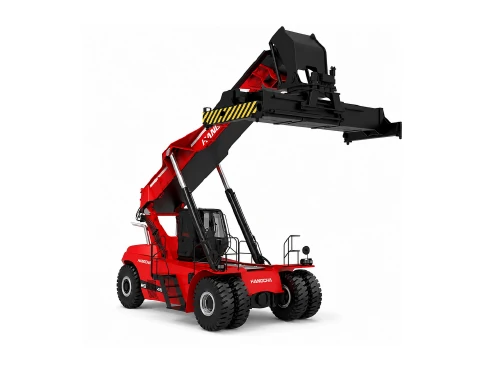

Hangcha X Series Reach Stacker 45T

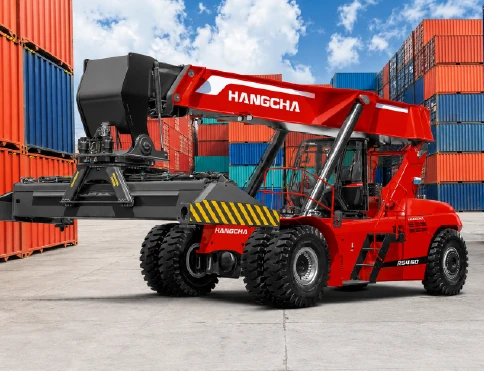

A 45 t reach stacker in the Hangcha X Series for outdoor container handling, with stacking up to 5 containers high where container weight, stacking height and working space guide model selection.
45 t
Capacity
Cummins / Volvo diesel
Power
Up to 5 containers
Lift Height
Warranty & Support
24 Months / 4,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 45 t Reach Stacker: Rows and Engine
The Hangcha X Series reach stacker lifts 45,000 kg in the first row, 31,000 kg in the second and 16,000 kg in the third, with an ELME 817 telescopic spreader for 20 ft and 40 ft ISO containers. The spreader rotates +105/-195 degrees and sideshifts ±800 mm, and the boom reaches a 15,120 mm lift height.
- Stacking: 5 high in the first row, 5 high (8 ft 6 in) or 4 high (9 ft 6 in) in the second, and 4 or 3 high in the third.
- Engines: a Volvo TAD1181VE at 265 kW (EU Stage V and Tier 4f), a Volvo TAD1151VE at 265 kW or a Cummins QSM11 at 250 kW (both Stage IIIA).
- Driveline: a DANA 36000 transmission and KESSLER heavy-duty drive axle with wet multi-disc brakes.
Travel speed is 20/22 km/h laden and unladen, laden gradeability is 20%, and the turning radius is 8,100 mm on 18.00-25 tyres. The truck is 8,123 mm long (11,625 mm including the boom) and 4,220 mm wide, with a 72,200-72,600 kg service weight and an 800 L fuel tank. A twistlock counter, variable hydraulic pump and higher lift speed at light loads are standard. For handling empty containers only, see the X Series 9 t empty container handler.
Practical Features for Daily Operation
Diesel Engine Power
Cummins or Volvo diesel engine options for heavy outdoor container handling.
Stacks Up to 5 High
Handles 20 ft and 40 ft ISO containers, stacking up to 5 high in the first row.
Telescopic Spreader
The telescopic spreader adjusts between 20 ft and 40 ft containers.
Full Specifications
| Capacity | 45 t |
|---|---|
| Power | Cummins / Volvo diesel |
| Lift Height | Up to 5 containers |
| Container Compatibility | 20ft / 40ft ISO |
| Spreader Type | Telescopic container spreader |
| Power / Engine | Cummins / Volvo diesel |
| Warranty | 24 Months / 4,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- RS4531CH
| Model | Engine | Engine power | Capacity (row 1 / 2 / 3) | Max lift | Service weight |
|---|---|---|---|---|---|
| RS4531CH-XRH17 | Volvo TAD1181VE (Stage V) | 265 kW | 45 / 31 / 16 t | 15,120 mm | 72,600 kg |
| RS4531CH-XRW86 | Volvo TAD1151VE (Stage IIIA) | 265 kW | 45 / 31 / 16 t | 15,120 mm | 72,200 kg |
| RS4531CH-XRW61 | Cummins QSM11 (Stage IIIA) | 250 kW | 45 / 31 / 16 t | 15,200 mm | 72,200 kg |
Load centres 1,965 / 3,815 / 6,315 mm for rows 1 / 2 / 3. Figures from the Hangcha X Series reach stacker brochure (2026).
