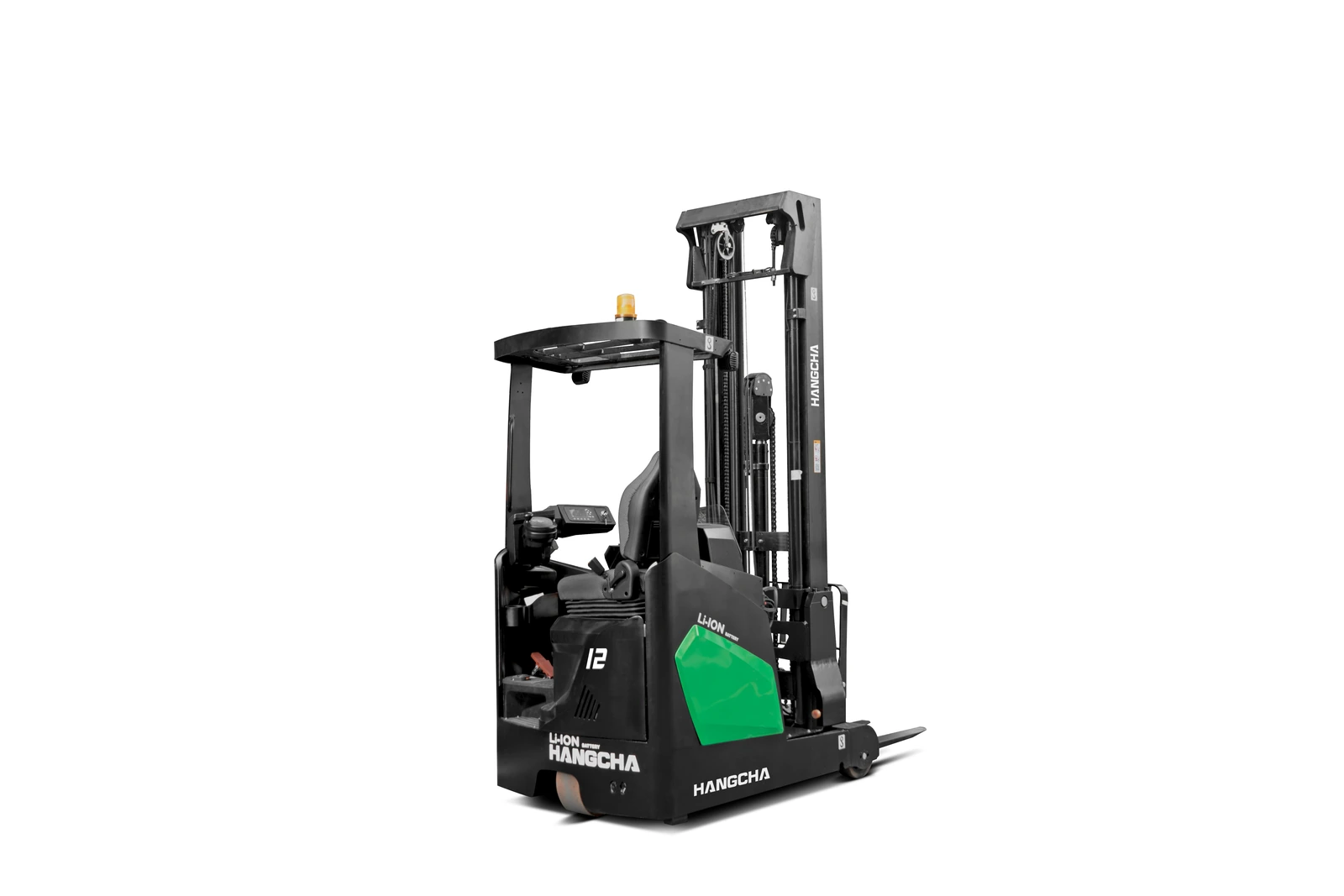

XC Series Reach Truck 1.0-1.2 t

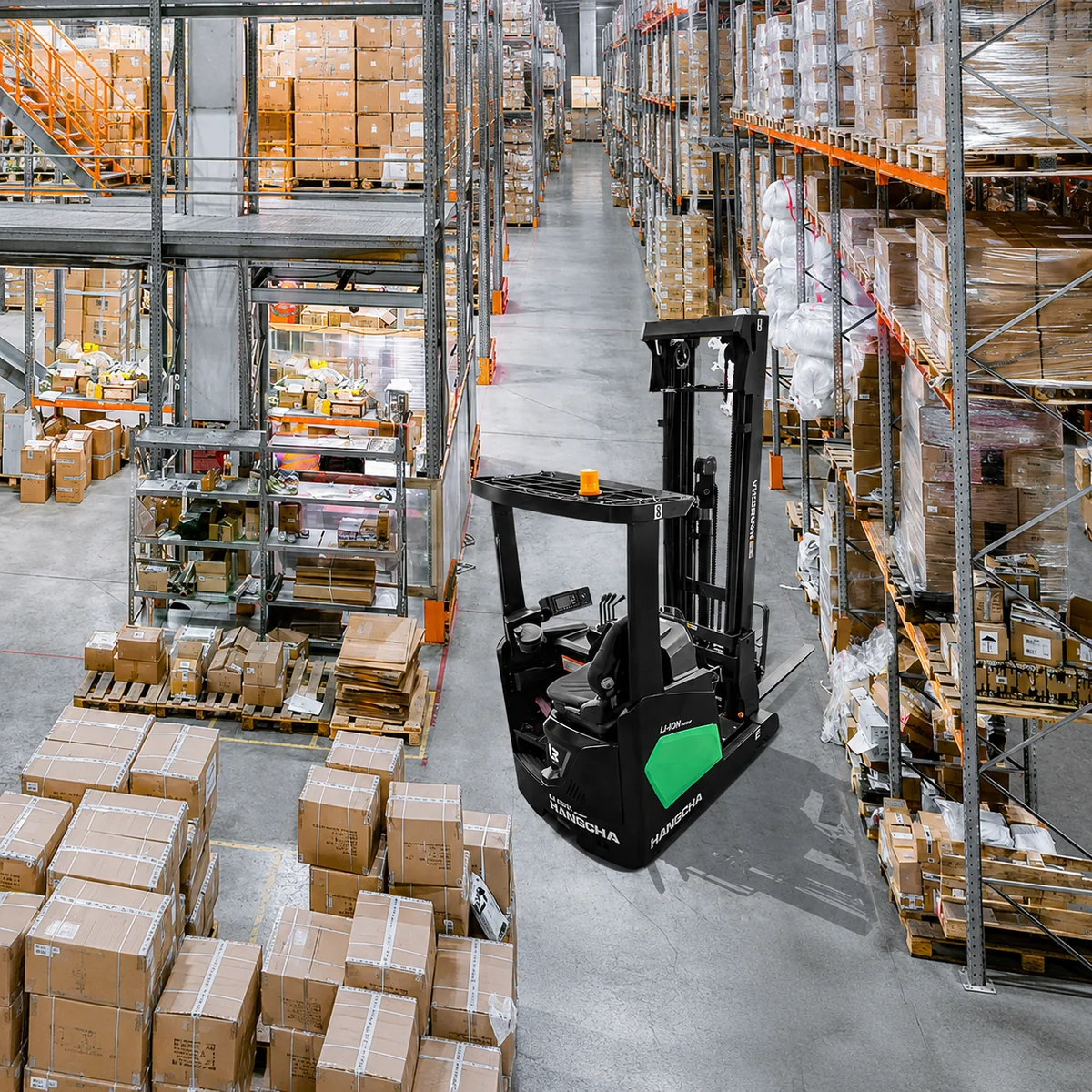

A 1.0-1.2 t reach truck range for indoor warehouse and narrow-aisle operations, with lift heights of up to 7 m for load handling where storage height, reach and aisle space need to be considered together.
1.0-1.2 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the CQD10 and CQD12

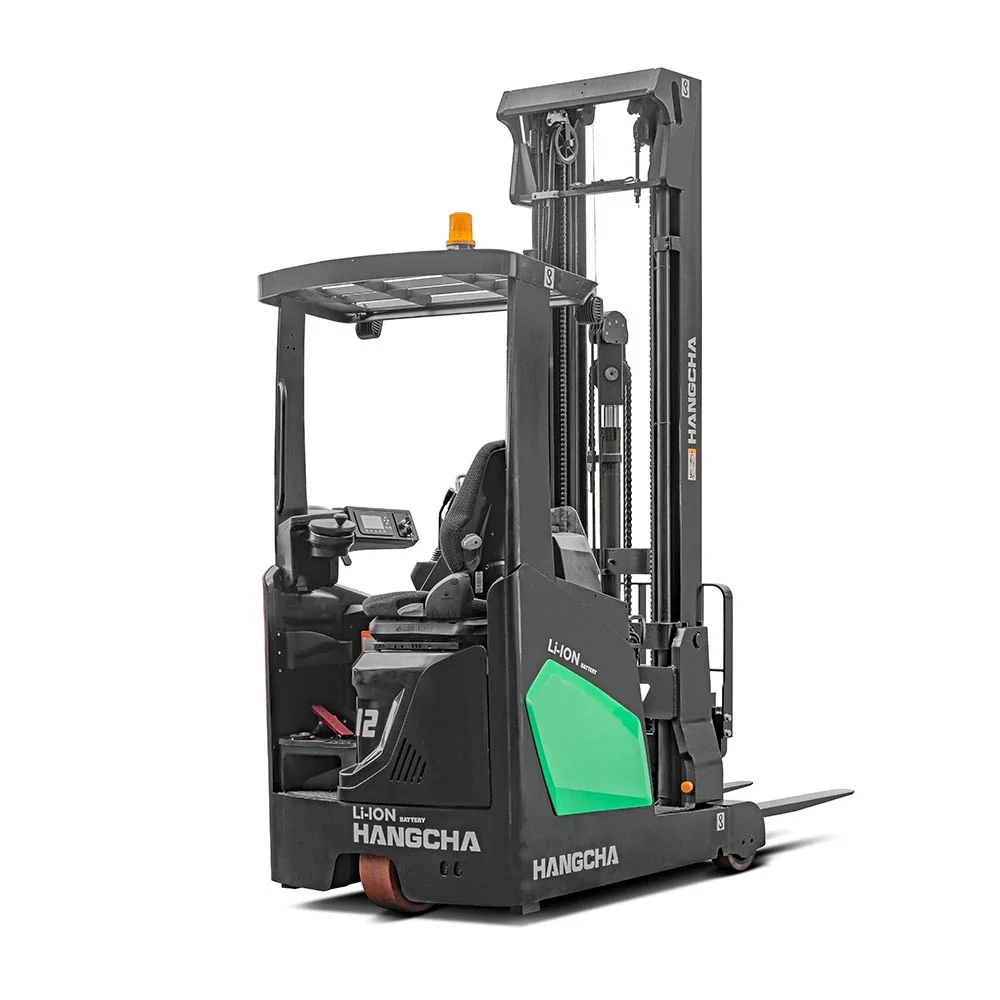

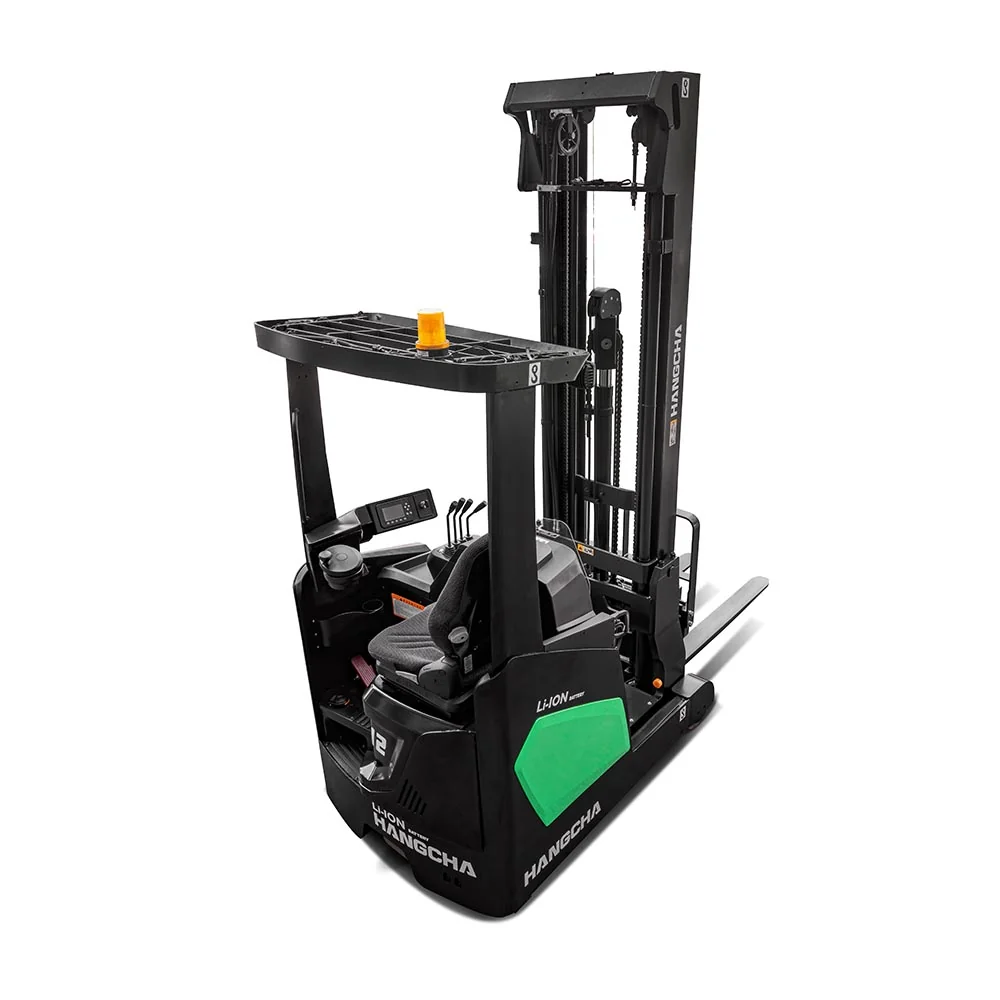

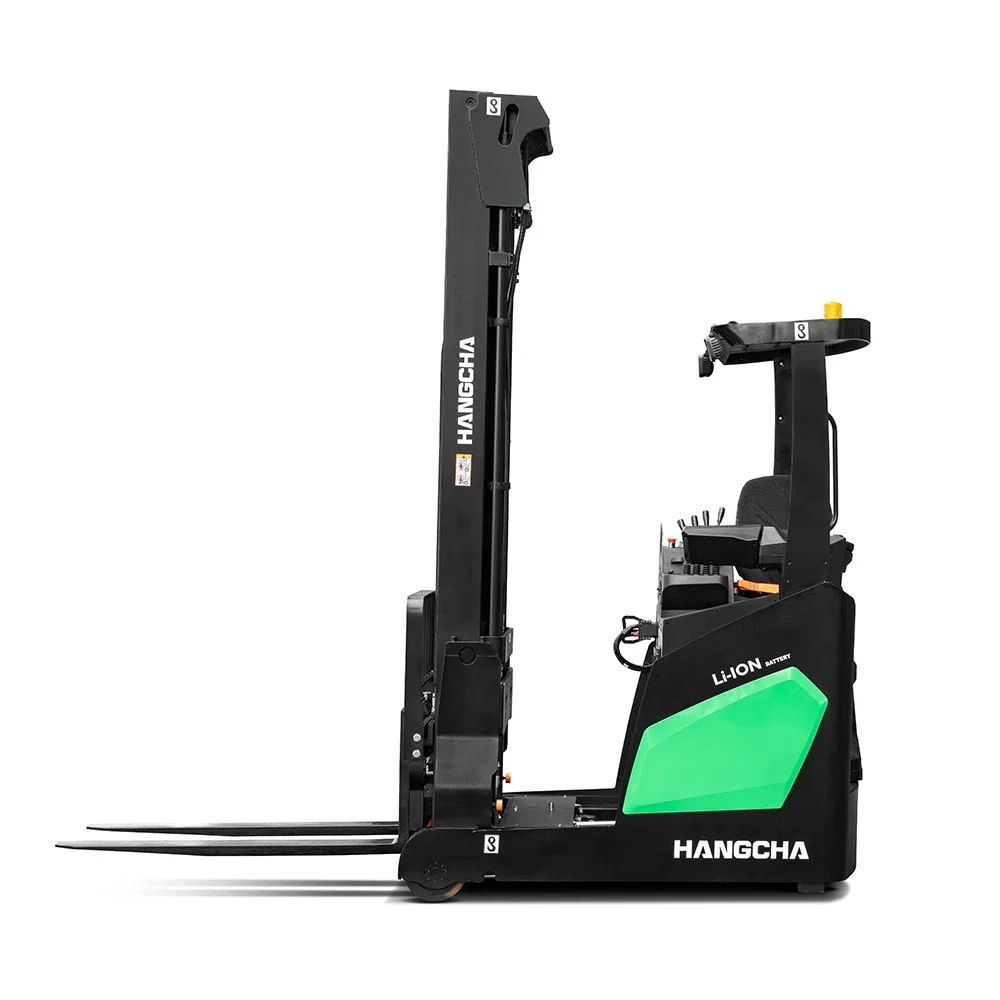

The XC 1.0-1.2 t range is a compact seated reach truck for lighter pallets in tight warehouse aisles. Both models run on an 80V CATL lithium battery and lift up to 7 m.
- CQD10 (1,000 kg): the smaller chassis, with a 1,515 mm turning radius, 482 mm reach and a 2,610 mm aisle for 1000 x 1200 mm pallets crossways. It holds 1,000 kg up to 6.5 m and 900 kg at 7 m.
- CQD12 (1,200 kg): a longer 567 mm reach and a 1,595 mm turning radius, needing a 2,627 mm aisle. It holds 1,200 kg up to 6.5 m and 1,100 kg at 7 m.
XC5 models use a mechanical control lever, while XC5D models add fingertip switch control. Both are rated at a 600 mm load centre, travel at 14 km/h and come with an 80V/125Ah battery as standard or 80V/228Ah as an option. For loads above 1.2 t or racking above 7 m, see the XC Series reach truck 1.4-2.5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Heights to 7 m
Reach masts lift up to 7 m for storing pallets on upper racking levels.
Reach Up to 567 mm
Reach distances of 482-567 mm and aisles from 2,610 mm for denser pallet storage.
Full Specifications
| Capacity | 1.0-1.2 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Minimum Aisle Width | From 2,610mm |
| Turning Radius | 1,515-1,595mm |
| Battery Type / Voltage | Li-ion, 80V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CQD10
- CQD12
| Model | Rated capacity | Max lift | Capacity at max lift | Reach | Aisle (1000 x 1200 crossways) | Turning radius |
|---|---|---|---|---|---|---|
| CQD10-XC5(D)-SI | 1,000 kg | 7,000 mm | 900 kg | 482 mm | 2,610 mm | 1,515 mm |
| CQD12-XC5(D)-SI | 1,200 kg | 7,000 mm | 1,100 kg | 567 mm | 2,627 mm | 1,595 mm |
Capacities at a 600 mm load centre. Reach and aisle figures with the standard 3,000 mm mast. Figures from the Hangcha XC Series reach truck 1.0-1.2 t brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Servicing & Repairs
Keep equipment reliable with scheduled service and breakdown support.
