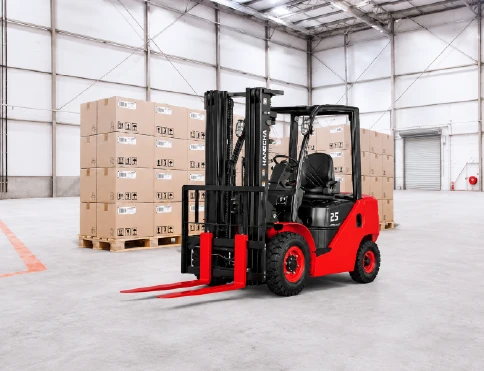

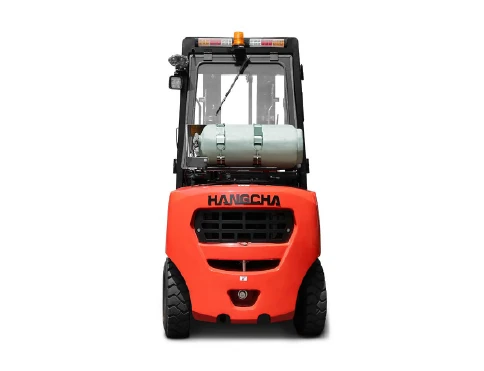

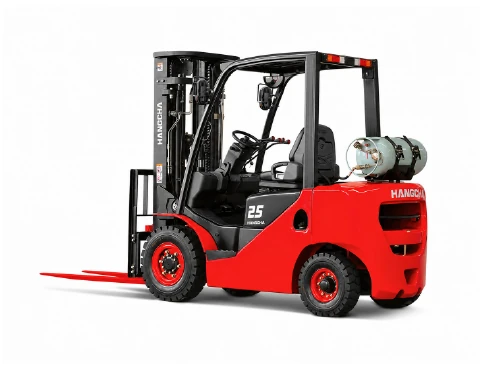

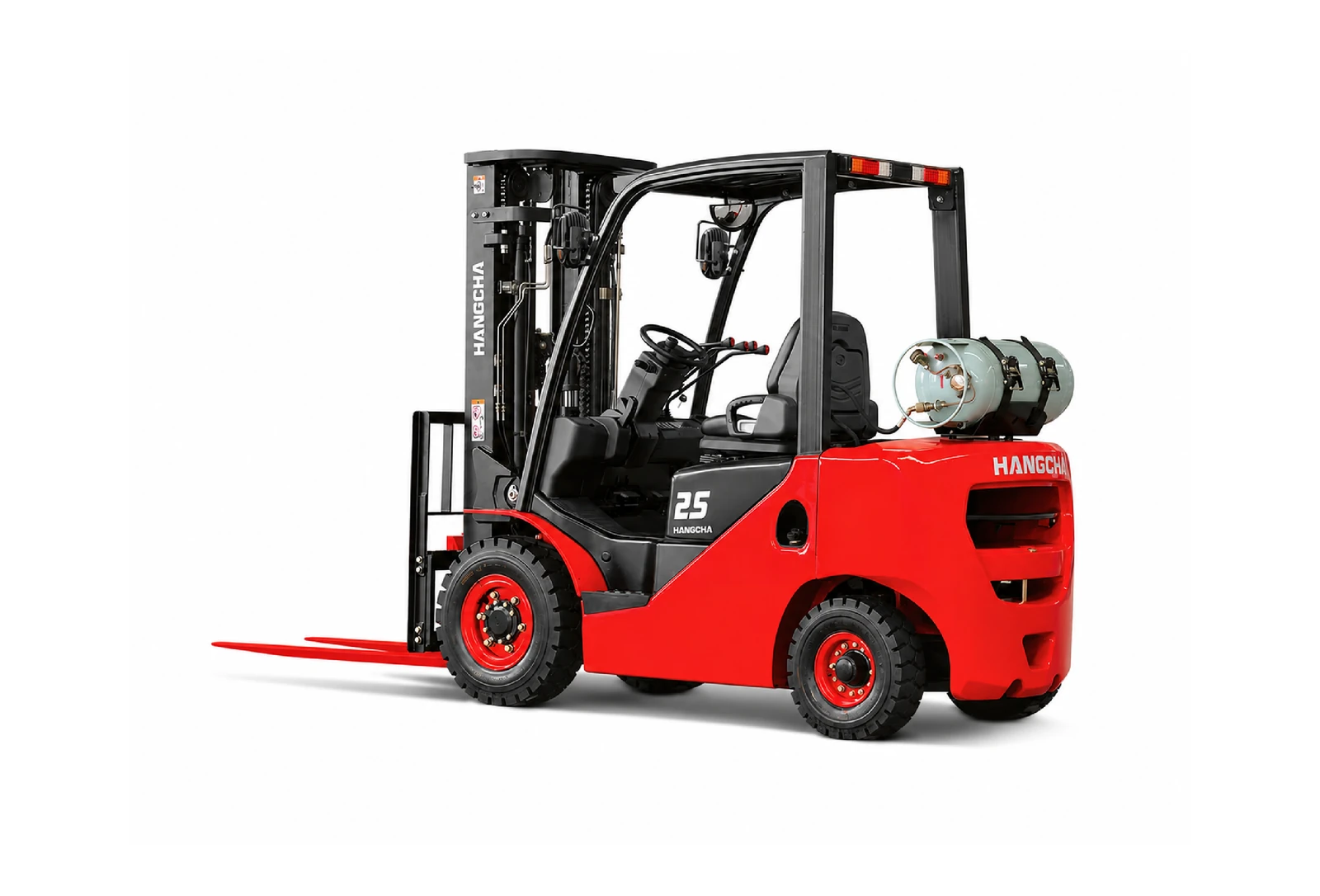

XF Series Diesel & LPG Forklift 1-3.5 t
A 1-3.5 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
1-3.5 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF Series 1-3.5 t Model and Engine
The XF Series 1-3.5 t is a pneumatic-tyre counterbalance forklift offered with diesel, LPG or dual-fuel LPG/petrol engines. Choose the capacity first, then the engine, because the engine sets the emission standard and how well the truck climbs.
- Diesel: the 1 t CPCD10 uses a Yanmar 4TNE92. From 1.5 t the standard diesel is a Xinchai 3E22 certified to EU Stage V, and the 1.5-1.75 t models are also offered with a Kubota V2607 that meets EU Stage V and EPA/CARB Tier 4 Final.
- LPG: GCT GK21 (1.5-1.75 t) and GK25 (2-3.5 t) engines, with 25-37% laden gradeability against 23-34% for the 1.5-3.5 t diesel versions.
- Dual fuel: CPQYD models run on LPG or petrol, with GCT engines certified to CARB SIP LSI-1, EPA Tier 2 and EU Stage V.
All models use a powershift transmission from Hangcha or Okamura and are rated at a 500 mm load centre, with a 3,000 mm standard lift and triplex masts up to 7 m. The operator presence system locks lifting, tilting and travel when the operator leaves the seat. For the newer design with a wet-brake drive axle, see the XF2 Series diesel and LPG forklift 1.5-3.5 t.
Practical Features for Daily Operation
Diesel or LPG Engine
GCT, Yanmar, Xinchai or Kubota engine options, running on diesel or LPG.
Colour Screen Display
A spacious operator area with a clear colour screen and optional electronic handbrake.
Raised Ground Clearance
Increased ground clearance and gradeability up to 31% for outdoor yard work.
Full Specifications
| Capacity | 1-3.5 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | GCT / YANMAR / XINCHAI / KUBOTA |
| Tyre Type | Pneumatic / solid tyre (model dependent) |
| Gradeability | Up to 40% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD10
- CPCD15
- CPCD18
- CPCD20
- CPCD25
- CPYD15
- CPYD18
- CPYD20
- CPYD25
- CPYD30
- CPCD30
- CPYD35
- CPCD35
- CPQD10
- CPQYD15
- CPQYD18
- CPQD15
- CPQD18
- CPQYD20
- CPQD20
- CPQD25
- CPQD30
- CPQYD25
- CPQYD30
- CPQYD35
- CPQD35
| Model | Capacity | Fuel options | Turning radius | Overall width | Fork length | Service weight |
|---|---|---|---|---|---|---|
| CPCD10 | 1,000 kg | Diesel | 1,965 mm | 1,080 mm | 920 mm | 2,510 kg |
| CPCD15 / CPYD15 / CPQYD15 | 1,500 kg | Diesel, LPG, LPG/petrol | 1,990 mm | 1,080 mm | 920 mm | 2,650 kg |
| CPCD18 / CPYD18 / CPQYD18 | 1,750 kg | Diesel, LPG, LPG/petrol | 2,015 mm | 1,080 mm | 920 mm | 2,760 kg |
| CPCD20 / CPYD20 / CPQYD20 | 2,000 kg | Diesel, LPG, LPG/petrol | 2,180 mm | 1,155 mm | 1,070 mm | 3,405 kg |
| CPCD25 / CPYD25 / CPQYD25 | 2,500 kg | Diesel, LPG, LPG/petrol | 2,245 mm | 1,155 mm | 1,070 mm | 3,765 kg |
| CPCD30 / CPYD30 / CPQYD30 | 3,000 kg | Diesel, LPG, LPG/petrol | 2,355 mm | 1,225 mm | 1,070 mm | 4,350 kg |
| CPCD35 / CPYD35 / CPQYD35 | 3,500 kg | Diesel, LPG, LPG/petrol | 2,415 mm | 1,225 mm | 1,070 mm | 4,705 kg |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha XF Series diesel / gasoline / LPG brochure.
