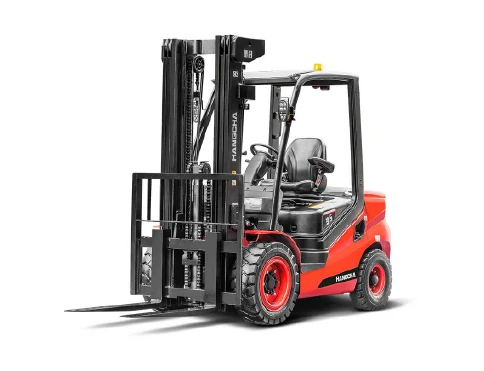

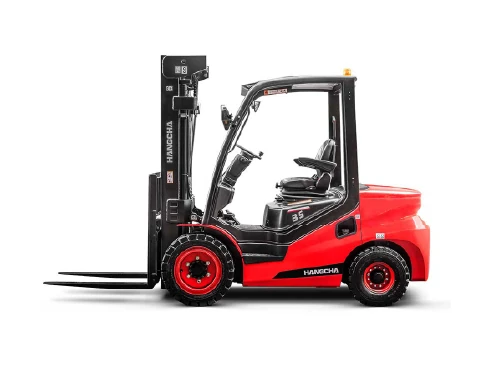

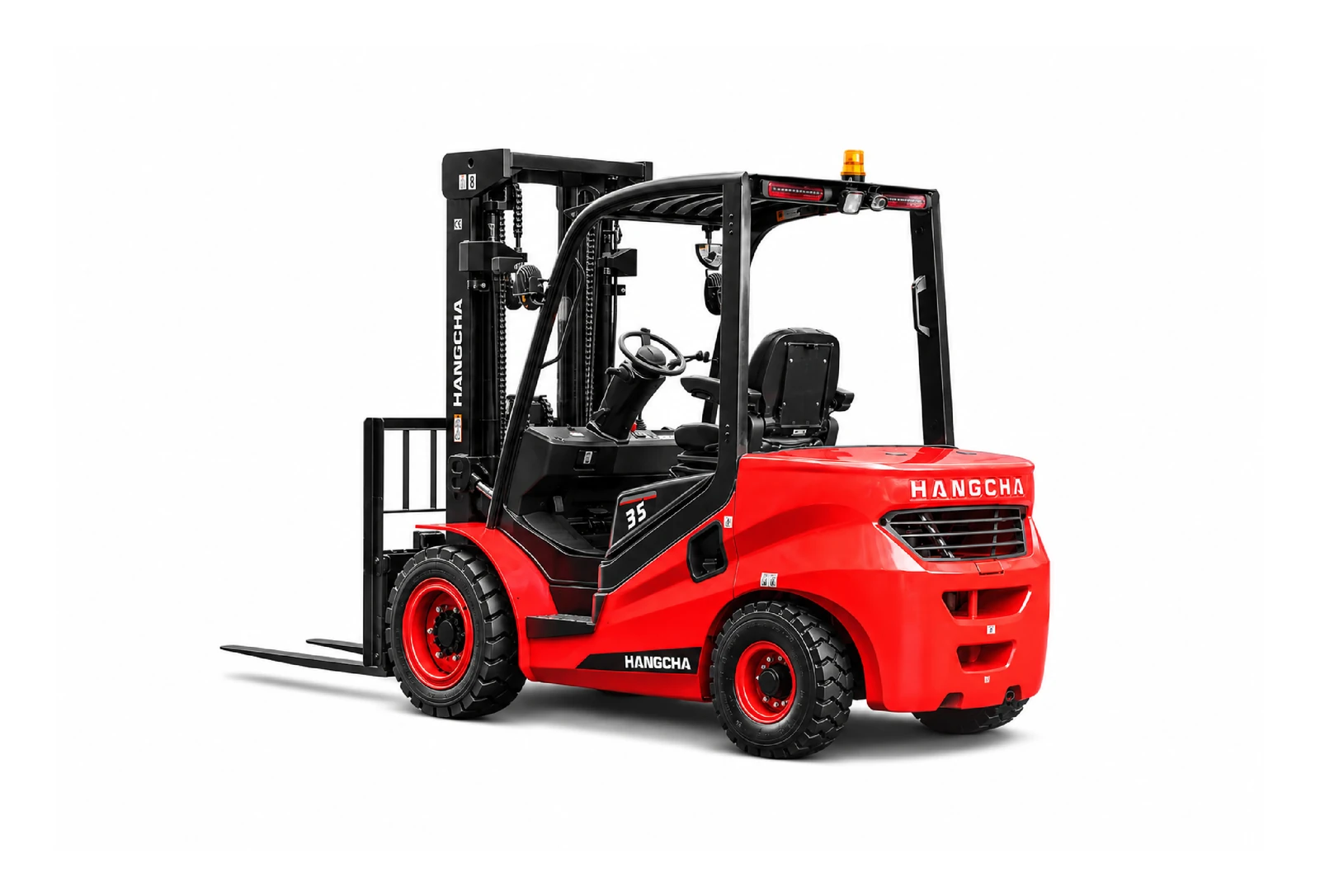

XF2 Series Diesel & LPG Forklift 1.5-3.5 t

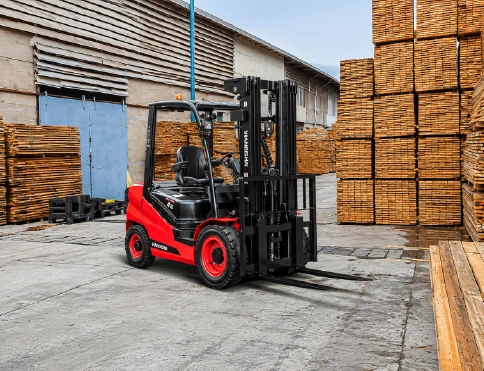

A 1.5-3.5 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
1.5-3.5 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF2 Series 1.5-3.5 t Model and Engine
The XF2 Series is Hangcha's newer 1.5-3.5 t IC counterbalance forklift, built around a wet-brake drive axle and three-stage vibration reduction. The specification table covers two engines: a Xinchai 3E22 diesel certified to EU Stage V, and GCT dual-fuel engines that run on LPG or petrol.
- 1.5-1.75 t: the most compact, with a 1,990-2,010 mm turning radius and 920 mm forks, on a 34 kW diesel or the GCT GK21 dual-fuel engine.
- 2-2.5 t: a 44.8 kW diesel with 32-36% laden gradeability, compared with 20-23% for the dual-fuel versions, so the diesel suits sites with steeper ramps.
- 3-3.5 t: the heaviest loads, needing just over 4 m of aisle for 1000 x 1200 mm pallets crossways.
LPG-only GCT and Kubota engines and a Kubota Stage V diesel are listed as options. The new steering axle turns the inner wheel to 82 degrees for tight spaces, and the brochure rates drive axle and gearbox life well beyond 10 years. Ratings are at a 500 mm load centre with a 3,000 mm standard lift and masts up to 7 m. For a 1 t model or LPG engines in the standard specification, see the XF Series diesel and LPG forklift 1-3.5 t.
Practical Features for Daily Operation
Diesel or LPG Engine
Xinchai, GCT or Kubota engine options, running on diesel or LPG.
Pneumatic or Solid Tyres
Pneumatic or solid tyres depending on model, to suit the ground on your site.
Gradeability to 36%
Gradeability of up to 36% for moving loads up ramps and sloped yard areas.
Full Specifications
| Capacity | 1.5-3.5 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | XINCHAI / GCT / KUBOTA |
| Tyre Type | Pneumatic / solid tyre (model dependent) |
| Gradeability | Up to 36% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD15
- CPCD18
- CPCD20
- CPCD25
- CPCD30
- CPCD35
- CPCJ20
- CPCJ30
- CPCJ35
- CPQYD15
- CPYD15
- CPQD15
- CPQYD18
- CPYD18
- CPQD18
- CPQYD20
- CPYD20
- CPQD20
- CPQYD25
- CPYD25
- CPQD25
- CPQYD30
- CPYD30
- CPQD30
- CPQYD35
- CPYD35
- CPQD35
| Model | Capacity | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability (diesel / dual fuel) | Laden travel (diesel / dual fuel) | Service weight |
|---|---|---|---|---|---|---|
| CPCD15 / CPQYD15 | 1,500 kg | 1,990 mm | 3,595 mm | 24% / 24% | 19 / 20 km/h | 2,750 kg |
| CPCD18 / CPQYD18 | 1,750 kg | 2,010 mm | 3,620 mm | 22% / 22% | 19 / 20 km/h | 2,900 kg |
| CPCD20 / CPQYD20 | 2,000 kg | 2,160 mm | 3,822.5 mm | 36% / 23% | 19 / 20 km/h | 3,455 kg |
| CPCD25 / CPQYD25 | 2,500 kg | 2,230 mm | 3,892.5 mm | 32% / 20% | 19 / 20 km/h | 3,815 kg |
| CPCD30 / CPQYD30 | 3,000 kg | 2,350 mm | 4,027.5 mm | 28% / 20% | 19 / 19 km/h | 4,400 kg |
| CPCD35 / CPQYD35 | 3,500 kg | 2,415 mm | 4,097.5 mm | 22% / 20% | 19 / 19 km/h | 4,755 kg |
CPCD models use the Xinchai 3E22 diesel; CPQYD models use GCT dual-fuel LPG/petrol engines. Rated at a 500 mm load centre. Figures from the Hangcha XF2 Series IC counterbalanced truck brochure.
