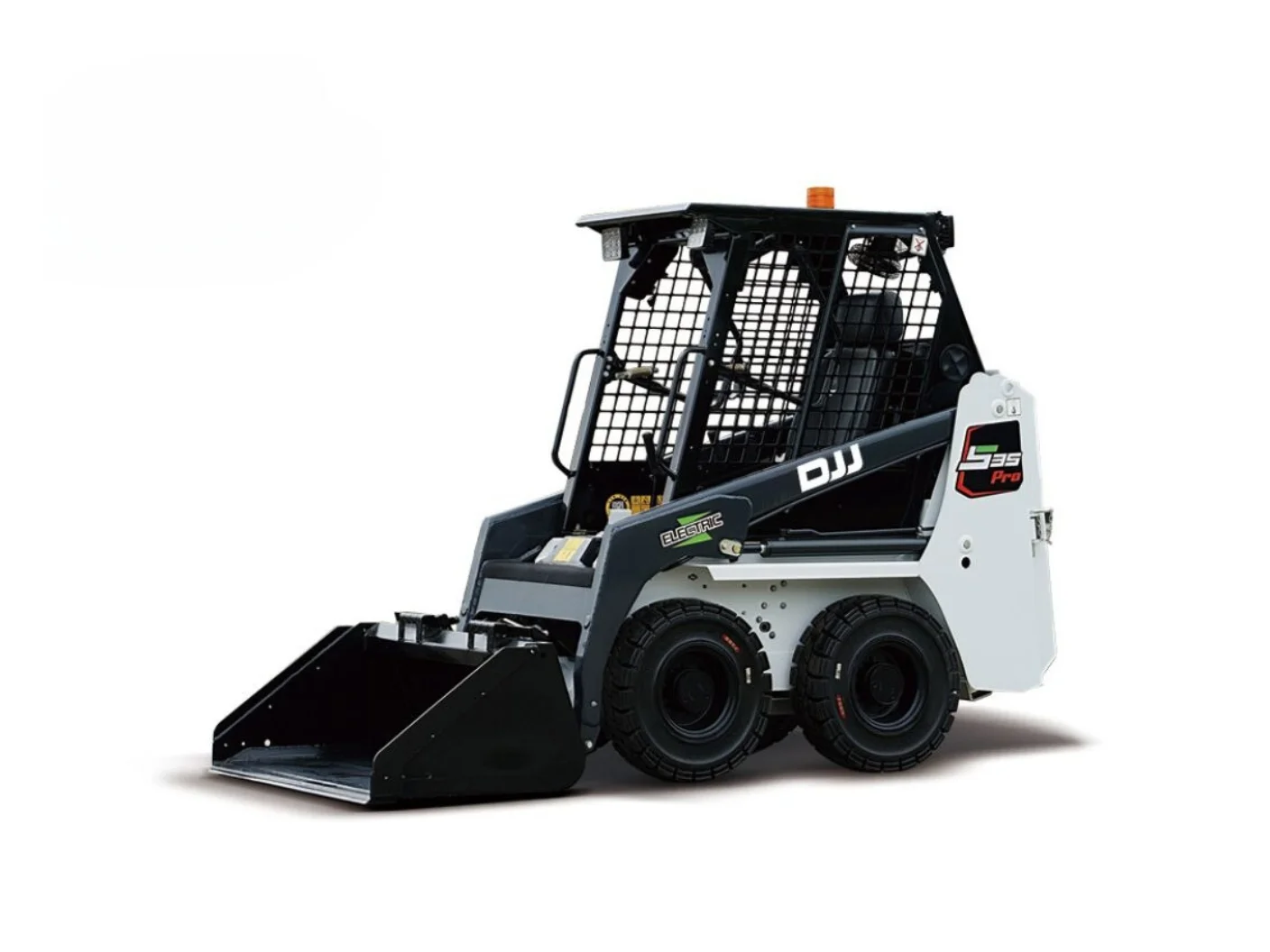

S35 Pro
Designed for indoor and outdoor applications, the Yuchai S35 Pro is an electric skid steer with a 1.5 tonne operating weight, 0.35 t operating capacity and 0.29 m³ bucket capacity.
0.35 t
Capacity
17 kW combined
Power
1.5 t
Weight
Warranty & Support
5 Years / 20,000 Hours Battery Warranty · 1 Year / 2,000 Hours Structural Components Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the S35 Pro and S35 Max
The Yuchai S35 Pro is a battery-electric skid steer loader with a lithium iron phosphate battery and wheel-side drive motors, sized for narrow corridors, aisles, alleys and low-height areas. This compact skid steer has a 350 kg rated operating capacity and a 0.29 m³ bucket.
- Battery: 21.29 kWh for 6-8 hours of work, charging from 30% to 80% in 1 hour.
- Against the S35 Max: the same power, hydraulics, bucket and dimensions; the Max adds a 29.17 kWh battery for 8-9 hours, at 80 kg more weight.
- Size: 959 mm wide and 1,815 mm to the top of the cab, with a 2,410 mm hinge pin height and a 1,850 mm dump height.
Power comes from a 9 kW motor plus four 2 kW wheel-side drive motors with automatic hold, for travel at up to 10.5 km/h. The hydraulics deliver 20.5 L/min at 33.7 MPa for loading, sweeping and crushing attachments. For longer shifts on one charge, see the S35 Max skid steer.
Practical Features for Daily Operation
Electric Power
Battery-electric drive with no engine exhaust, for indoor and outdoor work.
Wheel-Side Motors
A motor at each wheel replaces the chain drive, with fewer parts to wear.
Auto-Hold on Slopes
Holds the machine in place on inclines when the operator stops.
Full Specifications
| Capacity | 0.35 t |
|---|---|
| Power | 17 kW combined |
| Weight | 1.5 t |
| Bucket Capacity | 0.29 m³ |
| Max Operating Height | 3,245 mm |
| Bucket Breakout Force | 8 kN |
| Warranty | 5 Years / 20,000 Hours Battery Warranty · 1 Year / 2,000 Hours Structural Components Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- S35 Pro
| Model | Battery | Run time | Operating weight | Tipping load | Rated operating capacity | Fast charge |
|---|---|---|---|---|---|---|
| S35 Pro | 21.29 kWh lithium | 6-8 h | 1,540 kg | 700 kg | 350 kg | 30-80% in 1 h |
| S35 Max | 29.17 kWh lithium | 8-9 h | 1,620 kg | 730 kg | 350 kg | 30-80% in 1 h |
Both models share the same motors, hydraulics, bucket and dimensions. Figures from the S35 Pro / S35 Max electric skid steer brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Related Equipment
HS Series Rough Terrain Scissor Lift
X Series 4-Wheel Electric Forklift 1-3.5 t
S35 Max
Talk to DJJ About This Product
Request a quote, brochure clarification or configuration advice for this model. Pricing is confirmed at quotation stage. Every enquiry is handled with your application in mind.
